| Parameter | Value |
|---|---|

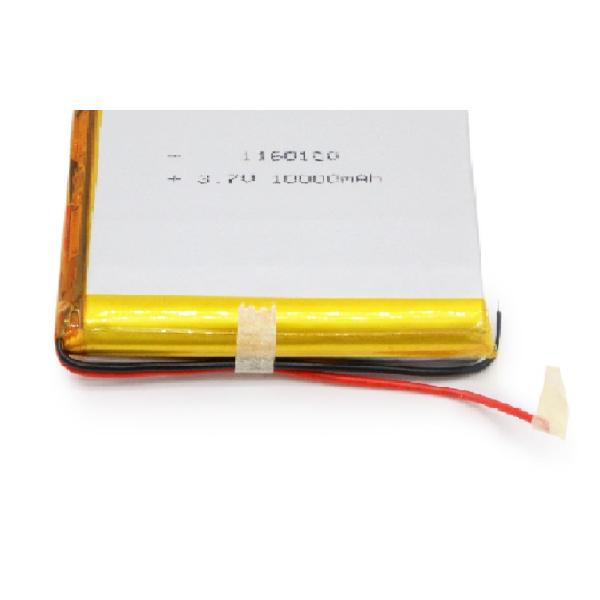

| Battery model | 1160110 |
| Nominal voltage | 3.7V |
| Minimum capacity | 10Ah (0.2C discharge) |
| Charging voltage | 4.2V |
| Discharging cut-off voltage | 2.75V |
| Standard charging | 0.2C / 4.2V |
| Max charging | 1.0C / 4.2V |
| Standard discharging | 0.2C / 2.75V |
| Max discharging - continuous | 1.0C / 2.75V |
| Max discharging - non-continuous | 2.0C / 2.75V |
| Shipment voltage | ≥3.85V |
| Operating temperature - Charging | 0°C ~ 45°C |
| Operating temperature - Discharging | -20°C ~ 60°C |
| Storage (-10℃~25℃) | 12 months ≥85% |
| Storage (-10℃ ~45℃) | 6 months ≥85% |
| Storage (-10℃~55℃) | 1 month ≥90% |
| Recommended storage temperature | 20±5℃ |
| Visual Inspection | No remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage on cell surface |
| Reference standard | GB/T 18287-2013, IEC62133 |
Experienced R&D team with over 60 engineers and advanced equipment for OEM and ODM requirements.
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been providing various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery packs since 2001.

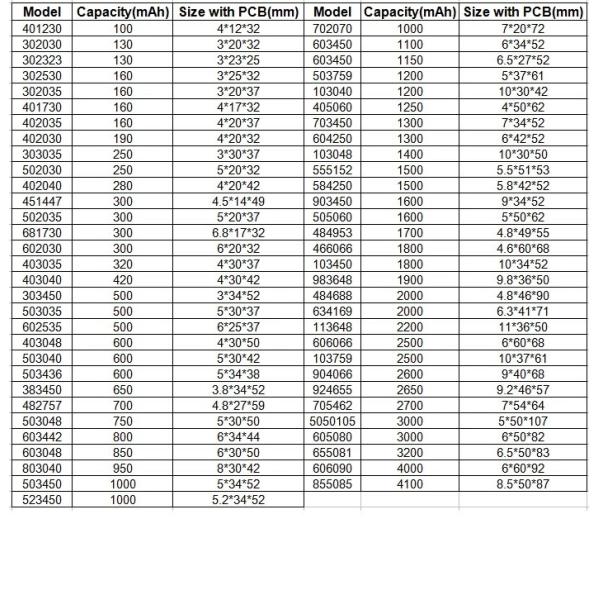

| Model | Cell Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1200mAh |
| 656090 | 6.5*60*90mm | 6.5*60*92.5mm | 3.7V 5000mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| 855465 | 8.5*54*65mm | 8.5*54*65mm | 3.7V 4000mAh |
| 863040 | 8.6*30*40mm | 8.8*30*42.5mm | 3.7V 1000mAh |
| 904060 | 9*40*60mm | 9.2*40*62.5mm | 3.7V 2500mAh |
| 883760 | 8.8*37*60mm | 9*57*51.6mm | 3.7V 2000mAh |
| 103048 | 10.2*30*48mm | 10.2*30*50.5mm | 3.7V 1500mAh |
| 103040 | 10.2*30*40mm | 10.2*30*42.5mm | 3.7V 1200mAh |
| 114261 | 11*42*61mm | 11*42*63.5mm | 3.7V 3400mAh |
| 122773 | 12*27*73mm | 12*27*75.5mm | 3.7V 2400mAh |
