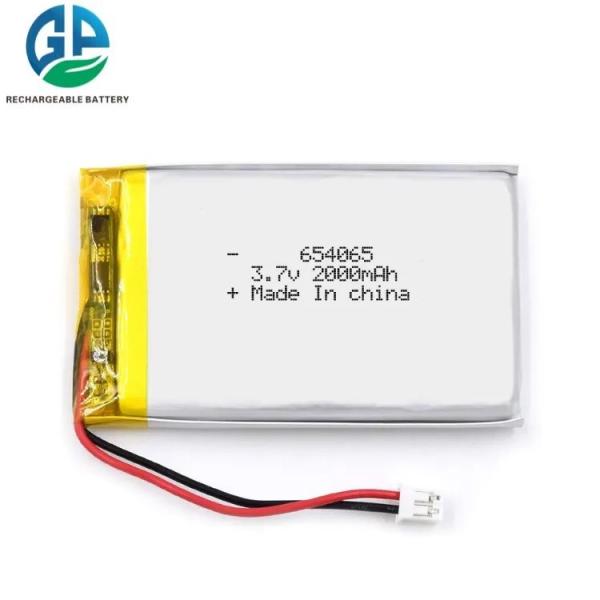

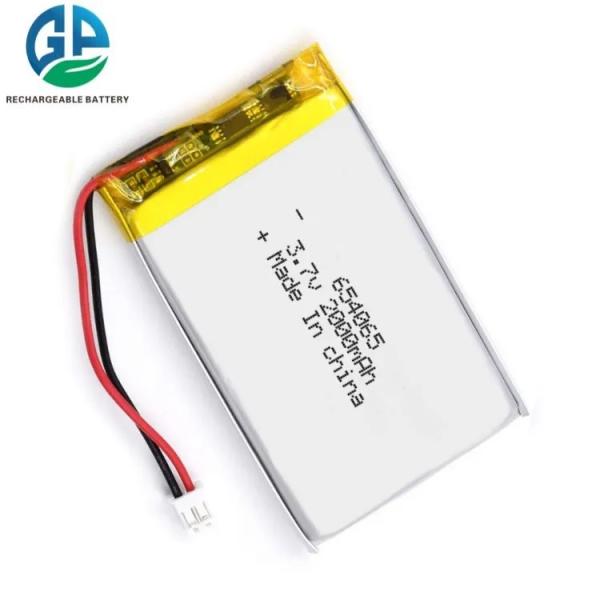

KC 3.7V Lipo 654065 3.7V 2000mAh 7.4Wh Lithium Ion Battery Pack Rechargeable Lithium Ion Polymer Battery Pack 3.7V
| Product Name | Rechargeable batteries DTP654065 3.7V 2000mAh 7.4Wh lithium ion battery pack |
|---|---|
| Model | 654065 |
| Cell Type | Lithium polymer battery |
| Nominal Capacity | 2000mAh (Customizable battery capacity) |
| Maximum Cutoff Voltage | 3.7V |
| Maximum Discharge Current | 0.2C/1C |
| Connector Type | JST / Molex (Selectable according to demand) |
| Operating Temperature | 10ºC - 60ºC |
| Battery Internal Resistance | 35Ω to 50Ω |
| Product Certificates | ISO9001, CE, RoHS, UL, IEC, CB, KC |
| Battery Life | 500 cycles |
| Packaging & Shipping | Industrial carton packaging meeting international air and shipping standards |
| Manufacturer Supply | Yes, DATA POWER is a lithium battery manufacturer with 13 years of production experience |
| Sample Testing | Yes |
| Production Cycle | 2-3 weeks after ordering (fastest delivery: 3 days) |
| Application Fields | Digital products, Medical Facilities, GPS, MP3/MP4/Mobile phone, etc. |
Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity range from 20mAh to 5000mAh to meet various application requirements.
| Model | Dimension | With PCM Dimension | Capacity |
|---|---|---|---|
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 | 4.8*34*50mm | 5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7V 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.
Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have been offering various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery packs since 2001.
