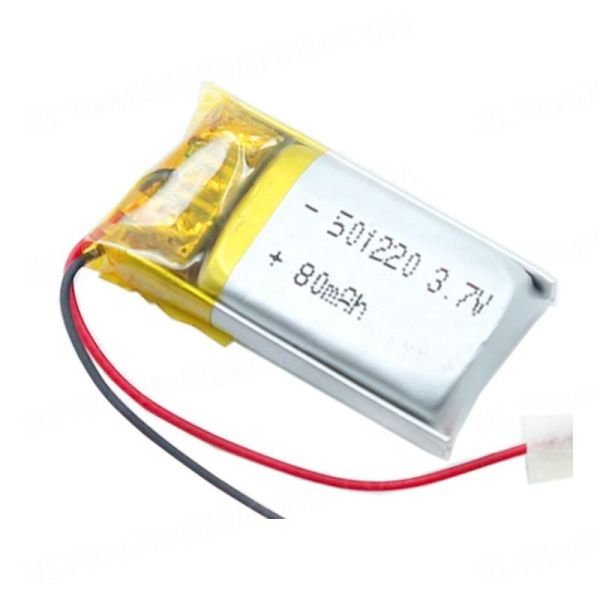

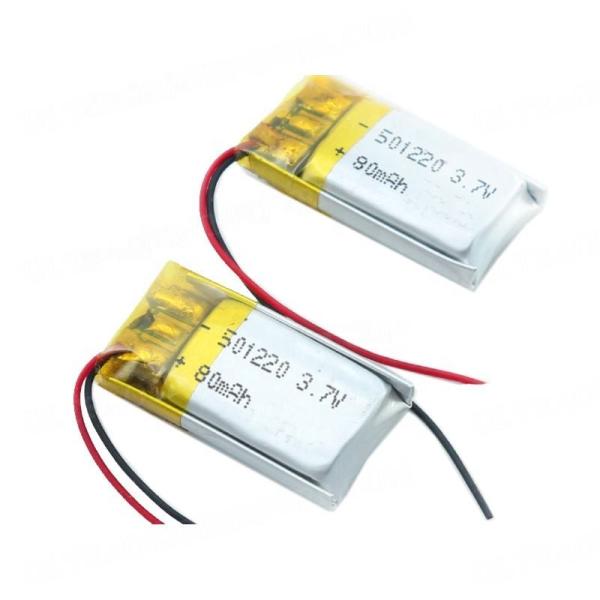

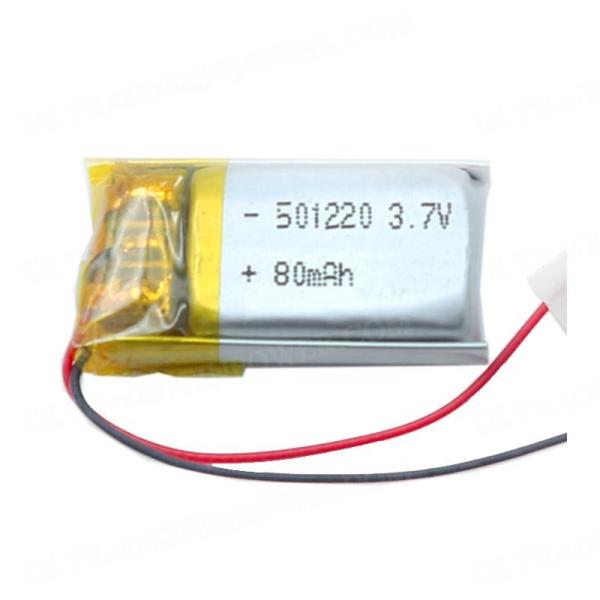

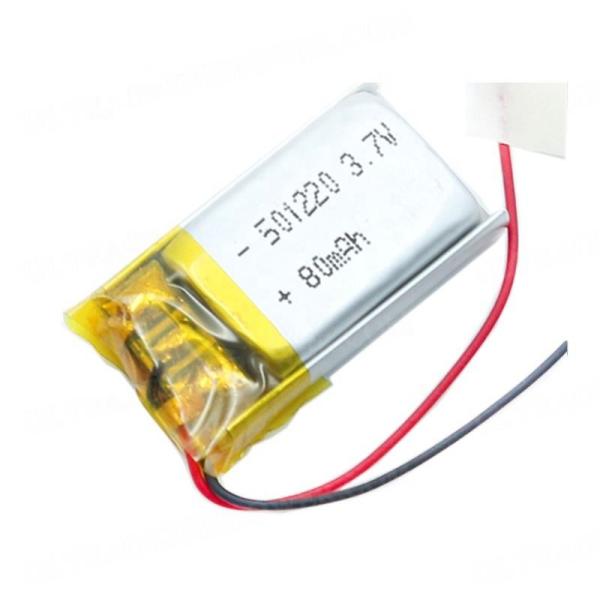

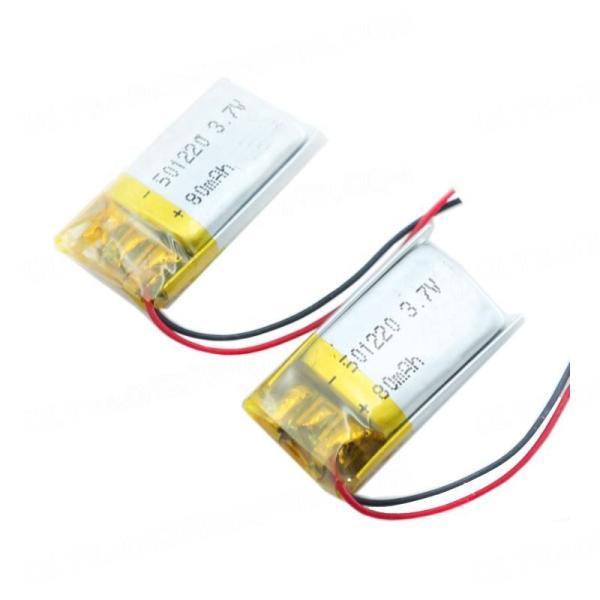

80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
Specifications
Brand Name :
GPE
Model Number :
LP501220
Certification :
UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
5000pieces
Payment Terms :
T/T
Supply Ability :
50'000Pieces daily
Delivery Time :
within 15days
Packaging Details :
Bulk packing
Nominal Voltage :
3.7V
Nominal Capacity :
80mAh
Max Discharge Current :
2C (≤5min)
Charge Temperature :
0℃~+45℃
Discharge Temperature :
-20℃~+60℃
Dimensions :
5*12*20MM
Description
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector
Product Overview

Small size mini Lithium Polymer Battery with 3.7V 501220 dimensions and 80mAh capacity.

ItemParameters
Nominal Voltage3.7V
Nominal Capacity80mAh
DischargeNormal current: 0.5C
Max continuous current: 2C (≤5min)
Cut-off voltage: 2.75V
ChargeNormal charge current: 0.2C
Charge mode: CC/CV with professional charger
Cut-off voltage: 4.2±0.1V
Inner Resistance≤80mΩ (Discharging Inner resistance)
Charge Temperature0℃~+45℃
When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection.
Discharge Temperature-20℃~+60℃
Humidity RangeRH≤85%
Protection FunctionOver charge protection, Over discharge protection, Over current protection, Balanced function
Weight5±0.1g
Dimension(L*W*H)5*12*20MM or Customized
Cycle LifeStandard charge at 0.2C(A), rest 0.5~1 h, discharge at 0.2C to cut off voltage, rest 0.5~1h, repeat the above steps until 500 cycles (capacity retention rate≥80%)
Battery Specifications
Battery specificationCharge currentStandard Charging: 0.5C (40mA)
Rapid charge: 1.0C(80mA)
Charging methodCharge with constant current 0.5c to 4.2V, then charge with constant voltage 4.2v until charge current is less than 0.01C
Standard discharge current0.2C(16mAh)
Max. discharge current1C(80mA)
Discharge cut-off voltage3.0v
Operating environmentCharging: 10℃~45℃
Discharging: -10℃~60℃
Storage temperature-10℃~45℃
Cell WeightApprox: 3g
Battery recycle time500 times
Warranty12 months
Other Hot-Sale Lithium Polymer Battery Models

Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity range from 20mAh to 5000mAh to meet various application requirements.

ModelCell DimensionWith PCM DimensionCapacity
3020253.0*20*25mm3.2*21*27.5mm3.7V 100mAh
3025303.0*25*30mm3.2*26*32.5mm3.7V 180mAh
4018244.0*18*24mm4.2*19*26.5mm3.7V 180mAh
4025254.0*25*25mm4.2*26*27.5mm3.7V 200mAh
4834504.8*34*50mm5.0*35*52.5mm3.7V 850mAh
5020305.0*20*30mm5.2*21*32.5mm3.7V 240mAh
5025255.0*25*25mm5.2*26*27.5mm3.7V 180mAh
5030305.0*30*30mm5.2*31*32.5mm3.7V 430mAh
5234505.2*34*50mm5.4*35*52.5mm3.7V 1000mAh
5534445.5*34*44mm5.7*35*46.5mm3.7V 850mAh
5536405.5*36*40mm5.7*37*42.5mm3.7V 850mAh
5537595.5*37*59mm5.7*38*61.5mm3.7V 1400mAh
6020306.0*20*30mm6.2*21*32.5mm3.7V 300mAh
6022406.0*22*40mm6.2*23*42.5mm3.7V 500mAh
6025356.0*25*35mm6.2*26*37.5mm3.7V 500mAh
6026636.0*26*63mm6.2*27*65.5mm3.7V 1000mAh
6030306.0*30*30mm6.2*31*32.5mm3.7V 520mAh
6030406.0*30*40mm6.2*31*42.5mm3.7V 750mAh
6030486.0*30*48mm6.2*31*50.5mm3.7V 900mAh
6034506.0*34*50mm6.2*35*52.5mm3.7V 1200mAh
6560906.5*60*90mm6.5*60*92.5mm3.7V 5000mAh
7020407.0*21*40mm7.2*22*42.5mm3.7V 500mAh
7530487.5*30*48mm7.7*31*50.5mm3.7V 1200mAh
8030358.0*30*35mm8.2*31*37.5mm3.7V 800mAh
8554658.5*54*65mm8.5*54*65mm3.7V 4000mAh
8630408.6*30*40mm8.8*30*42.5mm3.7V 1000mAh
9040609*40*60mm9.2*40*62.5mm3.7V 2500mAh
8837608.8*37*60mm9*57*51.6mm3.7V 2000mAh
10304810.2*30*48mm10.2*30*50.5mm3.7V 1500mAh
10304010.2*30*40mm10.2*30*42.5mm3.7V 1200mAh
11426111*42*61mm11*42*63.5mm3.7V 3400mAh
12277312*27*73mm12*27*75.5mm3.7V 2400mAh
Product Images
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
Standard Packaging
80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
Frequently Asked Questions
Q: Can I use Lithium batteries mixing with other battery types?
A: If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
Q: What will happen if the batteries with different capacity are packed together?
A: If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.
Q: What are the possible reasons for zero voltage or low voltage of the battery pack?
A: Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.
Q: What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?
A: The battery is zero voltage or there is battery with zero voltage in the battery pack. There is wrong connection inside the battery pack. There is abnormally of electronic components and/or PCB inside the battery pack. There is failure in charger. Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.
Why Choose Us
Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applied
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R & D

Experienced R&D team with over 60 engineers and advanced equipments for supporting OEM and ODM requirements.

80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
Certificates

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.

80mAh 501220 3.7V KC Polymer Lithium Battery With Wire PCM Connector for TWS Earbuds and Smart Devices
