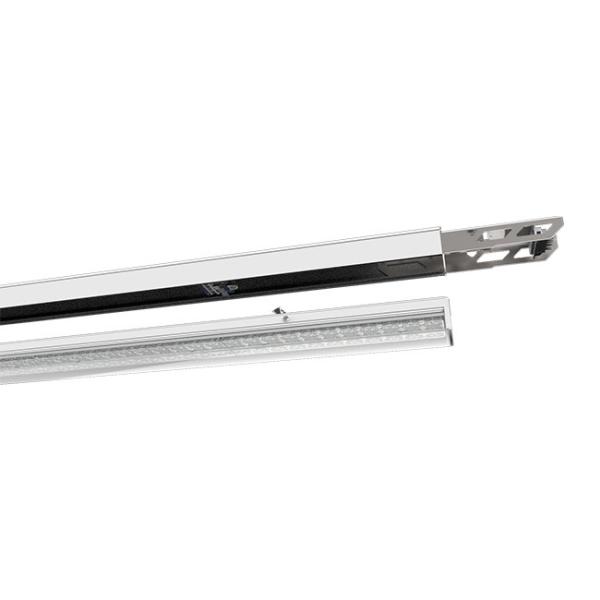

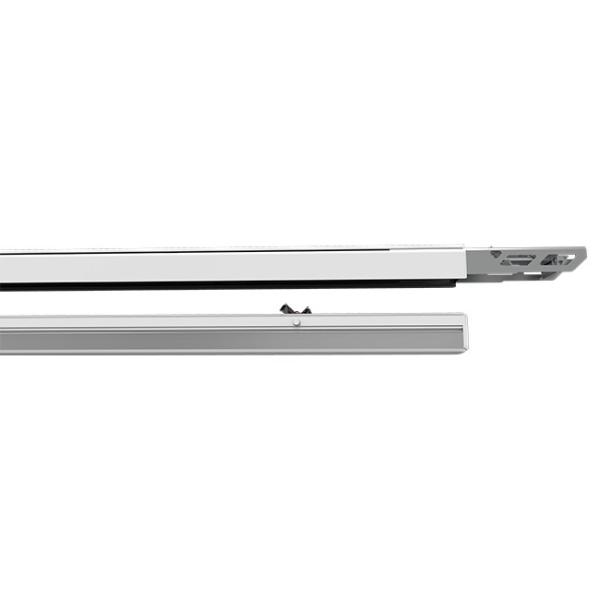

Microwave sensor Linear Ceiling Mount Light for warehouse
Microwave sensor Linear Ceiling Mount Light for warehouse
Microwave sensor Linear Ceiling Mount Light for warehouse
Microwave sensor Linear Ceiling Mount Light for warehouse
Specifications
Model Number :
RIP5S-60-S7
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
20,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
IP Degree :
IP54
Protection Class :
Safety class I
UGR :
<23
Driver :
Tridonic, Osram, , VS
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Sensor :
Microwave
Dimmable :
DALI, 0-10V
Material :
Aluminum+PMMA
Warranty :
5 Years
Description

Microwave sensor below 15m detective led lamps for warehouse

  • With sufficient light, the lamp doesn't switch on.
  • After hold time, the sensor switches off the lamp when no motion is detected.
  • With insufficient ambient light, the sensor switches on the lamp when motion is detected.

​Datasheet for LED module:

Item Model NO. Watt Lumen Efficacy Function EEC L*W*H(mm)
1 RIP5S-60-S1 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1451*65*27
2 RIP5S-60-V1 60W-50W-42W-32W 9,000lm 160LM/W On/off A++ 1451*65*27
3 RIP5S-68-PC 68W-60W-54W-48W-38W
32W-25W-20W by switch		 10,500lm 160LM/W On/off A++ 1451*65*27
4 RIP5S-72-B3 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W 10,500lm 160LM/W 0-10V A++ 1451*65*27
5 RIP5S-68-T4 Max 68W 10,500lm 160LM/W DALI A++ 1451*65*27


Maximum Loading:

RIP5S-60-S1 RIP5S-60-V1 RIP5S-68-PC RIP5S-72-B3 RIP5S-68-T4
B10 12 13 15 15 13
B16 19 21 24 25 21
C10 20 22 25 27 21
C16 32 35 40 42 35

​Datasheet for trunkings:

Item Model NO, Wires(mm²) Dimensions(mm) Weight(KG)
1
TKB5-05W-00
5 x2.5 mm²
1450x 65 x 65
 1.59
2 TKB5-07W-00
7 x2.5 mm²
1450x 65 x 65
 1.65
3 TKB5-11W-00
11 x2.5 mm²
1450x 65 x 65
 1.95
4 TKB9-05W-00
5 x2.5 mm²
2900x 65 x 65
 2.85
5 TKB9-07W-00
7 x2.5 mm²
 2900x 65 x 65 2.98
6 TKB9-11W-00
11 x2.5 mm²
 2900x 65 x 65 3.25

Accessories:

Microwave sensor Linear Ceiling Mount Light for warehouse

FAQ:

Q1. What's the warranty on the product?
A: 5 years.

Q2. Is there any cheap shipping cost to import to our country?
A: For samples, express will be the best. For bulk order, sea shipping way is the best but taking much time.

For urgent orders, we suggest by air.


Q3. Can we chat by Skype or WhatsApp?
A: It's okay. Please search my Skype and WhatsApp by +86 181 5385 0848.

For more information, welcome to visit our website www.recolux.com.
