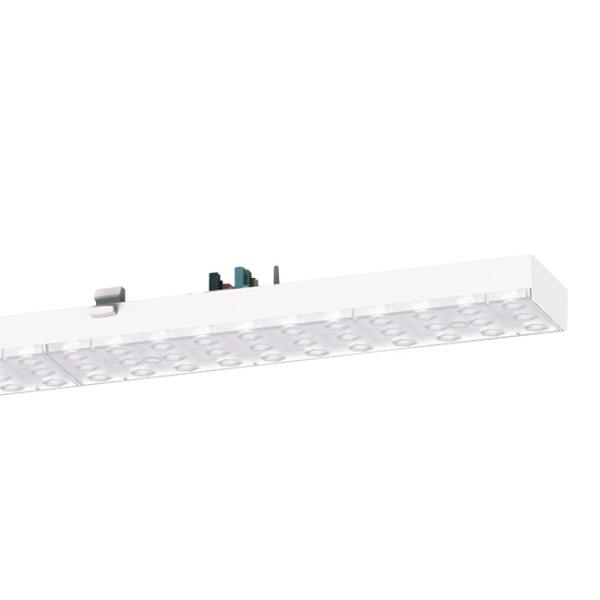

11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing
11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing
11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing
11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing
Specifications
Model Number :
RSL5S5-68-T4
Certification :
ENEC, CE, RoHS, CB
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
20,000 Pieces per Month
Delivery Time :
3-5 working days for sample, 7-15 working days for mass production
Packaging Details :
8pcs per carton(159*29*22cm)
Input Voltage :
220-240V AC/DC
LED :
SMD2835
Input Frequency :
50 or 60 HZ
Lifetime :
50,000(L80B10)
Power Factor :
>0.95
Beam Angle :
30°/60°/90°/25°/15°/120°
Switching Cycles :
100,000 times
CRI :
Ra>80 or Ra>90
Protection Class :
Safety class I
UGR :
<23
Driver :
Tridonic
SDCM :
<5
Luminous Efficacy :
160lm/w
Flicker Free :
Yes
Emergency :
4W 3H
Dimmable :
DALI
Material :
Aluminum+PMMA
Warranty :
5 Years
Description

5ft DALI dimmable max 11,000lm white housing aluminium Led Linear Lighting System

​Datasheet for LED module:

Item Model NO. Watt Lumen Efficacy Function EEC L*W*H(mm)
1 RSL5S5-68-T4 Max 68W 10,500lm 160LM/W DALI A++ 1438*65*27


Maximum Loading:

RSL5S5-68-T4
B10 13
B16 21
C10 21
C16 35

​Datasheet for trunkings:

Item Model NO, Wires(mm²) Dimensions(mm) Weight(KG)
1 TKA5-07W-00
7 x2.5 mm²
1438x 65 x 65
 1.65
2 TKA5-11W-00
11 x2.5 mm²
1438x 65 x 65
 1.95
3 TKA9-07W-00
7 x2.5 mm²
 2876x 65 x 65 2.98
4 TKA9-11W-00
11 x2.5 mm²
 2876x 65 x 65 3.25

Accessories:

11000lm Linear Track Lighting 5ft DALI Dimmable Aluminium Housing

FAQ:

Q1. What's the dimming range for the product?
A: We can do 0-100% dimming and 30-100% dimming.
Q2. What about the lead time?
A: Sample order: 3~5 working days Bulk order: 20~30 working days after deposit/ full payment, it will depend on the quantity.
Q3. Can I use another branded driver for this linear light?
A: We can also use DALI driver, power range is 20W-68W, the same with Tridonic driver.


For more information, welcome to visit our website www.recolux.com.
