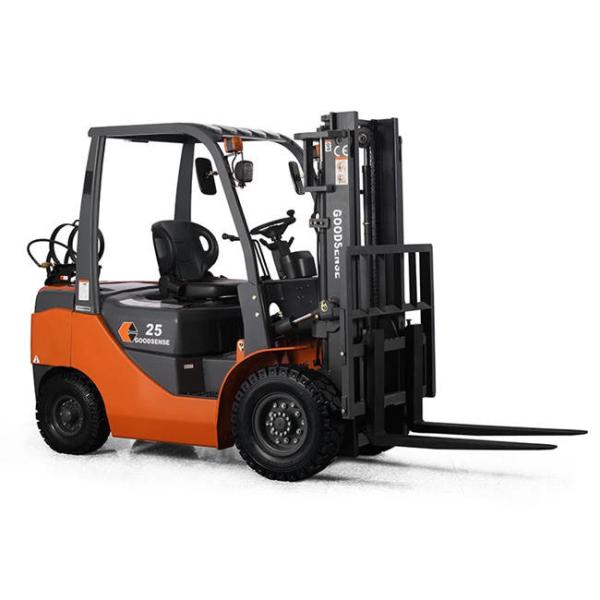

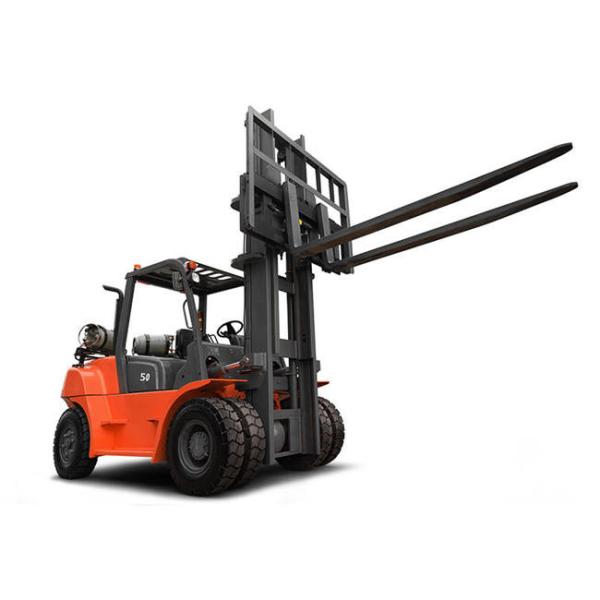

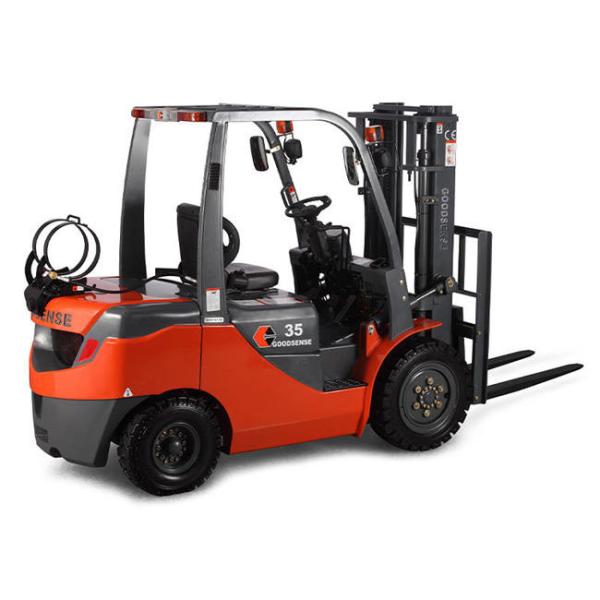

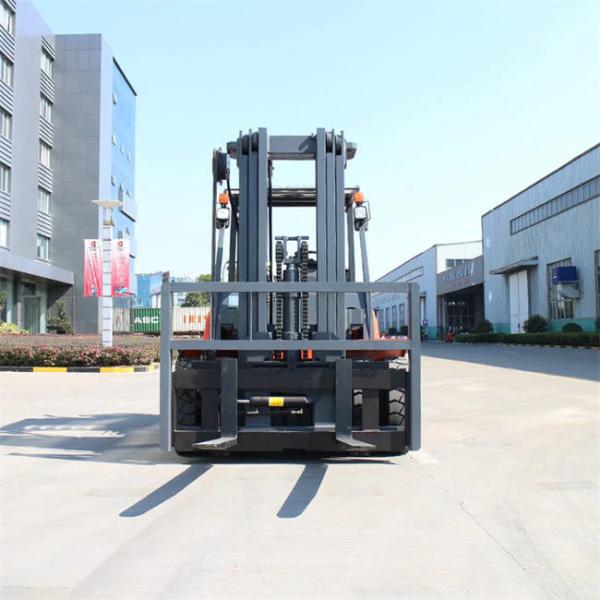

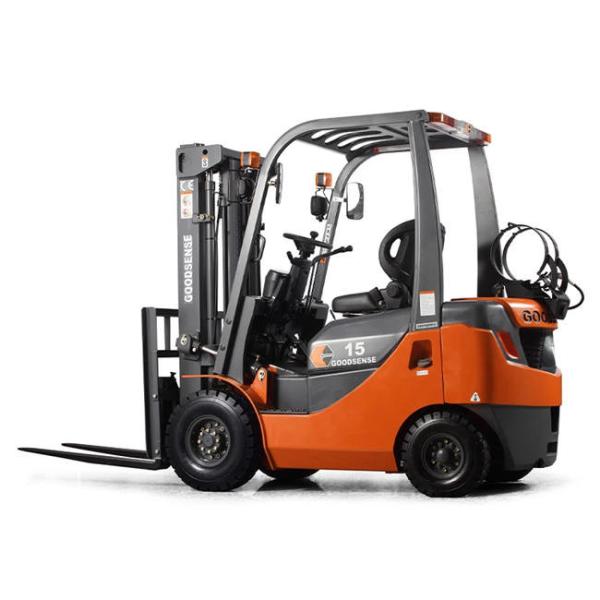

Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Goodsense Propane Forklift 3.5 Ton Epa Engine Lpg Gas Fuel Fork Lift 3-6 M Lifting Height Lpg Forklift Truck
Specifications
Brand Name :
Goodsense
Model Number :
FG15 FG20 FG25 FG30 FG35
Place of Origin :
China
Rated Loading Capacity :
1.5 Ton 2 ton 2.5 TON 3 Ton 3.5 TON
Core Components :
Motor, Pump, Gearbox, Engine
Weight (KG) :
6400 kg
Fork Length :
1070mm
Fork Width :
150mm
Overall Dimensions :
3260*1460*2270mm
Service weight :
6400kg
Name :
Forklift
Condition :
new
Energy supply :
Reference Introduction
Advantage :
Small vibration and noise
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Bare packaging
Delivery Time :
30-40work days
Payment Terms :
T/T
Description

Model
FG15
FG20
FG25
FG30
Rated load
kg
1500
2000
2500
3000
Load center distance
mm
500
500
500
500
Lift Height
mm
3000
3000
3000
3000
Free Iift height
mm
155
240
240
165
Fork size(L×WxT)
mm
920×100×40
1070×122x40
1070×122x40
1070×125x45
Mast tilt angle(FR/RR)
6/12
6/12
6/12
6/12
Min. tuming radius
mm
1955
2170
2230
2550
Min. right angle stacking length
mm
3365
3635
3695
4025
Min. right angle aisle width
mm
2155
2370
2430
2750
Min. ground cearance
mm
110
110
110
130
Height of overhead guard
mm
2060
2070
2070
2090
Maximum travel speed(Full load)
km/h
14.6
18
18
19
Maximum lift speed(Full load)
mm/s
510
500
500
560
Maximum drawbar pull(Full load)
KN
14
11.7
11.4
20
Gradeabity
20
20
18
15
Overall ength(Without forks)
mm
2235
2505
2580
2765
Overall width
mm
1080
1160
1160
1230
Fork height at maximum lift
mm
3930
3944
3944
4230
Mast height
mm
2010
1995
1995
2075
Tires
Front wheel
6.50-10-10PR
7.00-12-12PR
7.00-12-12PR
28×9-15-14PR
Rear wheel
5.00-8-10PR
6.00-9-10PR
6.00-9-10PR
6.50-10-10PR
Wheelbase
mm
1400
1600
1600
1760
Self weigh
Kg
2790
3300
3660
4140
Battery
Voltage/capacity
V/Ah
12/80
12/80
12/80
12/80
Engine
Rated output
kw/r.p.m
31.2/2250
37.4/2300
37.4/2300
37.4/2300
Rated torque
Nm/t.p.m
143.7/1600
176.5/1600
176.5/1600
176.5/1600
Bore x strokex
mm
83×100
89×100
89×100
89×100
Number of cylinders
4
4
4
4
Displacement
L
2.164
2.488
2.488
2.488
Fuel tank capacty
L
49
55
55
55
Transmissions(FWD/RWD)
1/1 Manual shit
1/1 Manual shift
1/1 Manual shift
1/1 Manual shift
Operating pressure
Mpa
15.5
18.5
18.5
18.5
Tire type(FRV/RR)
Pneumatic
Pneumatic
Pneumatic
Pneumatic
