Specifications
Brand Name :
RanCheng
Model Number :
RCF260W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
hydraulic wheel mounted water well drilling rig
Model :
RCF260W
Bore diameter（hammer） :
90-350mm
Air consumption :
17-35m³/min
Air pressure :
1.7-3.0Mpa
Pipe diameter :
76mm/89mm
Description

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment

Machine Introduction

RCF260W wheel mounted water well drilling rig is a lightweight, efficient and multifunctional drilling equipment,

This water drilling drilling rig is multifunctional, it can be used with air compressor, mud pump, even we can just use the dry hydraulic drilling method.The drilling rigs are not only designed for water drilling. They can be used in all conditions based on pore-forming purpose.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

Technical Parameters

Bore diameter(hammer) 90-350mm
Bore depth 260m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Push force 4T
Lifting force 15T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 4000-5300Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.5T
Mud Pump flow 20L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.85×2.3M
Weight 6500Kg
Diesel engine 70KW engine


Application

The water well drilling rig is mainly applicable to industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexible wide application region etc.. widely used in industrial and agriculture water project, testing well and other exploration borehole. In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering.

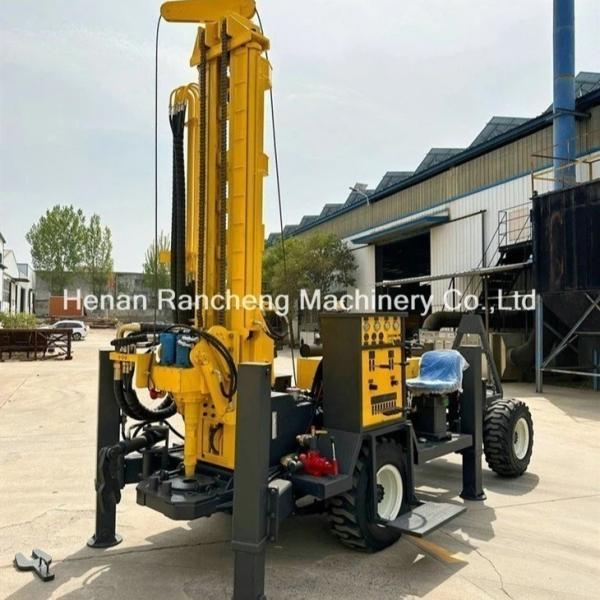

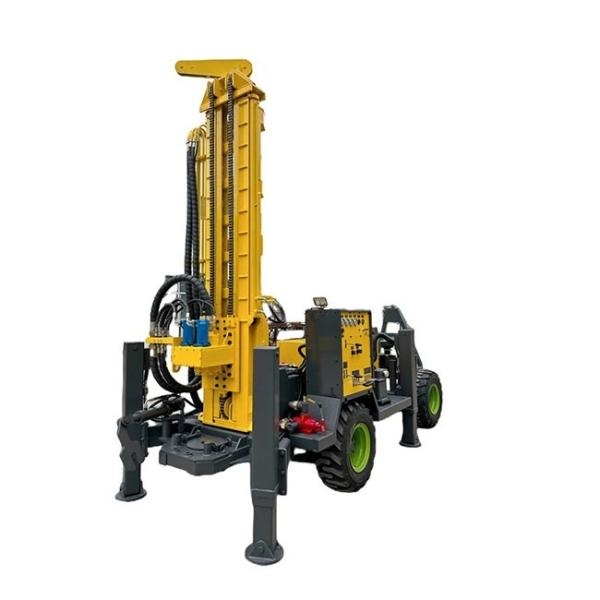

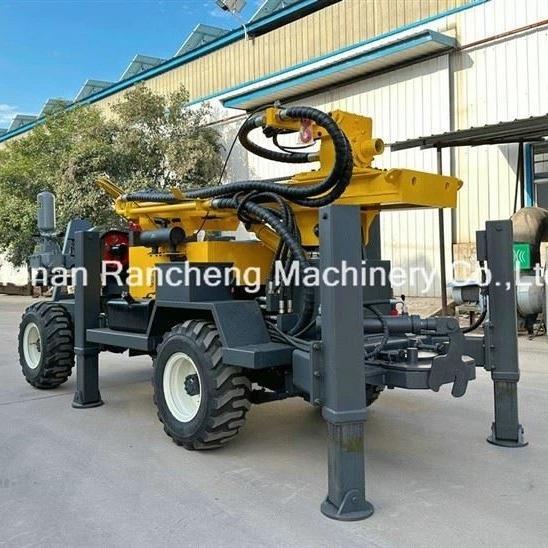

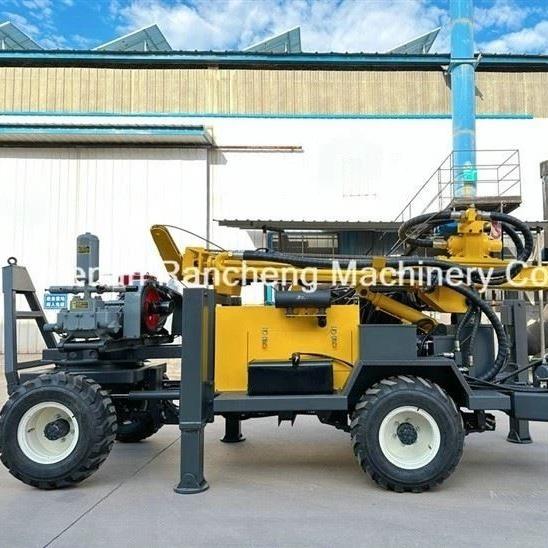

Machine Pictures

260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment260m Depth Trailer Mounted Water Well Drilling Rig Machine Mining Machinery Equipment
