280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
Specifications
Brand Name :
RanCheng
Model Number :
RCF280C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
USD30000-USD40000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Full Hydraulic Water Well Drilling Machine
Model :
RCF280C
Bore Depth :
280m
Bore diameter（hammer） :
100-350mm
Pipe diameter :
89mm/102mm
Pipe length :
3m/6m
Max torque of rotary :
7000-9000Nm
Diesel engine :
75KW Yuchai engine
Description

280m Water Well Drilling Rig Diesel Hydraulic Power For 7000-9000Nm Max Torque Of Rotary

Product Description

RCF280C deepwater drilling rig is a product independently developed by our company. This new generation of deepwater (DTH) drilling rig plays a key role in improving drilling speed and gas efficiency.

The drilling rig adopts the latest model and advanced hydraulic technology, with the characteristics of low energy consumption, high torque, anti-deflection, high-quality materials, smooth and compact shape, higher efficiency, lower failure rate, economical and durable, and high cost performance. Our company's deepwater drilling rig has won wide acclaim in the market and received positive feedback from many customers.


Technical Parameters

Model RCF280C
Bore diameter(Hammer) 100-350mm
Bore depth 280m
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Pipe diameter 89mm/102mm
Pipe length 3m/6m
Lifting force 18T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 7000-9000Nm
Rotary speed 40-70r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4100×1900×2600mm
Weight 7000Kg
Diesel engine 70KW Yuchai engine

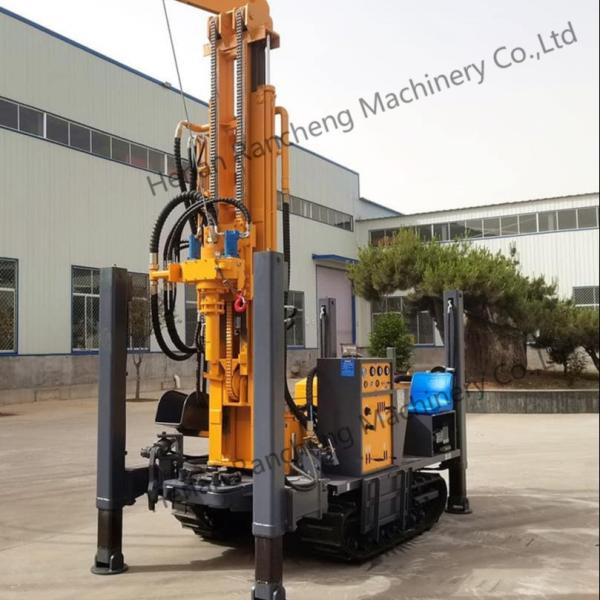

Machine Picture Display

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power

280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power280m Water Well Drilling Rig with 7000-9000Nm Max Torque - Diesel Hydraulic Power
