200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
Specifications
Brand Name :
RanCheng
Model Number :
RCF200T Truck Mounted Water Well Drilling Rig
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
USD100000-USD200000
Payment Terms :
T/T,Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by ro-ro ship
Name :
Water Well Drilling Rig
Model :
RCF200T Truck Mounted Water Well Drilling Rig
Bore Diameter :
140-350mm
Bore Depth :
200m
Dimension :
8900*2100*3300mm
The total weight :
12T
Feed stroke :
3400mm
Travel speed :
80km/h
Description

200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig 3400mm Feed Stroke

Product Description

RCF200T deep-water well drilling rig is a new generation of down-the-hole drilling rig independently developed by our company. It adopts enhanced pneumatic power, which significantly improves the drilling speed.

The water well drilling rig produced by our company adopts the latest model and the most advanced hydraulic technology. It has the characteristics of low fuel consumption, high torque, and convenient well inclination adjustment. It is mainly used for drilling in resource exploration, hydrology, civil engineering, agricultural irrigation and other projects.


Technical Parameters

Drilling type Mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Drilling diameter (mm) 115～350
Drilling depth (m) 200
Work Pressure(Mpa) 1.05～3.5
Consumption (m³/min) 16～40
Drill pipe length (m) 3
Drill pipe diameter (mm) 89
Axle pressure (N) 57000
Lifting power (T) 12T
Rotary torque (Nm) 5600
Rotary speed 0～100
Truck Chassis DONGFENG
Diesel engine Model Cummins
Discharge standard Euro III
Horsepower 180HP
Rated speed 2500r/min
Fuel type diesel
Tire size 90.00-20R
Drive form 4*2
Dimension (mm) 8900*2100*3300
The total weight (T) 12

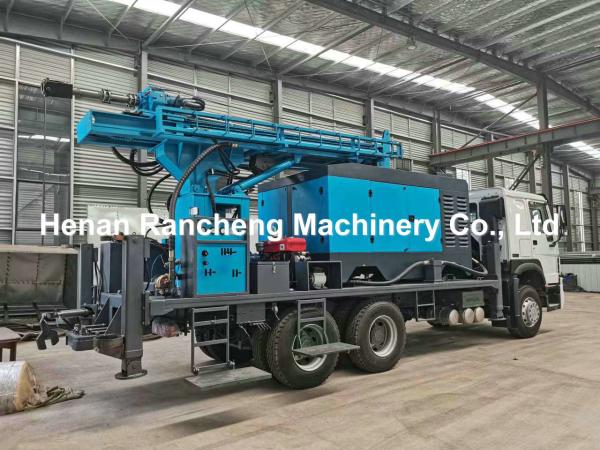

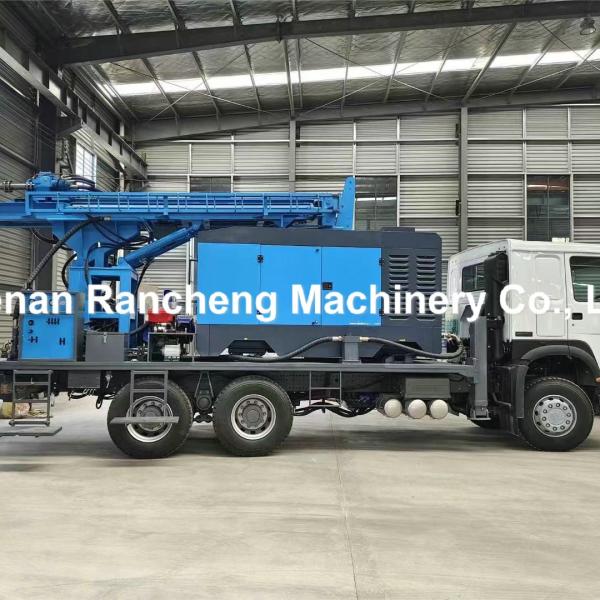

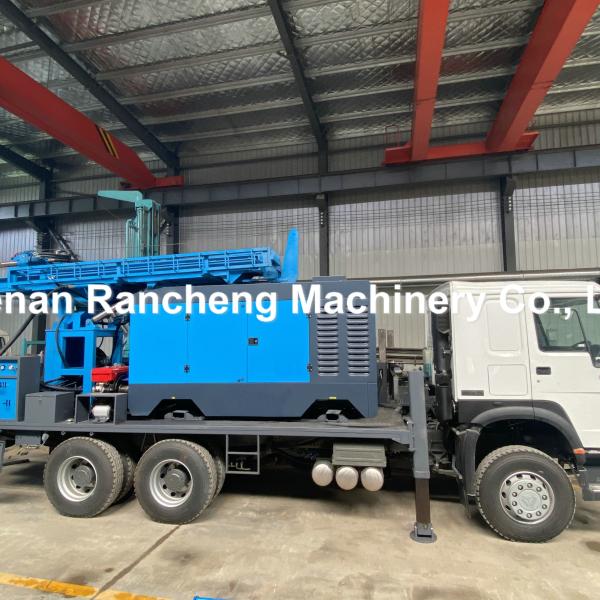

Machine picture display

200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke

200m Truck Mounted Water Well Drilling Rig with 3400mm Feed Stroke
