300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
300m Underground Water Exploration Detector Underground Water Finder
Specifications
Brand Name :
RanCheng
Model Number :
3HT2
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard shipping
Adjustable depth(m) :
300
Connection method :
WIFI
Resolution :
0.1mV±5%
Depth interval :
5/10/20(m)
Frequency range (HZ) :
1-8K
Description

300m Underground Water Exploration Detector Underground Water Finder

Product Description

The 3HT2 Underground Water Finder Detector offers precise distinction between different types of subsurface targets, making it suitable for accurate groundwater mapping.

Designed with a modern and ergonomic structure, the device is lightweight and easy to carry, requiring no additional personnel for operation.

Powered by a primary 12V battery, it can operate continuously for up to 48 hours. Additionally, it supports a backup power option with 6 AA batteries and a compatible charger. The clear display screen shows real-time battery power levels for added convenience.

Equipped with advanced circuit and chip technology, the 3HT2 ensures stable, reliable, and efficient performance in the field.

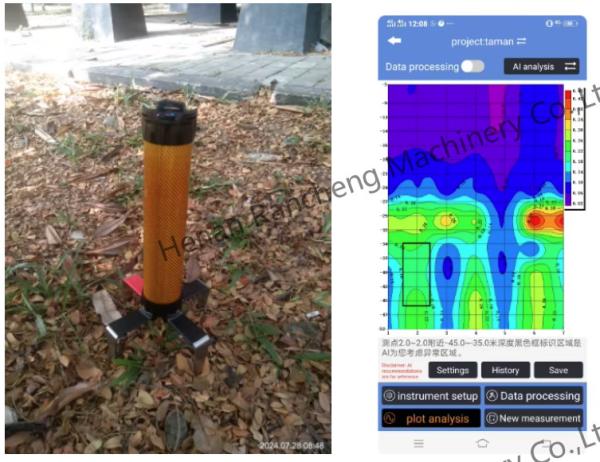

Results are displayed in both 2D and 3D imaging formats, offering clear and intuitive data visualization for easy analysis.

Backed by a two-year warranty, the portable 3HT2 is a dependable choice for professional water detection and geological exploration tasks.

Technical Parameters

Model 3H 3HT2 3HT3 8HT2 8HT3
Adjustable depth(m) 300 800
Depth interval 5/10/20(m)
Battery power consumption 7.4V2600mAH lithium battery, power consumption is about 140mA
Connection method WIFI
MN electrode 100*95*30mm L-shaped alloy electrode 4 pcs
The main function Optional start and end depth range, adjustable depth interval, 2D/3D automatic drawing, AI automatic analysis, online/offline
measurement mode
TT electromagnetic induction coil (mm/w) / 300/4 300/4 450/8 550/8
TT electromagnetic induction core (KmH/m) / 80 100 100 120
working environment Can be inserted into the ground any ground
Frequency range (HZ) 1-8K
Measurement mode MN MN/TT
Resolution 0.1mV±5% 0.01mV±1%
Sampling time (seconds) 14-420 14-420 14-700 14-420 14-700
Shipping weight (kg) 4.5 6.0 7.5
Length weight (mm) 540*225*195 785*225*195 940*225*195

Applications:

Groundwater exploration for wells or agricultural irrigation.

Geological hazard assessment (e.g., landslides, sinkholes).

Mining and construction site evaluations.

Environmental monitoring and hydrological research.
