Specifications
Brand Name :
RanCheng
Model Number :
RCJ130W / RCJ150W / RCJ200W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Mutil Functional Drilling Machine
Model :
RCJ200W
Drilling depth :
200m
Drilling angle :
90°～75°
Drilling weight（no include power） :
910kg
Description

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

Machine Introduction

RCJ130W, RCJ150W, RCJ200W small well hydraulic drilling rig is a multifunctional drilling rig, Vertical box four couple of bearings positioned to ensure the rotary machine has a sufficient rigid response to gravel layer ,the complex geological conditions.This bore drilling machine adopts national patent technology taper clutch, with characteristics of strong transmission torque, easy to operation, free to maintenance.53x59 driving lever is adopted, high rigidity, strong delivery torque.

Machine Parameters

Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38

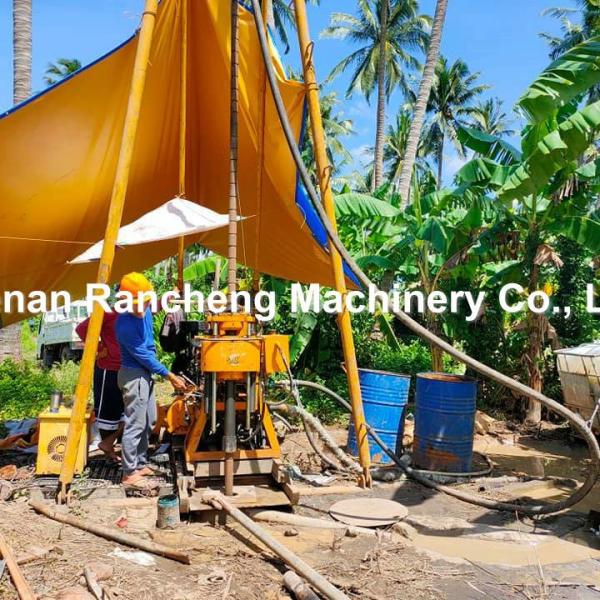

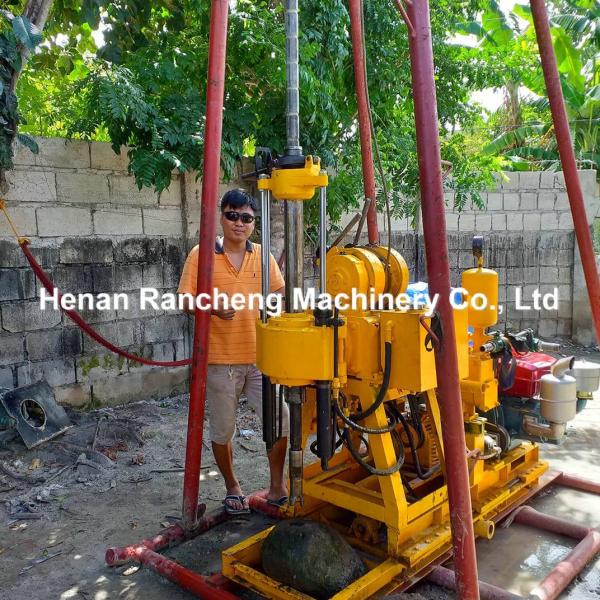

Machine Pictures

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional 90°～75° Drilling Angle
