Specifications
Brand Name :
RanCheng
Model Number :
RCF220W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Model :
RCF220W deep water well drilling rigs
Engine power :
65KW Quanchai engine
Max Drilling depth :
220m
Drilling way :
both mud pump DTH air drilling
Lifting force :
13T
Bore diameter :
90-300mm
Description

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine

Machine Introduction

The water well drilling rigs we produce are the most advanced models, equipped with an efficient hydraulic system, with high power, low energy consumption, high torque, deep drilling depth, and flexible adjustment of drilling position. Whether it is used for exploration, drilling hydrological monitoring wells, or water collection for civil and agricultural irrigation, the operation is very simple.

The equipment uses high-quality steel and wear-resistant parts, with a compact structure and easy operation. It not only has a fast drilling speed and low failure rate, but also is durable and economical. Many customers have expressed excellent performance, labor saving and money saving after using it.


Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine


Machine Advantages

1. The drilling rig adopts a high-torque and high-efficiency hydraulic system.

2. The drive and lifting system adopts a plate chain drive driven by a hydraulic cylinder, which provides high power, high torque and excellent drilling ability under complex geological conditions such as soil, sand, and hard rock.

3. The drilling tower is equipped with a hydraulic compensation mechanism. During the drilling process, the drilling tower is always close to the ground, with stronger load-bearing capacity and higher stability.

4. The front stabilizer is telescopic, with a large extension range and high construction stability.

5. The platform is hydraulically driven and equipped with four-wheel drive for easy movement and transportation.

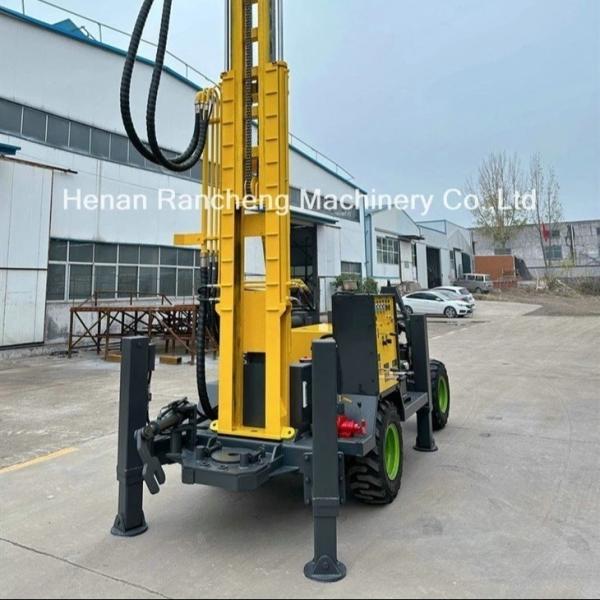

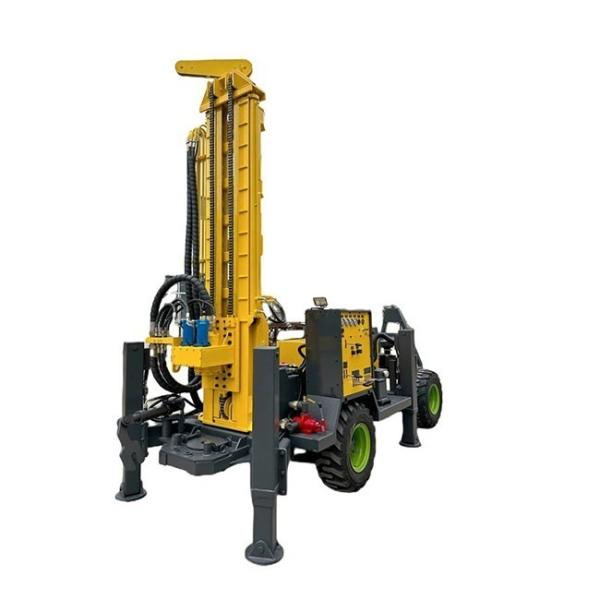

Machine Pictures

Both Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai EngineBoth Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai EngineBoth Mud Pump DTH Air Drilling Borehole Drilling Machine For Hydrology Wells 65KW Quanchai Engine
