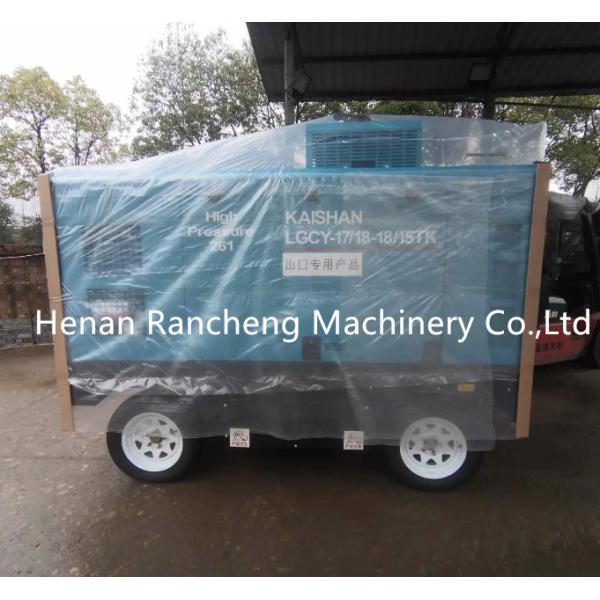

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
Specifications
Brand Name :
RanCheng
Model Number :
LGCY-17/18-18/15TK
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard shipping
Model :
LGCY-17/18-18/15TK
Air Consumption :
17-18 m3/min
Working Pressure :
18-15 bar(1.8-1.5 Mpa)
Compression Stage :
Two Stage
Compressor Oil Capacity :
36L
Description

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure:18bar 210HP Cummins Engine For 150-200m Drilling

Product Description

This air compressor adopts the design concept of "large rotor, large bearing, low speed", and the speed is 30-50% lower than other brands, reducing noise, vibration and exhaust temperature, improving rotor rigidity, extending service life, and reducing sensitivity to impurities and oil carbides.

Power range: 4~355KW, of which 18.5~250KW is suitable for compressors without direct-connected gearboxes, 200KW and 250KW are suitable for compressors with 4-stage direct-connected motors, and the speed is as low as 1480 rpm. It fully meets and exceeds the requirements of GB19153-2003 "Energy Efficiency Limit Values ​​and Energy Saving Evaluation Values ​​for Volumetric Air Compressors".

Technical Data

Model LGCY-17/18-18/15TK
Pressure(mpa) 1.8-1.5
Air Consumption(m3/min) 17-18
Dimension(mm) 3000*1520*2300
Interface G2*1,G3/4*1
Weight(kg) 2200
Cummins engine 210HP

Application

• Mining operations that require a continuous supply of compressed air
• Water well drilling and related applications
• Remote construction sites that require diesel engine reliability
• Projects that require low maintenance and efficient compressed air

Available now - contact us for specifications and pricing!


Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling

Four Wheels Trailer Type LGCY17-18-18/15TK Air Compressor Work Pressure 18bar 210HP Cummins Engine For 150-200m Drilling
