200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
Specifications
Brand Name :
RanCheng
Model Number :
RCJ130W / RCJ150W / RCJ200W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
Mutil Functional Drilling Machine
Model :
RCJ200W
Drilling depth :
200m
Drilling angle :
90°～75°
Drilling weight（no include power） :
910kg
Description

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

Machine Introduction

RCJ130W, RCJ150W, RCJ200W small water well hydraulic drilling rigs are multifunctional drilling equipment, mainly used for water well drilling operations. According to different geological conditions, they are usually equipped with diamond drill bits to deal with hard rock layers, and alloy drill bits to deal with clay layers. They are both economical and practical drilling solutions.

Machine Parameters

Tech parameter Model RCJ130W RCJ150W RCJ200W
Drilling depth(m) 130 200 200
Open hole dia(mm) 220 220 325
End hole dia(mm) 75 75 75
Drill rod dia(mm) 42-60 42-60 42-60
Drill angle 90-75 90-75 90-75
Matching power(KW) 13.2 13.2 14.7
Dimension(m) 2.4*0.8*1.4 2.4*0.8*1.3 2.7*0.9*1.5
Spindle Speed(r/min) 142/285/570

130/300/48/730/830/1045

 64/128/287/557
Stroke(mm) 450 450 450
Winch Max pull force(kg) 2000 2100 2500
Pull speed(m/s) 0.41-1.64 0.35-2.23 0.12-0.95
Rope dia(mm) 9.3 9.3 /
Roll capacity(m) 27 27 35
Drill Mast Rated load(Ton) 18 18 18
Height(m) 6.5 6.5 6.5
Mud Pump Flow(L/min) 95 95 145
Max Pressure(MPa) 1.2 1.2 2
Times/min 93 93 93
Inlet hose Dia(mm) 51 51 51
Outlet hose Dia(mm) 32 32 38

Application:

This drilling machine is mainly used for geological survey and exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river bank and roadbed grouting holes, direct grouting operations, civil water wells, and geothermal central air conditioning related drilling work. From the preliminary geological survey of engineering construction, to the quality inspection of infrastructure, to the water source development of civil facilities and the drilling needs of new energy systems, it can play a key role in different scenarios and is a drilling equipment with a wide range of applications.

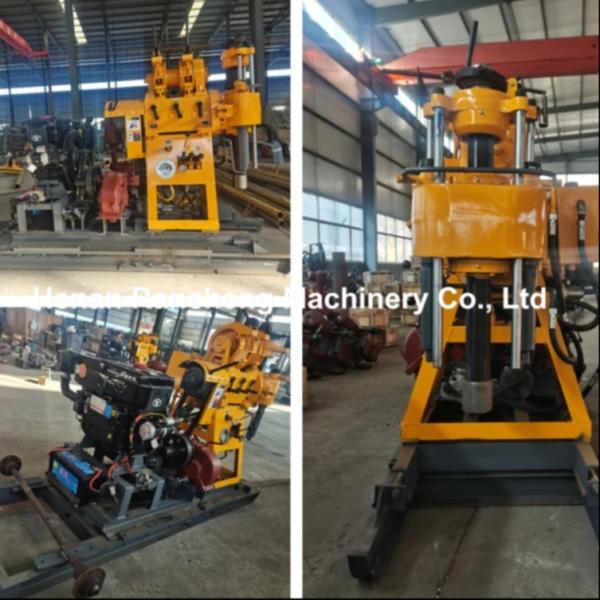

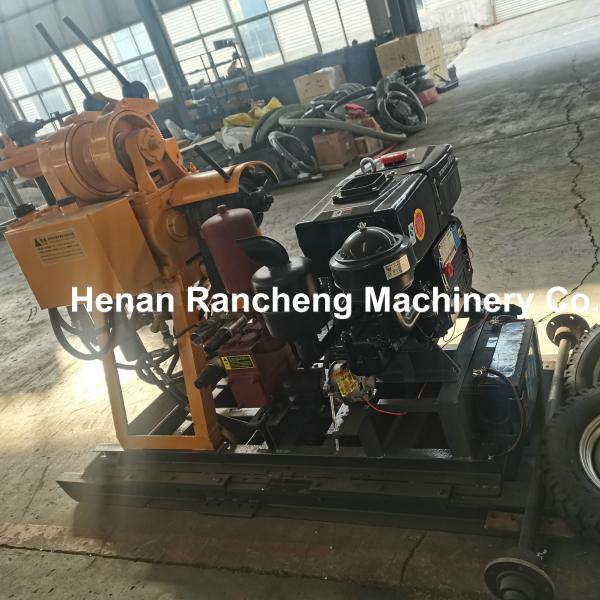

Machine Pictures

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine

200m Depth Hydraulic Small Borehole Drilling Rig Mutil Functional Drilling Machine With 20HP Diesel Engine
