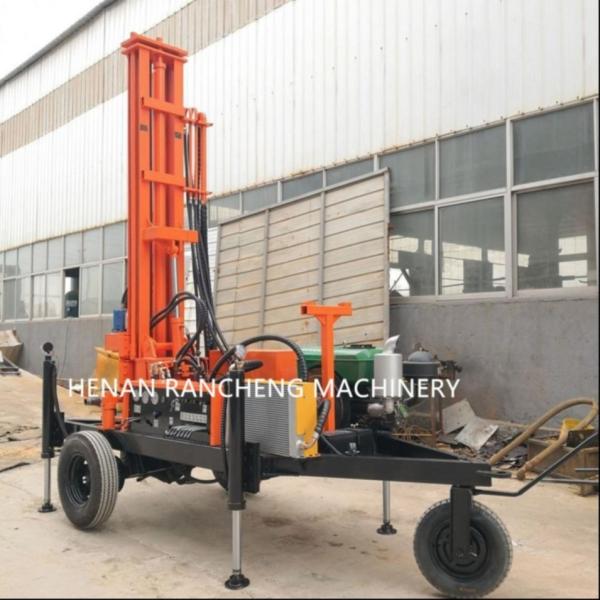

RCF150W 150m wheel Mounted Water Well Borehole Drilling Rig for water well

Machine Introduction

RCF150W small drilling rig is a lightweight, efficient and multifunctional drilling equipment. The small drilling rig adopts a three-wheel trailer, which is convenient and quick to transfer. The small drilling rig has a compact structure and is easy to carry. The whole machine adopts full hydraulic drive with low failure rate. The tower assembly is equipped with a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

Technical Parameters

Machine Advantages

1. Travel device

Three-wheel trailer type, convenient for pickup trucks or tractors to pull.

2. Positive and negative axial pressure adjustment

The best impact efficiency of each impactor has its matching best axial pressure and speed. During the drilling process, as the number of drill rods increases, the axial pressure on the impactor also increases. Therefore, the positive and negative axial pressure valves should be adjusted during construction to ensure that the impactor obtains a more suitable axial pressure, and the impact efficiency is higher at this time.

3. Hydraulic oil pump

Parallel gearbox design (patent) oil pump group separation, sufficient power source distribution, unique hydraulic system design, simple maintenance, low cost;

4. Power head device

Gearbox integral casting, dual motor power, large torque, sturdy and durable, low maintenance cost;

5. Lifting force

Patented design composite boom, small boom size, long stroke, double cylinder lifting, increased tonnage;

6. Each drilling rig is equipped with a lifting arm limiter to protect the cylinder and ensure work safety;

7. Each hydraulic oil pipe is covered with a protective sleeve to extend the service life of the oil pipe.

Machine Pictures
