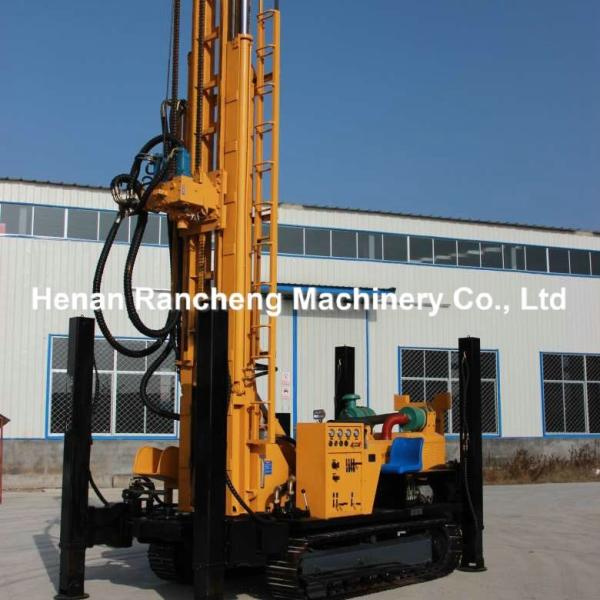

RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
Specifications
Brand Name :
RanCheng
Model Number :
RCF400C
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Bore diameter（hammer） :
140-350mm
Drilling Depth :
400m
Pipe diameter :
89mm/102mm
Pipe length :
1.5m/2m/3m/6m
Max torque of rotary :
6200-9000Nm
Diesel engine :
92KW Yuchai engine
Description
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
The RCF400C deep water well drilling rig is independently developed by our company, featuring a high-power down-the-hole pneumatic power unit for rapid drilling operations. Utilizing advanced hydraulic technology, this equipment delivers low energy consumption and high torque performance, making it ideal for various applications including resource exploration, domestic water wells, and agricultural irrigation projects.
Technical Specifications
Parameter Specification
Bore Diameter (Hammer) 140-350mm
Bore Depth 400m
Air Consumption 17-36m³/min
Air Pressure 1.7-3.5Mpa
Pipe Diameter 89mm/102mm
Pipe Length 1.5m/2m/3m/6m
Lifting Force 22T
Lifting Speed 3m/min
Feeding Speed 0.5-5m/min
Fast Lifting Speed 20m/min
Fast Feeding Speed 40m/min
Max Torque of Rotary 6200-9000Nm
Rotary Speed 66-135r/min
Hoist Lifting Capacity 2T
Mud Pump Flow 450L/min (option)
High Hydraulic Leg 1.4m
Feeding Efficiency 15-35m/h
Travel Speed 2.5Km/h
Climb Ability 30°
Dimension (L×W×H) 6000×2100×2550mm
Weight 9200Kg
Diesel Engine 92KW Yuchai Engine
Drilling Method Air Compressor Drilling or Mud Pump Drilling
Key Features & Benefits
  • High Efficiency & Energy Saving: Equipped with high-power down-the-hole hammer pneumatic unit for fast drilling speed and advanced hydraulic technology for low energy consumption and high torque performance
  • Wide Adaptability: Suitable for various projects including resource exploration, domestic water wells, and agricultural irrigation applications
  • Convenient Operation: Compact design with fully hydraulic control for flexible adjustment of speed and torque parameters
  • Top Drive Design: Simplifies drill pipe operation and supports various drilling processes with optional accessories
  • Practical & Durable: High-leg design facilitates loading/unloading; tracked walking mechanism suitable for muddy terrain
  • Adjustable Pressure: Positive and negative axial pressure adjustment capability
  • Multiple Chassis Options: Available in tracked or vehicle-mounted configurations
  • Premium Components: Core components sourced from well-known brands for high strength, wear resistance, and durability
Product Images
RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig RCF400C Deep Water Well 400-Meter Multi-Functional Drilling Rig
