Specifications
Brand Name :
RanCheng
Model Number :
RCS200W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
USD6580-12000
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
Standard shipping
Model :
RCS200W
Geology drilled :
All kinds
Drill depth :
200m
Drilling Diameter :
90-300mm
Drill system and operation :
hydraulic
For rock :
6-20F
Description

Small Hydraulic Wheel Type Water Drilling Rig 200m Borehole Drilling Machine For Sale

Product Description

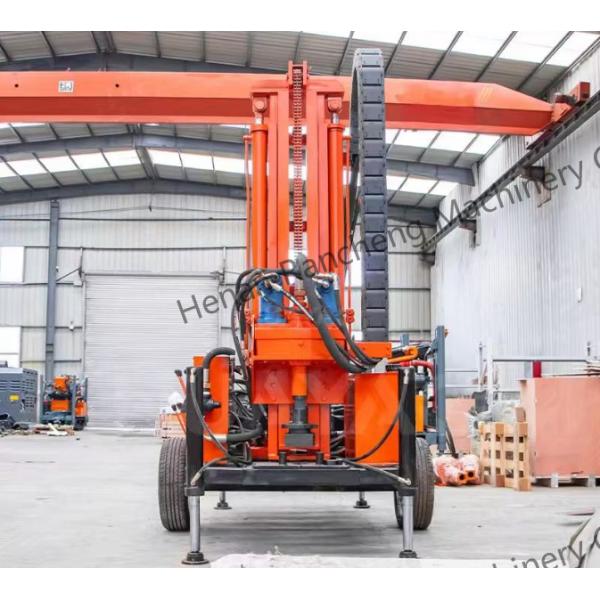

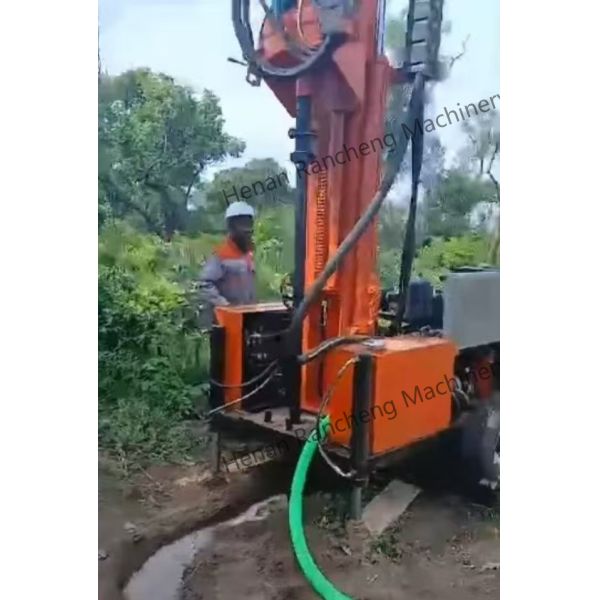

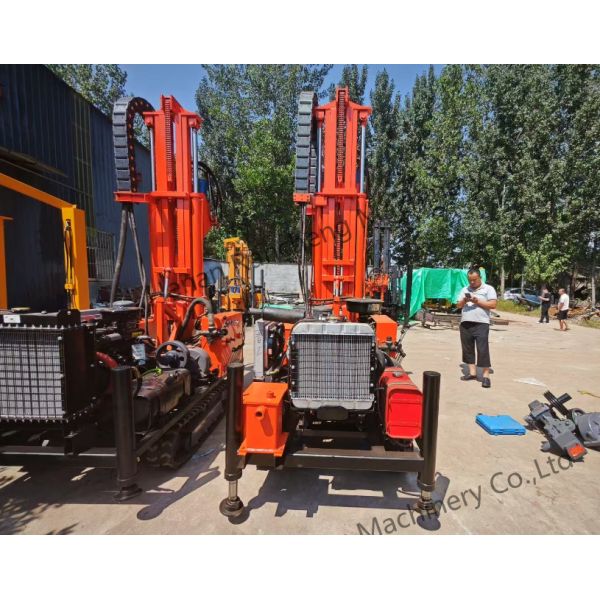

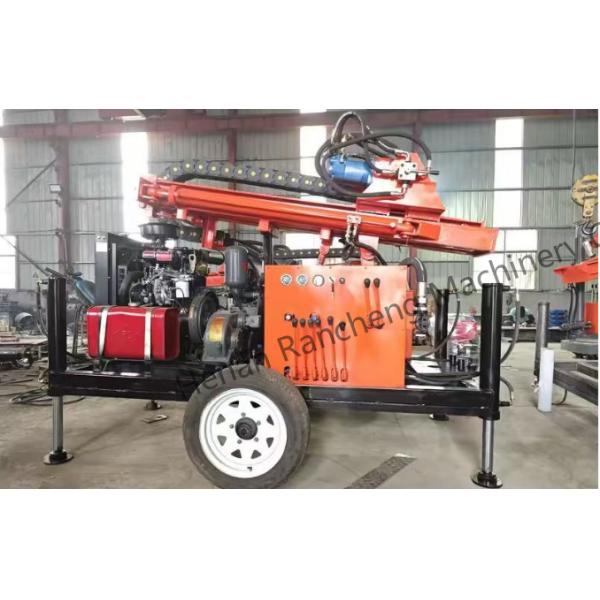

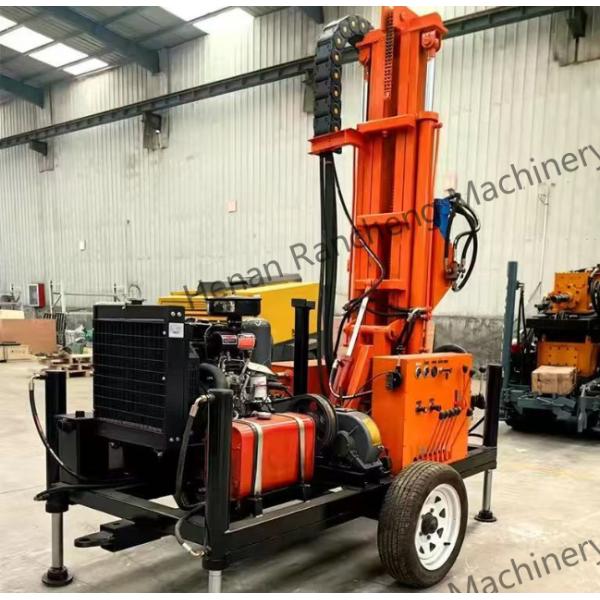

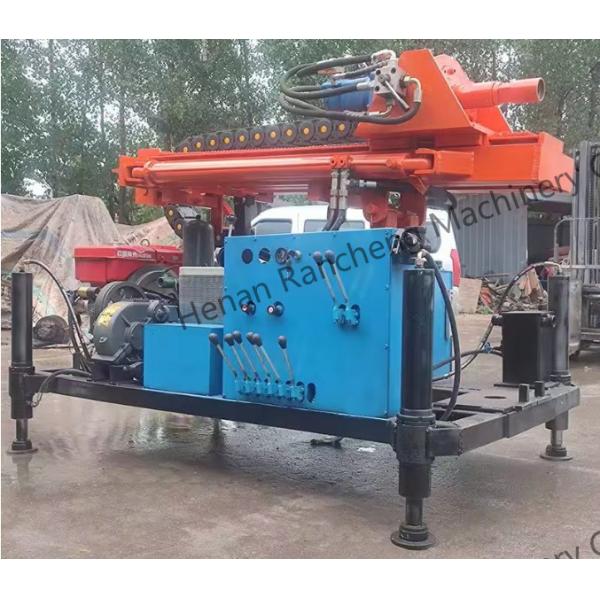

The RCS200W small water well drilling rig is mounted on a trailer. It uses advanced hydraulic technology, a top-mounted drive, and is powered by a mud pump and air compressor.

This compact, fully hydraulic drilling rig is designed for downhole and rotary drilling up to 200 meters. Lightweight, powerful and versatile, it uses air, foam or mud for rotation and drilling, depending on the conditions.

Technical data

Model RCS200W
Geology drilled All kinds
Drill depth 200 m
Drilling Diameter 90 -300mm
Drill system and operation Hydraulic
For rock 6-20F
Air consumption 17-35m³/min
Air pressure 1.7-3.0Mpa
Rotary head
Rotation Torque 4000-5000N.m
Rotation speed 80-200rpm
Lifting capacity 14000KGS
Pull down capacity 4000KGS
DRILL PIPE
Drill pipe length 2 meter
Drill pipe diameter 60/76/89 mm
MUD PUMP
Flow capacity 160 liter/min
working pressure 1.3MPA
DIMENSIONS
Transport size 2300*1200*1700mm
Weight 2300KGS
Diesel engine
Power 45KW Weifang Hengtong

Application:

This hydraulic water well drilling machine is widely used in industrial and agriculture water project,farm irrigation well drilling ,home use well drilling ,geothermal well drilling ,inspect well and other exploration borehole drilling.
