Specifications
Brand Name :
RanCheng
Model Number :
RCF220W
Certification :
CE, ISO 9001:2000
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100sets per Month
Delivery Time :
10-15 working days
Packaging Details :
It can be shipped by one 20" container
Name :
hydraulic wheel water well drilling rig
Max torque of rotary :
3400-4700Nm
Rotary speed :
45-70r/min
Hoisting force of winch :
1.5T
Description

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor

Machine Introduction

Our RCF220W wheeled water well drilling rig is a lightweight, efficient and versatile drilling equipment. The rig is mainly suitable for industrial and civil drilling, geothermal drilling, and has the advantages of compact structure, fast drilling speed, flexible movement and wide application range. Pneumatic water well drilling rigs are especially suitable for water extraction operations in mountainous areas and rock formations.

Made of high-quality materials, with a stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is more economical and durable, and has a high overall cost performance. Our water drilling rigs have received positive feedback from most customers and have been truly verified by the market.

Technical Parameters

Bore diameter(Hammer) 90-300mm
Bore depth 220m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Pipe diameter 76mm/89mm
Pipe length 1m,2m,3m
Lifting force 13T
Lifting speed 2.5m/min
feeding speed 0.5-5m/min
Fast lifting speed 24m/min
Fast feeding speed 35m/min
Max torque of rotary 3400-4700Nm
Rotary speed 45-70r/min
Hoisting force of winch 1.4T
Mud Pump flow 250L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 4×1.75×2.25M
Weight 5500Kg
Diesel engine 65KW Quanchai engine

Application

The rig is versatile and can be used with air compressors, mud pumps, and even dry hydraulic drilling methods. The rig is not only designed for water well drilling, but can also be used under various conditions depending on the purpose of the hole.

It is widely used in industrial and agricultural water conservancy projects, test wells and other exploration drillings. It is especially suitable for geothermal heating drilling, and is also suitable for various projects such as engineering foundation reinforcement and loose gravel rock drilling.

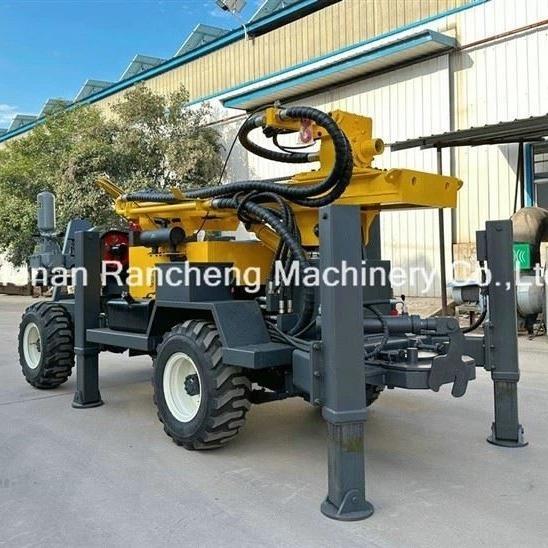

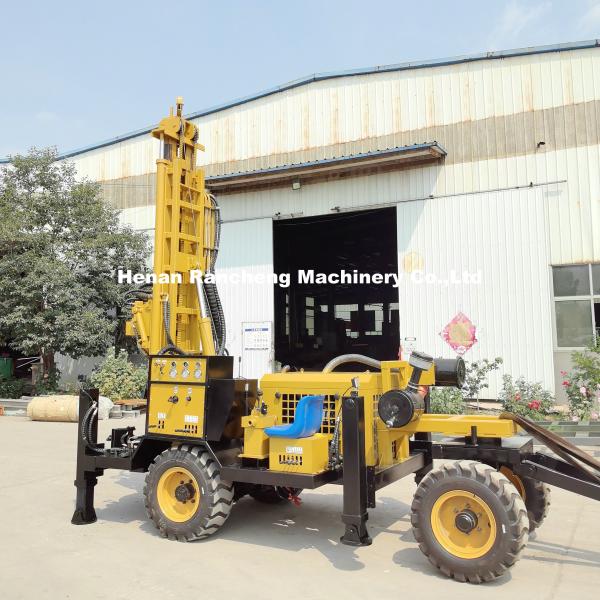

Machine Pictures

Trailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air CompressorTrailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air CompressorTrailer Type Water Well Drilling Rig 200m Drilling Depth Easy To Operate Both Mud Pump And Air Compressor
