Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Specifications
MOQ :
1pc
Surface Finish :
As-machined finish, anodizing / sandblasting optional
Place of Origin :
Guangdong, China
Processing Method :
5-Axis CNC Turning & Milling
Supply Ability :
10000pcs/month
Concentricity :
High concentricity, uniform wall thickness
Packaging Details :
EPE foam/ Anti-Rust Paper/ Stretch Film/ Plastic bag +Carton+Pallet
Payment Terms :
T/T
Thermal Conductivity :
High-performance for passive cooling
Delivery Time :
5-10 working days
Price :
Negotiable
Tolerance :
+/-0.01~0.005mm
Brand Name :
N/A
Material :
6061-T6 Aluminum Alloy
Description
Custom CNC Machined Aluminum Motor Heat Sink Housing, Ventilated Cooling Cavity Shell
Custom 5‑Axis CNC Machined Large‑Diameter Aluminum Ventilated Motor Heat‑Dissipating Housing
Quick Details
Item Specification
Material 6061‑T6 Aluminum Alloy
Processing Method 5‑Axis CNC Turning & Milling
Custom Service OEM & ODM, Made‑to‑order from drawings or samples
Surface Finish As‑machined finish, anodizing / sandblasting optional
Lead Time 7‑15 Working Days
Product Description

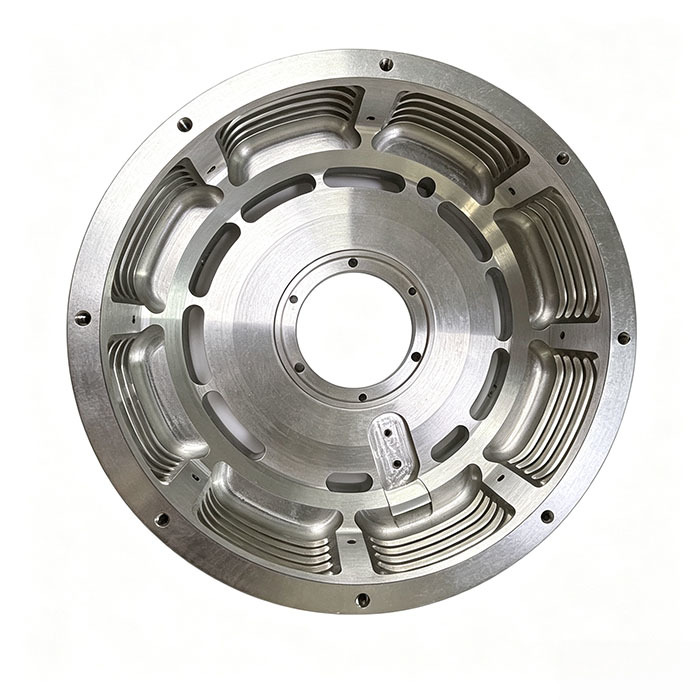

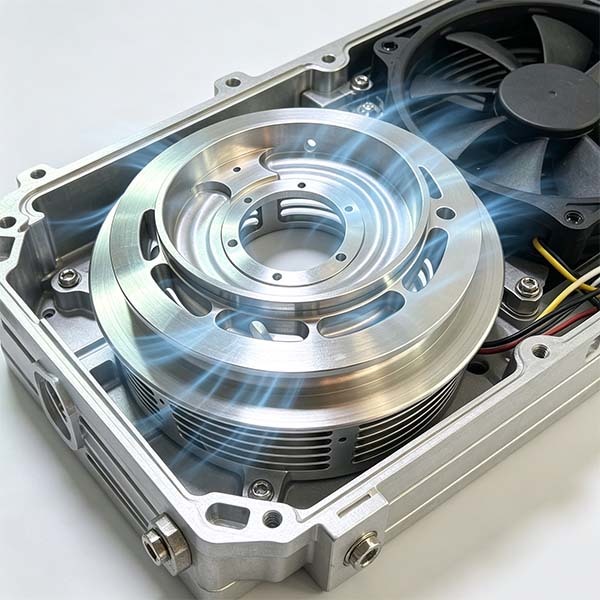

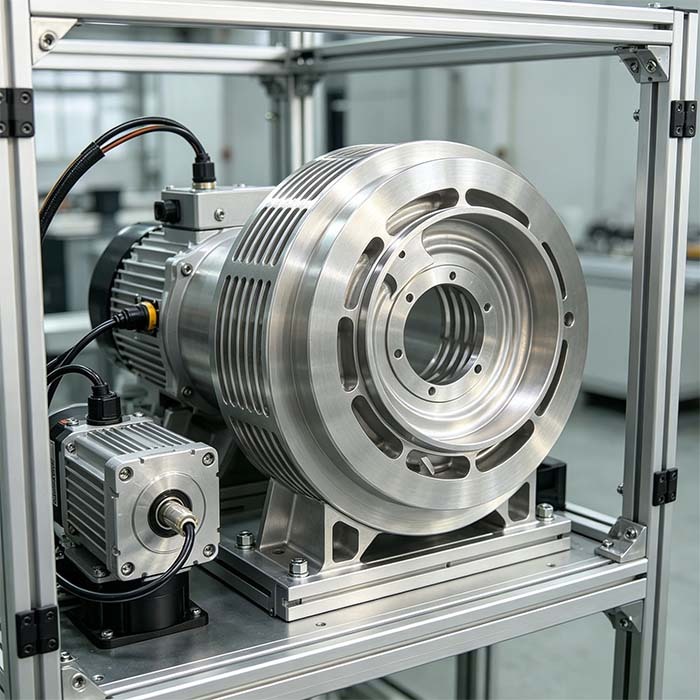

This large‑diameter ventilated aluminum housing is a one‑piece precision CNC‑machined cooling component, mainly applied for motor casings, drive assemblies, high‑heat automation machinery and thermal management systems.

Many large hollow aluminum cooling parts suffer from inconsistent wall thickness, offset mounting holes, rough‑edged ventilation slots and poor cooling efficiency. Our multi‑axis CNC machining process effectively solves these common points. All ventilation grooves, bolt holes and inner cavity structures are processed under strict tolerance control.

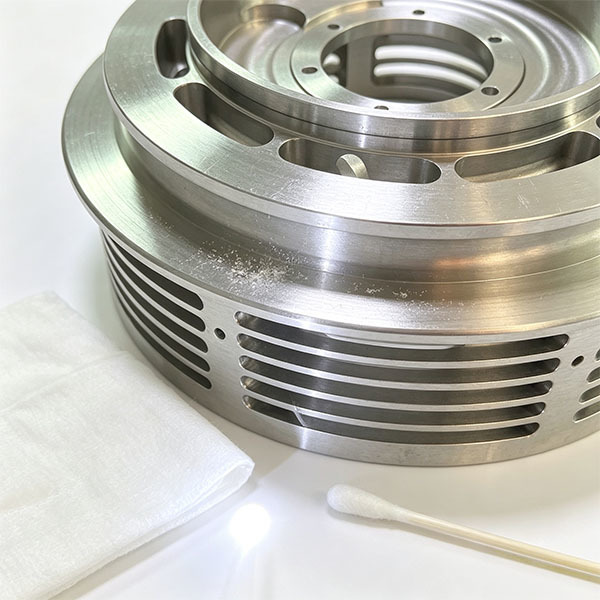

Circularly‑distributed long ventilated slots greatly expand air contact area. Excellent thermal conductivity of aluminum accelerates heat exchange, lowers the internal working temperature and extends the service life of motors and built‑in electronic parts.

Available Materials
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Aluminum Material:
2024, 5052, 5083, 6061, 6061-T6, 6063, 6082, 7075, etc.
Tolerance: +/-0.01~0.005mm
Surface treatment: oxidation, electrophoresis, sandblasting, electroplating, chemical treatment, painting, hard anodizing, heat treatment, etc.
Stainless Steel/Steel Material:
SUS303, SUS304, SS316, SS316L, 420, 430, 17-4PH, 1214L/1215/4140/SCM440/40CrMo, etc.
Tolerance: +/-0.01~0.005mm
Surface treatment: electroplating, galvanizing, spraying, oxidation, polishing, spray grinding, passivation, heat treatment, pickling, shot peening, etc.
Brass/Copper/Bronze Material:
HPb63, HPb62, HPb61, HPb59, H59, H62, H63, H65, H68, H70, H80, H90, C110, C120, C220, C260, C280, C360 etc.
Tolerance: +/-0.01~0.005mm
Surface treatment: electroplating, tin plating, spraying, oxidation, polishing, spray grinding, heat treatment, pickling, shot peening, etc.
Plastic Material:
Acetal/POM/PA/Nylon/PC/PMMA/PP/PVC/PU/HDPE/PVDF/Acrylic/ABS/PTFE/PEEK etc.
Tolerance: +/-0.01-0.005mm
Surface treatment: spraying, sandblasting, painting, pickling, alkali cleaning, anodizing, ion implantation, thermal transfer printing, engraving, etc.
Surface Treatment
Anodizing (various colors), hard anodizing, electrolytic polishing, chrome/nickel/zinc plating, PVD vacuum coating, wire drawing, sandblasting, laser engraving, screen printing, polishing, powder coating
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Product Advantages
  • High‑performance 6061‑T6 aluminum alloy, outstanding thermal conductivity for passive cooling
  • One‑piece 5‑axis CNC machining, high concentricity, uniform wall thickness & stable structure
  • Pre‑drilled mounting holes with precise positioning, fast and trouble‑free on‑site assembly
  • Optimized ventilation‑slot layout, maximizes air flow to achieve efficient heat dissipation
  • Fully customizable outer diameter, cavity depth, slot shape, hole layout and surface treatment
If you require custom aluminum motor cooling housings or other large‑size CNC hollow components, please send us your 2D/3D drawings or sample specifications. Our engineering team will send you a competitive quotation quickly.
Quality Assurance

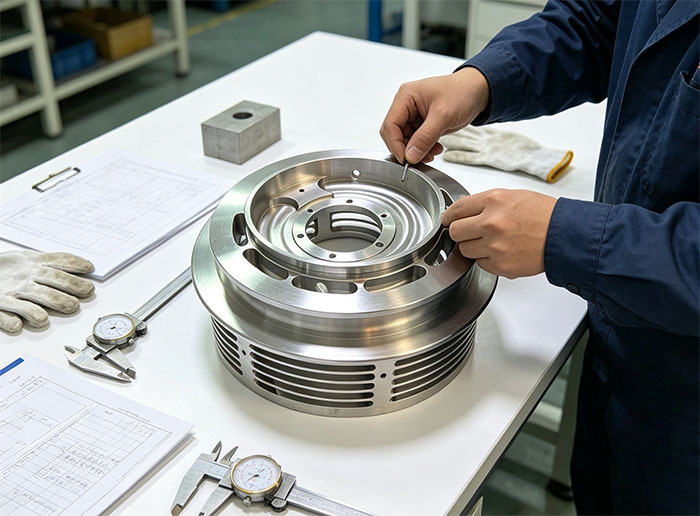

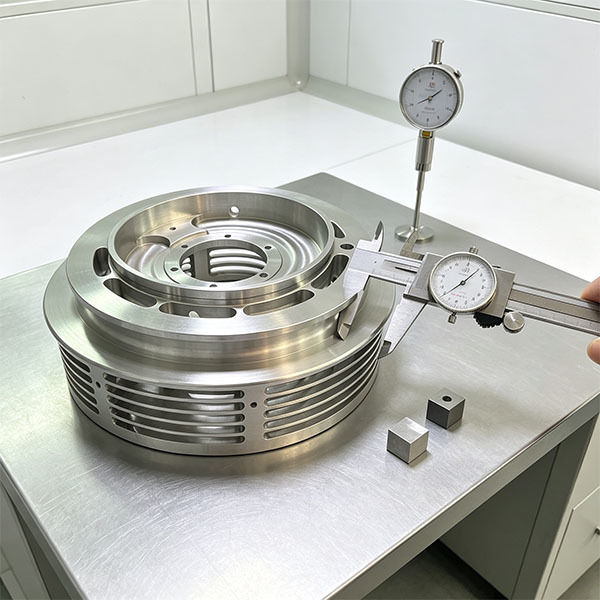

Every aluminum cooling housing undergoes full dimensional inspection before shipment. Our QC team checks concentricity, hole position accuracy, slot dimension and surface finish one‑by‑one. Inspection reports are available upon request for bulk orders.
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Packing

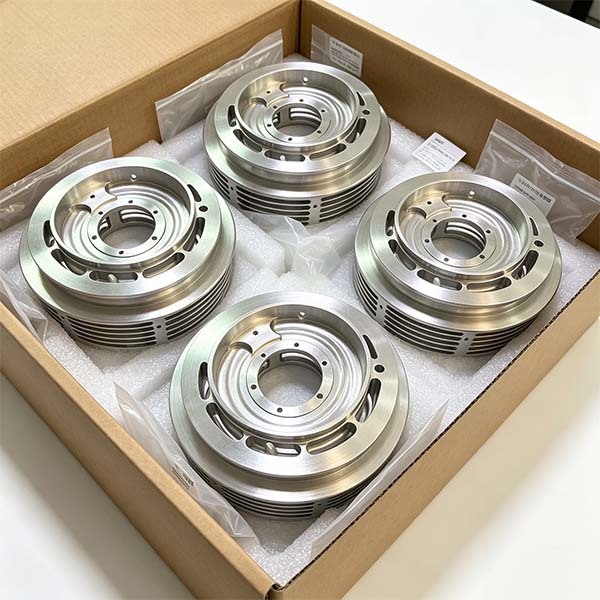

Every CNC‑machined part is carefully protected before shipment.

We wrap each workpiece with anti‑scratch protective film, then place it into shock‑resistant foam padding to avoid surface scratches, collision damage and dust contamination during transit.

All items are packed in sturdy corrugated cardboard boxes. Custom‑made inner foam is available for complex‑shaped precision components. A packing list with product specifications will be included inside the package for your inspection.

Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Application
Aerospace,Medical Equipment,Automation & Robotics,Automotive,Semiconductor & Electronics Parts,Hydraulic & Pneumatic Components ,Optical Instrument,New Energy Equipment
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Order Process
Custom CNC Machined 6061-T6 Aluminum Motor Heat Sink Housing with Ventilated Cooling Slots
Frequently Asked Questions
Q1: Can you modify the ventilation slot size and hole distribution on this aluminum housing?
A1: Yes, this product is fully custom‑made. We can adjust outer diameter, cavity depth, cooling‑slot layout and mounting‑hole positions according to your drawings.
Q2: What surface finishes are recommended for motor heat‑sink parts?
A2: Natural as‑machined finish offers the best heat dissipation. Clear anodizing is available for extra corrosion protection.
Q3: Are you able to produce large‑diameter aluminum housings beyond the sample size?
A3: We support custom‑machining of large‑size hollow aluminum parts, please provide your dimension requirements for evaluation.
