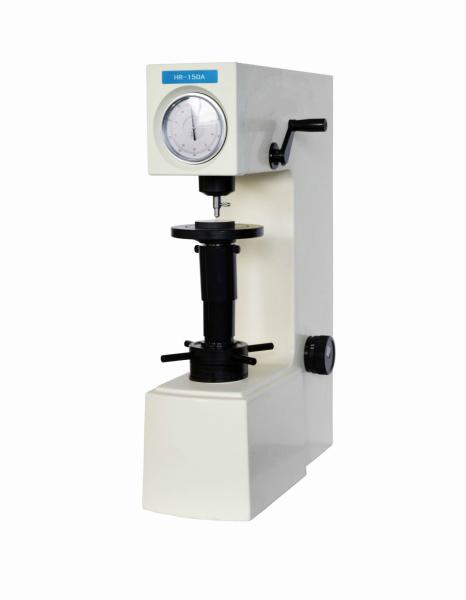

Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A
Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A
Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A
Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A
Specifications
Brand Name :
RAYTECH
Model Number :
HR-150A
Certification :
ISO CE
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500units per month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export Carton
Product Name :
Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A
Initial Test Force :
10kgf (98.07N)
Total Test Force :
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter :
Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method :
Manual
Resolution :
0.5HR
Description

Manual Load, Dial Hardness Reading, Not need Power

Supply Rockwell Hardness Tester HR-150A

Manual Load, Dial Hardness Reading, Not need Power Supply Rockwell Hardness Tester HR-150A

Main Function:

HR-150A Rockwell hardness tester is a popularly-used hardness testing instrument to measure

the Rockwell hardness of the materials. No need for power supply, the speed of the test force

loading is regulated by the buffer and the test force is regulated by the load-change hand wheel. It

has easy operation and stable performance, therefore it is widely used.

Application range:

Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable

cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.

Technical Specification:

Model

 HR-150A

Initial Test Force

 10kgf (98.07N)

Total Test Force

 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter

 Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method

 Manual

Hardness Reading

 Dial

Resolution

 0.5HR

Max. Height of Specimen

 175mm

Throat

 165mm

Execute Standard

 ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

Dimension

 520×245×700mm,Packing Dimension: 650×370×950mm

Weight

 Net Weight: 78kg,Gross Weight: 100kg

Packing List:

Name

 Qty Name Qty

Instrument Main Body

 1 set Diamond Rockwell Indenter 1 pc

ф1.588mmBall Indenter

 1 pc Middle Plane Test Table 1 pc

Large Plane Test Table

 1 pc V-shaped Test Table 1 pc

Hardness Block 60~70 HRC

 1 pc Hardness Block 20~30 HRC 1 pc

Hardness Block 80~100 HRB

 1 pc Weight A, B, C 3 pcs

Anti-dust Cover

 1 pc Usage Instruction Manual 1 copy
