Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors
Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors
Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors
Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors
Specifications
Brand Name :
RAYTECH
Model Number :
XXQ Series
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
500units/month
Packaging Details :
Standard Export Carton
Product Name :
Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors
X-ray tube :
Ditectional Glass Tube
Output voltage(kv) :
50-350
Max penetration (mm) :
7-60
Input (KW) :
1.2-3.5
Beam angle :
40 degree and 40+5degree
Description

Directional radiation portable X-ray flaw detector, Glass X ray tube,

XXQ series flaw detectors

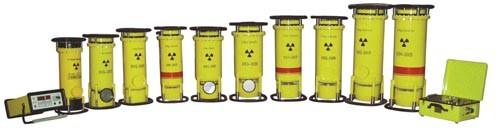

Directional radiation portable X-ray flaw detector, Glass X ray tube, XXQ series flaw detectors

XXQ series are suitable for the material directional of thin iron plate, aluminum, rubber and so on,

may get very good picture quality and clarity.

Feature:


●Checking the software and hardware itself after start the machine

●Excellent anti-jamming performance, which can adapt for field operation without power supply,

because of the motor supports

●Can adjust exposure parameters with keys ( easy operation.)

●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous

field

●Can adjust high voltage slowly for protecting X-ray generator

●Automatically controlling according to 1:1 working and rest operating way, the longest

continuous exposure period is 5 minutes.

●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-

sound alarming

●Convenient for repairing and maintenance

●Much more Substance for structure designing, much more convenient for local operation

●Time can be changed for±0.3 according to the power supply net to make the exposure more

precise

Specification:

Output voltage

(Kv)

Input

(KW)

Focus spot

(mm)

 Beam angle

Max penetration

(mm)

 Weight (KG) Dimensions (mm)
Generator Controller Generator Controller

XXQ-1005

 50-100 1.2 0.8X0.8 40° 7 8.5 11 Ф135x555 350x290x160

XXQ-1605

 60-160 1.5 0.8X0.8 40° 18 18 9.4 225x225x600 350x290x160

XXQ-2005

 100-200 2.0 1.5X1.5 40°+5° 29 22.5 9.4 280x280x650 350x290x160

XXQ-2505

 150-250 2.5 2.0X2.0 40°+5° 39 33.5 9.4 320x320x740 350x290x160

XXQ-3005

 170-300 3.0 3.5X3.5 40°+5° 50 42 18 335x335x835 350x290x160

XXQ-3205

 180-320 3.2 4.0X4.0 40°+5° 53 42 18 335x335x835 350x290x160

XXQ-3505

 200-350 3.5 4.0X4.0 40°+5° 60 43 18 335x335x835 350x290x160

Standard Delivery

Directional glass X-ray tube

 1 Pcs

Generator

 1 Set 　

High voltage joins cable

 1 Pcs 25 Meters

Controller

 1 Set 　

Power cable

 1 Pcs 10 Meters

Grounding cable

 1 Pcs 5 Meters

Accessories

 1 Set 　

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen 5

pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)
