Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Specifications
Brand Name :
Raytech
Model Number :
VM9091
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
5000units per month
Delivery Time :
5days
Packaging Details :
Standard Export Carton
Product Name :
Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
Accuracy :
+ 5% + 2 digits
Acceleration :
0.1 to 100 m/s2 / 10Hz~3kHz peak
Velocity :
0.1 to 250 mm/s / 10Hz~1000Hz RMS
Displacement :
1 to 3000 µm / 10 Hz~500Hz peak-peak
Enveloped Acceleration: :
0.1 to 25 unit / 5Hz~2kHz demodulated from 3kHz~10kHz
Temperature :
-33 to 220 oC
Weight :
100 g (Including battery)
Description

Multi-Parameter Machine Condition Checker, Vibration Meter,

Digital Vibration Tester VM9091

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Features:

1. Multi-parameter vibration, bearing parameter (acceleration envelope) & IR

temperature measuring

2. One button control power, parameter selection, measurement and holding.

3.​With remote switch and magnet base to avoid handheld problem to get reliable

and consistent data.

4. Measuring vibration velocity, displacement & acceleration envelope to check

machine/bearing health

5.With magnet base and remote switch

6.Sensor included, Easy to use.

7.Automatic power off. 4 digital LCD display

8.Metal case, Robust, Reliable

Specifications:

Accuracy

 + 5% + 2 digits
Measurement Range & Frequency response:

Acceleration: 0.1 to 100 m/s2 / 10Hz~3kHz peak

Velocity:0.1 to 250 mm/s / 10Hz~1000Hz RMS

Displacement: 1 to 3000 µm / 10 Hz~500Hz peak-peak
Enveloped Acceleration:

0.1 to 25 unit / 5Hz~2kHz demodulated from

3kHz~10kHz
Temperature

-33 to 220 oC
Battery

1/2 AA, 3.6V, 20-29mA, >100 hours of continuous

operation.
Pickup

Integrated accelerometer with extension stinger and

magnet base
Dimensions

110x35x17 mm
Weight

100 g (Including battery)

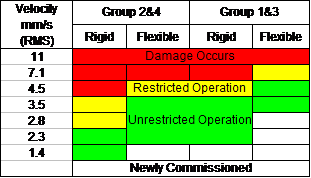

Best tool for machine health evaluation according to ISO 10816-2/3:

ISO 10816-3 Machinery Group 1-4

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

ISO 10816-2 Steam Turbines And Generators

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091

Multi-Parameter Machine Condition Checker, Vibration Meter, Digital Vibration Tester VM9091
