500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line
500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line
Specifications
Brand Name :
RAYFON
Model Number :
RABS-B
Place of Origin :
China
MOQ :
1
Delivery Time :
45 days
Packaging Details :
containers
Warranty :
1 year
Power (kw) :
120kw
Suitable Material :
ABS PS PP Bulky Plastics
Material :
Carbon Steel / SUS 304
Function :
shredding large plastics into small pieces
Production Capacity :
500-3000kg/h
Final Product :
Small plastic pieces
Equipment List :
Chain plate conveyor, shredder, screw conveyor crusher,iron remover
Voltage :
Customized based on request
Description

Plastic Automotive Parts ABS PS PP Household Appliance Waste Plastic Crushing Shredding Recycling Line

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line

Project Overview

The Plastic Shredding Recycling Line is an automated integrated system that combines shredding, conveying, sorting processes. It continuously and efficiently processes bulky, loose, and compositionally complex waste plastics (such as large appliance housings, automotive parts, and bulk packaged mixed plastics), ultimately producing uniform plastic flakes ready for pelletizing or high-value applications. This line is specifically engineered for large-scale, continuous processing of mixed and contaminated plastic waste.

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line

Process Introduction

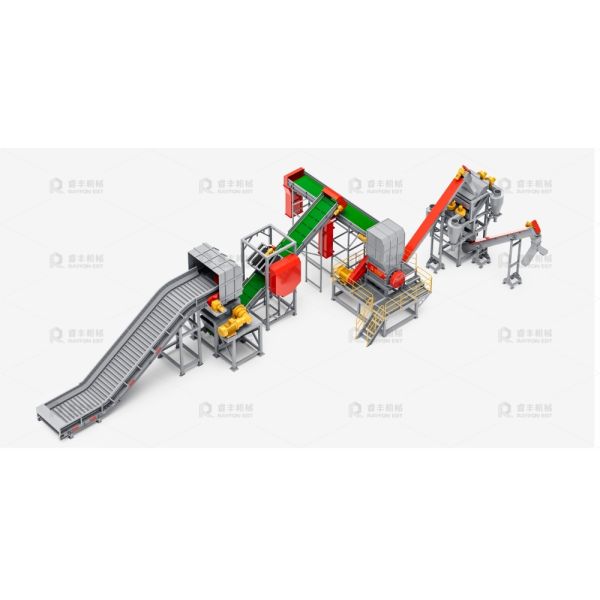

The line starts with a Chain Plate Conveyor feeding whole plastic items into a Dual-Shaft Shredder for primary size reduction. An Over-Belt Magnetic Separator then removes ferrous metals, after which the material enters a Closed Crusher for final granulation into uniform flakes. Finally, an Enclosed Screw Conveyor transfers the prepared flakes to the next stage, ensuring a dust-minimized and automated workflow.

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line

Technical Parameters

Model Power Throughput Footprint(L*W*H) Manual
RFABS-500 120kw/150HP 500KG/H 42000*2000*3500mm 1-2
RFABS-1000 160kw/150HP 1000KG/H 42000*2000*3500mm 1-2

Key Features & Technological Advantages

1.Powerful Pre-Shredding Capability:Handles large, irregular plastics with a heavy-duty dual-shaft shredder for versatile feedstock processing.

2.Automatic Metal Removal:Integrated magnetic separator removes ferrous contaminants in real-time to protect equipment and enhance product purity.

3.Precision Granulation:Closed-cell crusher ensures high-efficiency grinding into uniform, clean-sized flakes for optimized downstream processing.

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line

Finished Product

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line

Applications of Output Plastic Pieces

Injection Molding and Extrusion Profiles

Blended Feedstock for Added-Value Applications

500-3000kg/H PP ABS PS Plastic Recycling Machine Integrated Waste Shredding Recycling Line
