High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile
High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile
Specifications
Brand Name :
RayLaser
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Sets/M
Delivery Time :
7-30days
Packaging Details :
Wooden
Application :
LASER CUTTING
Applicable Material :
Metal
Condition :
New
Laser Type :
Fiber Laser
Cutting Area :
1500mm*3000mm
Cutting Speed :
0~100m/min
Graphic Format Supported :
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness :
0~30mm
CNC or Not :
Yes
Cooling Mode :
WATER COOLING
Control Software :
CYPCUT
Laser Source Brand :
MAX Raycus
Laser Head Brand :
Raytools
Servo Motor Brand :
Yaskawa
Guiderail Brand :
HIWIN
Control System Brand :
Cypcut
Weight (KG) :
3500 KG
Key Selling Points :
High Productivity Low Maintenance
Optical Lens Brand :
Wavelength
Warranty :
3 years
Applicable Industries :
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Construction works , Energy & Mining, Other, Advertising Company, fabricating, bicycle
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
3 years
Core Components :
Pressure vessel, Motor, Gear, Gearbox, Engine, PLC, quality brighter laser, Experienced Assembling technique
Mode of Operation :
continuous wave
Configuration :
gantry type
Products handled :
Sheet Metal
Feature :
Programmable Servo Motor
Performance :
Top Performance
Speed :
Quick Fast
Precision :
Accuracy
Maintenance :
Low Cost
Expericed Assembling Technique :
Reliable Quality
Experienced After Sales Service :
Solution and training offered
Design :
No Deformation
Description

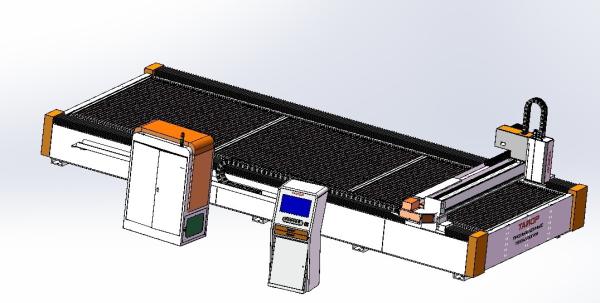

High-Precision Single-Table Fiber Laser Cutter | 6kW–50kW | IPG/CYPCUT 6000E | EU/US/Chile

Unlock Industrial Productivity with Raylaser’s Single-Table Fiber Laser Cutting Systems
Shanghai Raylaser delivers cutting-edge single-table fiber laser machines engineered for workshops prioritizing precision, adaptability, and ROI.

Featuring IPG, Raycus laser sources, Auto Focus Cutting Heads, and the advanced CYPCUT 6000E CNC system, our solutions are optimized

for metal fabrication across the EU, USA, and Chile.



High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile

High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile
High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile


Core Features & Advantages

  1. Power & Versatility

    • Laser Power: 6,000W–50,000W range for cutting mild steel (up to 120mm), stainless steel, aluminum, and copper.

    • IPG Light Source Option: Industry-leading beam quality for superior edge finish and speed.

  2. Precision Engineering

    • Positioning Accuracy: ≤0.03mm with Auto Focus Cutting Head technology.

    • Independent Cutting Table: Isolates thermal distortion, extending machine life and maintaining accuracy.

  3. Customizable Productivity

    • Cutting Area: Tailored to workshop space and throughput needs.

    • Dual-Gantry Option: Double output with synchronized gantries (optional).

  4. High-Speed Performance

    • Max Speed: 180m/min | Max Acceleration: 4G (optional).

    • CYPCUT 6000E Control System: Intuitive operation, real-time monitoring, and nested optimization.

  5. Reliability & Low TCO

    • New Frame Design: Minimizes vibration and deformation.

    • Global Support: 24/7 remote assistance, maintenance planning, and cost-effective consumables.

Technical Specifications

Parameter Specification
Laser Source Options IPG, Raycus, Max, BWT, Boci
Laser Power Range 6,000W – 50,000W
Cutting Speed 80–180 m/min
Positioning Accuracy ≤0.03 mm
Repositioning Accuracy ≤0.03 mm
Control System CYPCUT 6000E
Cutting Head Auto Focus Cutting Head
Table Design Custom-length, thermally isolated frame
High-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/ChileHigh-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/ChileHigh-Precision Single-Table Fiber Laser Cutter 6kW–50kW IPG/CYPCUT 6000E EU/US/Chile

FAQ Highlights

Q: Which laser source is recommended for aerospace-grade aluminum?
A: IPG lasers provide optimal beam quality for non-ferrous metals.

Q: Can the machine integrate with automated loading systems?
A: Yes – our custom table lengths (e.g., 6m/12m/20m) support automation.

Q: How does the CYPCUT 6000E improve efficiency?
A: It offers AI nesting, collision avoidance, and remote diagnostics.

Q: Do you provide on-site training in Chile/US/EU?
A: Free factory training (1–3 days) + 24/7 online support.

Q: What certifications do you hold?
A: CE, FDA, and ISO 9001 compliance.

Why Choose Raylaser?

  • 16+ Years Expertise: Core team in industrial laser applications.

  • Five-Star Service:
    ✅ Installation & TPM consulting
    ✅ OEM-grade consumables at low cost
    ✅ OEE improvement programs

  • Global Presence: Dedicated support hubs in the EU, Americas, and APAC




Five Star Service

1) The detailed and reliable Installation Recommendations
2) The useful tips and tricks for high Machine Utilization like a pro
3) The Periodic Maintenance Planning and Checkpoints
4) The Low cost but original quality consumable supply
5) The free consultation for professional TPM and OEE Improvement
