99.9%-99.9999% Rare Metal Gallium Ga Semiconductor Dopant NdFeB Magnet Additive
99.9%-99.9999% Rare Metal Gallium Ga Semiconductor Dopant NdFeB Magnet Additive
Specifications
Supply Ability :
5000 kg
MOQ :
500g
Packaging Details :
0.5-1 kilogram per bottle, 50 kilograms per drum, 500 kilograms per pallet
Delivery Time :
45-60 Workdays
Payment Terms :
T/T
CAS # :
7440-55-3
Molecular Formula :
Ga
EC No. :
231-163-8
Purity :
99.9-99.9999%
Molecular Weight :
69.72
Appearance :
Silvery
Melting Point :
29.78 °C
Boiling Point :
2403℃
Density :
5.91 g/cm3
Electrical Resistivity :
Electrical Resistivity
Electronegativity :
1.81 Pauings
Heat of Fusion :
5.59 kJ/mol
Heat of Vaporization :
254 kJ/mol
Poisson's Ratio :
0.47
Specific Heat :
0.089 cal/(g·K) (25 °C)
Tensile Strength :
N/A
Thermal Conductivity :
0.281 W/cm·K (302.93 K)
Thermal Expansion :
(25 °C) 18 µm·mol -1 ·K -1
Vickers Hardness :
N/A
Young's Modulus :
9.8 GPa
Description

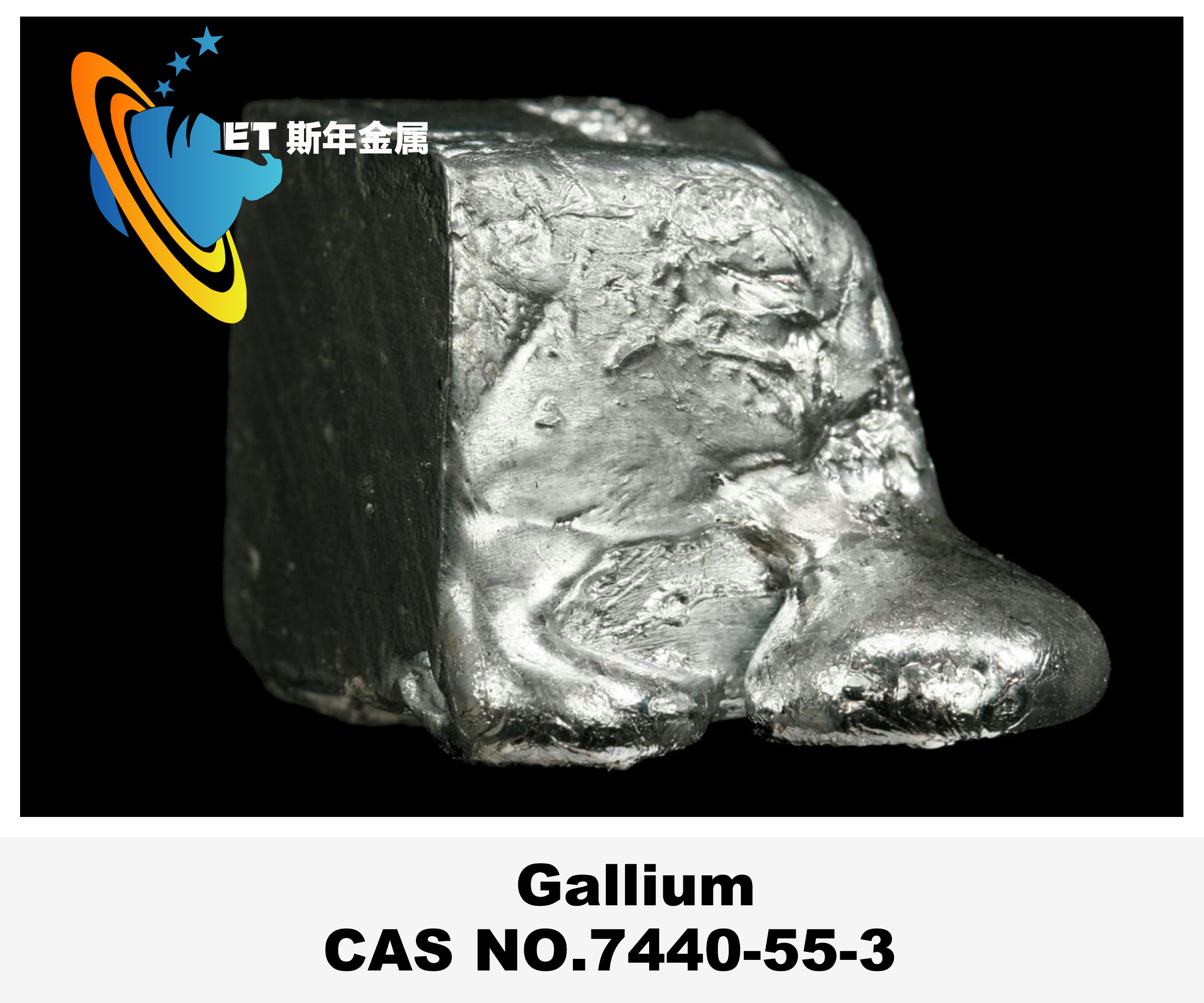

Gallium (Ga): Semiconductor Dopant, NdFeB Magnet Additive, and Low-Melting-Point Alloy Component

Gallium is a chemical element with symbol "Ga" and atomic number 31, belonging to Group 13 of the periodic table. As a post-transition metal, it shares similar characteristics with aluminum, indium and thallium. In nature, it typically exists in trace amounts within zinc ores and bauxite. At standard temperature and pressure, gallium is a soft, silvery metal that becomes brittle at lower temperatures. It turns to liquid above 29.76°C (85.57°F), meaning it melts in human hands (normal body temperature being 37°C (99°F)).

Applications

  1. Used in gallium alloys for thermometers
  2. Serves as additive in neodymium-iron-boron magnetic materials
  3. Functions as dopant in semiconductor substrates

Product Series

Product

Product Code

Safety Data

Technical Data

Gallium 99.99%

ET-GaM-01

 Gallium.pdf Gallium Metal 99.99.pdf

Gallium 99.999%

ET-GaM-02

 Gallium Metal 99.999.pdf

Health and Safety Information

Signal Word Warning
Hazard Statements H290
Hazard Codes N/A
Precautionary Statements P234-P390-P406
Flash Point N/A
Risk Codes N/A
Safety Statements N/A
RTECS Number LW8600000
Transport Information UN 2803 8/PG 3
WGK Germany 3
GHS Pictograms 99.9%-99.9999% Rare Metal Gallium Ga Semiconductor Dopant NdFeB Magnet Additive

Packaging Specifications

  • Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags
  • Sample packaging: 500 g/bag, 1 kg/bottle

About Gallium

Gallium is obtained as byproduct of aluminum and zinc smelting processes, though little is extracted from sphalerite. Most gallium is derived from crude aluminum hydroxide solutions in the Bayer process. Through mercury cell electrolysis and sodium hydroxide amalgam hydrolysis, sodium gallate is obtained, which is then electrolyzed to produce gallium. Semiconductor-grade gallium requires further purification via zone melting or single crystal extraction from melts (Czochralski method). 99.9999% pure gallium is routinely obtained and widely used commercially.

Industrial production uses industrial-grade gallium as raw material, with further purification through:

  • Electrolysis
  • Reduced-pressure distillation
  • Fractional crystallization
  • Zone melting

Electrolytic Method:
Uses 99.99% industrial-grade gallium as feedstock. Through electrolytic refining and other Chemicalbook processes, produces ≥99.999% pure gallium.

Ultra-Purification:
Using ≥99.999% high-purity gallium as feedstock, through single crystal growth or other purification methods, produces ≥99.99999% pure gallium.
