Specifications
Brand Name :
JINSP
Model Number :
SR75C
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD1200- USD1300
Payment Terms :
T/T,Western Union
Supply Ability :
100 PCS/70-90 days
Delivery Time :
30-50 working days
Packaging Details :
Customized Packaging
Wavelength Range :
200nm-1100nm
Detector type :
Linear array CMOS, Hamamatsu S11639
Optical design :
Type M C-T light path
Grating slits :
10μm, 25μm, 50μm, 100μm, 200μm (customizable)
Weight :
310g
Dimension :
110mm*95mm*43mm
Interface :
USB 2.0
Optical Interface :
FC/PC or SMA905
Description

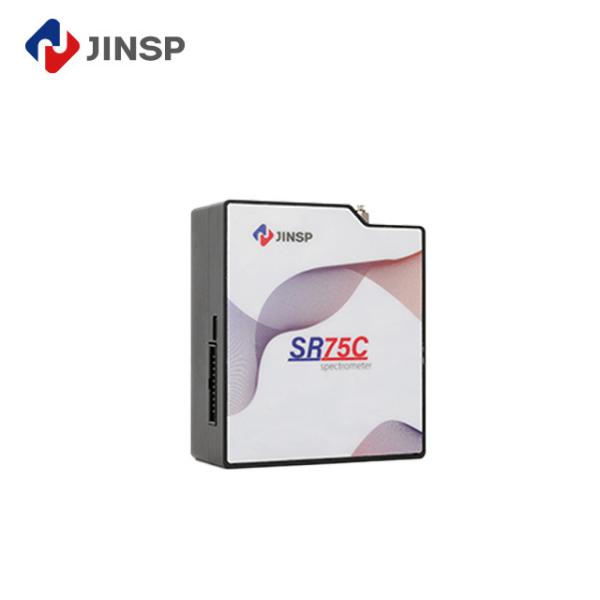

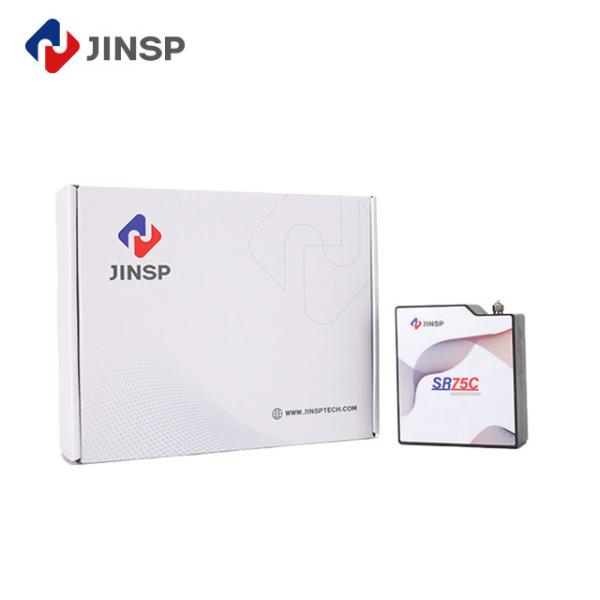

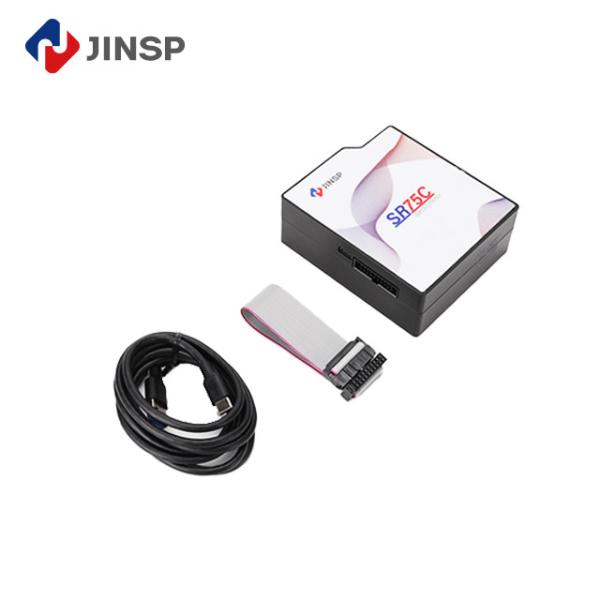

Miniature Fiber Optic Modular Spectrometer JINSP SR75C

JINSP’s SR75C is a high-performance fiber optic spectrometer built for accuracy and adaptability. It utilizes a sensitive CMOS detector to measure light from 200nm to 1000nm, ideal for absorption and transmission studies. The optical system is engineered to minimize distortion, offering exceptional resolution and signal-to-noise ratio.

Suitable for industrial and scientific applications, the SR75C aids in mineral detection, organic pollutant tracking, and real-time emission monitoring. Its integrated temperature compensation and versatile connectivity make it a robust choice for continuous operation in diverse environments.

Product Parameters:

Performance Indicators

Parameters

Detector

Chip Type

Linear array CMOS, Hamamatsu S11639

Effective Pixel

2048

Pixel Size

14μm *200μm

Sensing Area

28.7mm *0.2mm

Optical
Parameters

Optical Design

M Type C-T light path

Numerical Aperture

0.085

Entrance Slit Width

10μm, 25μm, 50μm, 100μm, 200μm
(customizable)

Spectrum Range and Resolution

See model table for details

Fiber Input Interface

SMA905, free space

Electrical
Parameters

Integration Time

1ms-60s

Signal-to-Noise Ratio

650:1 (4ms)

Data Output Interface

USB 2.0 or serial port

ADC Bit Depth

16-bit

Power Supply

DC 4.5V to 5.5V (type @5V)

Operating Current

< 500mA

Others

Operating Temperature

10°C ~ 40°C

Storage Temperature

-20°C ~ 60°C

Operating Humidity

＜90%RH (no condensation)

Dimensions

110mm*95mm*40.5mm

Weight

310g

Model

Spectral Range (nm)

Resolution (nm)

Slit (μm)

SR75C-G02

510~1000
(VIS-NIR)

0.8

25

0.5

10

SR75C-G04

SR75C-G06

SR75C-G07

SR75C-G08

SR75C-G09

SR75C-G10

200~450(UV)
330~570(VIS)

550~750(VIS)

750-900(NR)

0.3-0.5

25

0.2-0.3

10

180~340( UV)
500~600(VIS)

0.3

25

0.15~0.2

10

* Customization available for other ranges

Typical Applications:

  • Absorption, transmittance, and reflectance detection In ultraviolet, visible, and near-infrared range;
  • Detection of light source and laser wavelength;
  • OEM product module:

LIBS – analysis of soil and minerals for geological testing and mining-related work

Online monitoring of water quality and environmental protection - organic matter and oxygen content in water

Flue gas - Monitoring and identification of flue gas emission components

Technical Characteristics:

  • Wide Spectral Range Supports customized spectrum range of 200-1000nm
  • High Signal-to-Noise Ratio Low-noise CMOS signal processing circuit, with excellent signal-to-noise ratio
  • High Resolution M-shape C-T optical design
