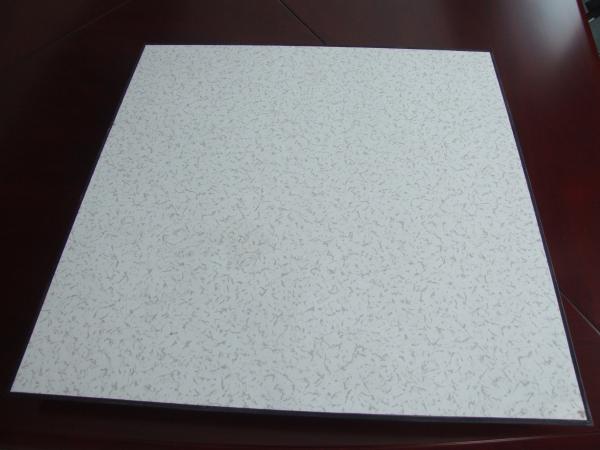

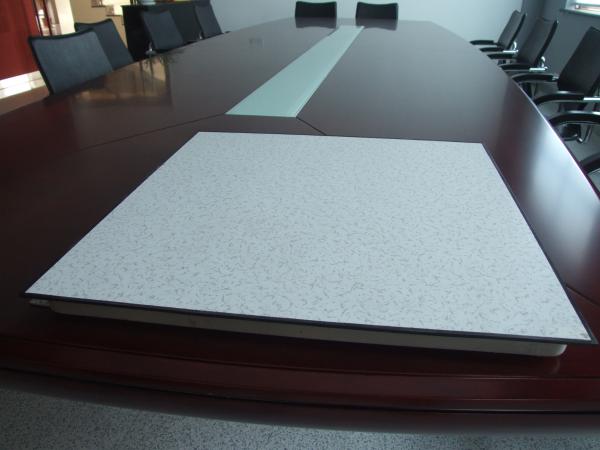

Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm
Specifications
Place of Origin :
Changzhou City China
Brand Name :
FangSheng
Certification :
ISO9001
MOQ :
500 Square Meter/Square Meters
Packaging Details :
Wood pallet ,boxes
Delivery Time :
Prompt
Payment Terms :
T/T or L/C
Supply Ability :
2000㎡/Day
Description

Anti-static Elevated Raised Access Floor System 600 x 600 x 35 mm/ 610 x 610 x 35 mm


1.ISO9001
2.Brand name:Fangsheng.
3.widely used in computer rooms
4.Size:600x600x35/610x610x35mm

Changzhou Fangsheng anti-static raised access floor system is made up by drawing the high quality steel plate with spot welding, spraying plastic and the lumen is filled with froth cement; its surface affixes the decorating plate of high temperature resistant and non-flaming; it around is setting the electric filler rod, bracket, handle girder with whole galvanization; the height of bracket can be adjustable with auto-locking function.

Character:

Whole steel combination framework with strong intension and shockproof ability
High size precision and good interchangeability
Arbitrary incise the floor and convenient install fittings
Disposal of anti-electrostatic spraying plastic on the surface and good corrosion resistance
Fireproofing, anti-electrostatic and dustproof
Fixed around and convenient installation
The nether part can be used as airiness for air-conditioning.
For the overweight equipment, it can solve the overload problem only with adding bracket under the floor.
Convenient dismounting with only replacing decorating wainscot and it can be repeated used.
It can affix different wainscot according to different occasions and different request from clients.

Specification :

Type

Size

(mm)

Concentrated Load(deflection=2mm)

Uniform Load

(N/m2)

Ultimate Limit Load (N)

System Resistor(Ω)

International

National Standard SJ/T10796

Ib

N

Kg

FS450

HDG600

HDG610

600x600x30

≥450

≥1960

≥200

≥8850

≥5900

1X106

~

1X1010

FS680

600x600x30

≥680

≥2950

≥300

≥12500

≥8250

600x600x35

610x610x35

FS800

600x600x35

≥800

≥3550

≥360

≥15000

≥10650

610x610x35

FS1000

600x600x35

≥1000

≥4450

≥450

≥23000

≥13350

610x610x35

FS1250

600x600x35

≥1250

≥5560

≥568

≥33000

≥16680

4.Application: Be applied in all kinds of computer rooms widely, especially in school's computer rooms such as in multimedia classrooms, computer rooms, etc.
