Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Specifications
Brand Name :
YUEXIN
Place of Origin :
Guangdong, China
Model Number :
YX-IPX1-8+IPX6X-23
MOQ :
1
Price :
$33,698.65-36,231.87
Power supply :
220V/380V
Material :
SUS 304 Stainless Steel
Weight :
1000kg
Dimension :
5600*3900*3200(mm)
Lower turntable diameter :
800mm
Upper table diameter :
400mm, 200mm
Max load :
50KG
Turntable lift height :
450-800 mm
Tilt of turntable :
0° or 15°
Turntable speed :
1-5r/min
Rainfall rate :
1~1.5mm/min (IPX1); 3~3.5mm/min (IPX2)
Swing angle :
120º (IPX3), 350º (IPX4)
IPX5 spray volume :
12.5±0.625 L/min
IPX6 spray volume :
100±5 L/min
Pressure adjustment range :
0-0.3Mpa
Description
Product Description
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Professional Rain Test Chamber with SUS 304 Stainless Steel IEC60598 Standard and 220V/380V Power Supply
Specification
Equipment function:
The main function of this device is to test the physical and other related performance of electronic and electrical products, lamps, cabinets, electrical components, cars, motorcycles, and their components under simulated weather conditions such as rain, splashing, and water spraying. After testing, the performance of the product is determined through verification to determine whether it meets the requirements, in order to facilitate product design, improvement, verification, and factory inspection.
Model
YX-IPX1-8+IPX6X-23
Lower turntable diameter
800mm
Upper table diameter
400mm、200mm
Max load of turntable
50KG
Turntable lift height
450-800 mm (height from top to bottom)
Tilt of turntable
0°or15°
Speed of turntable
1 -5r/min(accurate adjustment)
Turntable rotation mode
Continuous forward rotation/alternating forward and reverse rotation/intermittent rotation
Method of flow volume adjustment
Automatic adjustment of flow sensor
Testing time
0-999 min
Technical Parameter of IPX1/2
Area of rain panel
1000*1000mm
Dimension of IPX12 spray nozzle
Diameter :0.4mm
Distance between spray nozzle
20*20 mm
Rainfall
1~1.5mm/min（IPX1）；3~3.5mm/min（IPX2）
Lift of rain panel
Non lifting (fixed)
Technical Parameter of IPX3/4
Radius of swing pipe
R1000mm
Flow of R400 swing pipe
3.5L/min±5%（IPX3）；4.3L/min±5%（IPX4）
Dimension of spray nozzle
0.4mm
Distance between spray nozzle
50mm
Inner diameter of swing pipe
15mm
Swing angle
120º(IPX3, 350º(IPX4)or self definiton
Swing speed
240° forward and back 4S; 720°forward and back12S(accurate)
Technical Parameter of IPX5/6
IPX5 spray nozzle
6.3mm
IPX6 spray nozzle
12.5mm
IPX5 spray volume
12.5±0.625
IPX6 spray volume
100±5L/min
Water Pressure(Mpa)
According to requirement to adjust
Spray distance
2.7meter(Distance between spray nozzle to center of turntable)
Spray gun swing drive
Stepping motor
Technical Parameter of IPX7/8
Technical Parameter of IPX5/6
Inner size
Φ500×H1200mm
Wall thickness of the Tank
4mm
Tank Material
304 stainless steel material
Pressure control mode
Automatic adjustment
Pressure error value
±0.002 Mpa
Pressure display accuracy
0.001Mpa
Test water depth
0-30m
Pressure adjustment range
0-0.3Mpa
Company Profile

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.

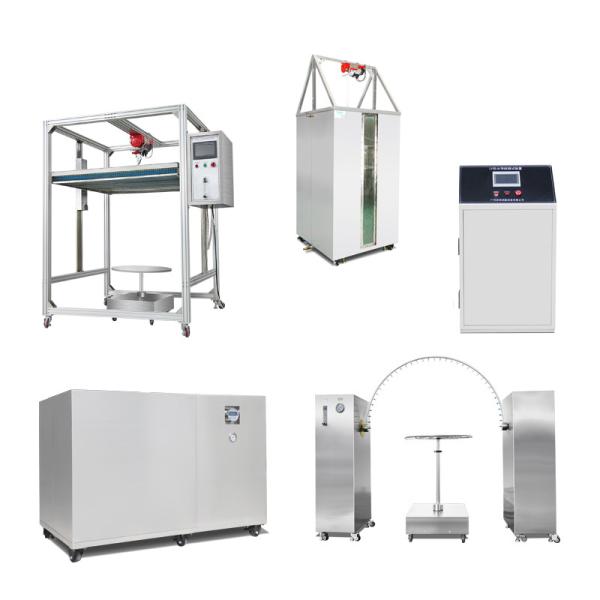

The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.
Warmly welcome you to visit our factory!
FAQ
1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?
Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.

2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English. Other languages can be customized according to the needs of users.
