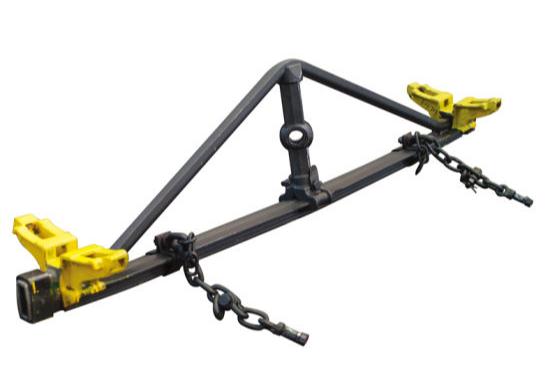

Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Modular Combined Structure Railcar Bogie Railway Brake Beam
Specifications
Brand Name :
Railteco
Place of Origin :
China
MOQ :
One pcs
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
According to customer's demand
Delivery Time :
30-45 days
Packaging Details :
Railteco Standard Packing
Name :
Railway Brake Beam
Fatigue lifetime :
> 1 million times
Manufacturing Process :
V Casting
Material for brake beam racks :
45# steel
Material for brake block base :
steel Grade B
Grain size :
> Grade 8
Description

Railway Brake Beam Railcar Bogie Parts Modular Combined Structure

Description of Railway Brake Beam:

Brake beam of railway vehicle is the most important part of the foundation brake device, mainly to the vehicle braking, the braking force to the brake shoe brake beam passing through, to stop a vehicle. Brake beam is divided into tension rod brake beam, steel brake beam, composite brake beam.

Brake Beam Features:

1. With a modular, combined structure, the entire brake beam is assembled by several components.

2. Brake beam frame is a kind of arched beam formed by cutting and drawing the special-shaped steel of special shape.

3. The U-shaped end of the front end of the strut is supported on the front pole portion of the brake beam, and the rear end of the strut and the clip are both U-shaped interfaces, which are clamped together on the rear rod portion of the brake beam.

4. The brake beam frame is loaded into the stop hole of the brake shoe holder by pressure assembly.

5. Non-metal sliding block wear plate is adopted.

Specifications of Railway Brake Beam:

Product name Railway Brake Beam
Low temperature impact toughness -40℃Akv≥27 J
Fatigue lifetime > 1 million times
Surface Treatment Galvanized or painted
Manufacturing Process V Casting
Material for brake beam racks 45# steel
Material for brake block base Steel Grade B
Yield strength > 440 Mpa
Low temperature ballistic work > 120J
Decarburized surface layer ≤0.3mm
Grain size > Grade 8

Modular Combined Structure Railcar Bogie Railway Brake Beam
