Specifications
Brand Name :
Zhongyue
Model Number :
E Type Elastic Clip
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
2000T per month
Delivery Time :
15-30 days after order confirmation
Packaging Details :
Export Carton or as customer requirement
Material :
60Si2MnA
Dimensions (L x W x H) (mm): :
according to drawing or samples
QC :
TUV, SGS, ISO9001
Specification :
According to drawings

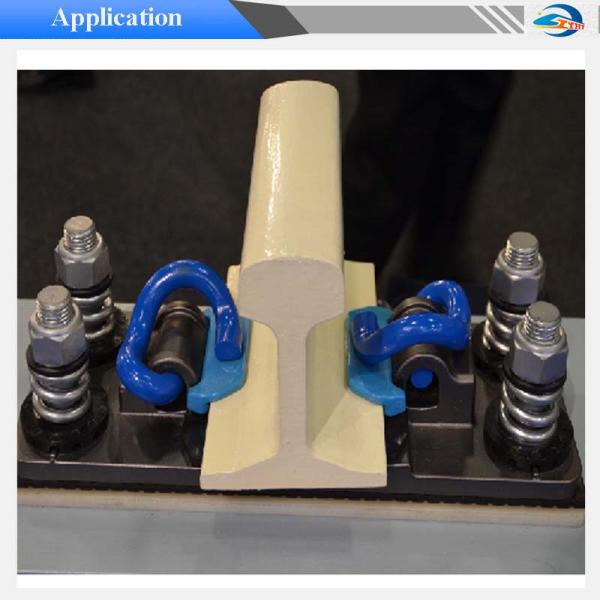

application :
Rail Track Construction
Warranty :
2 years
Surface Treatment :
Plain oiled
Customized :
According to drawings
Description

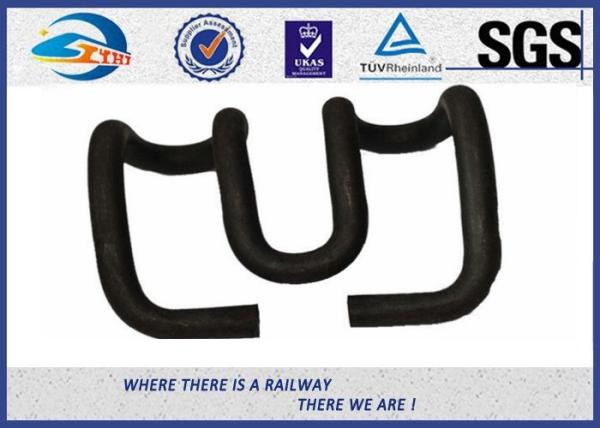

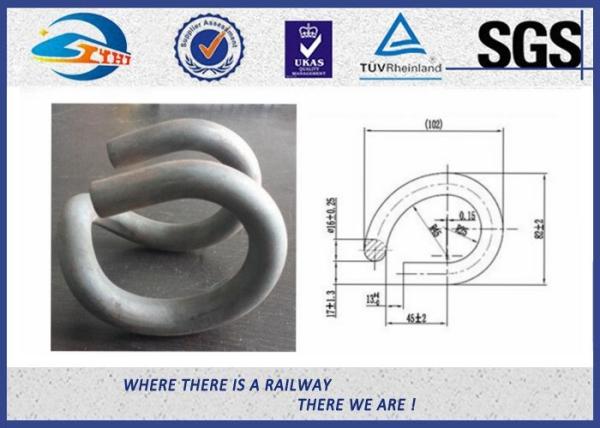

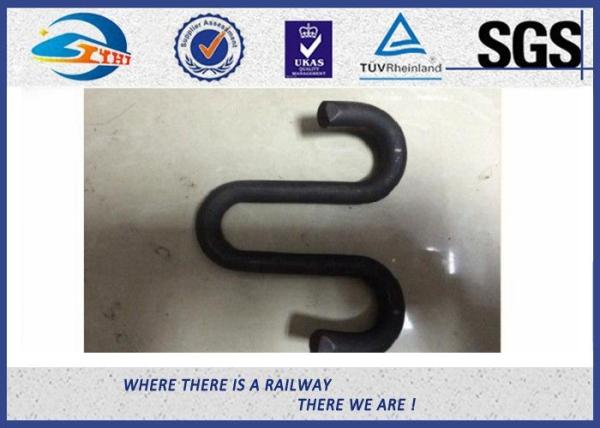

Zinc plated E clips,Rail elastic clip,Elastic clip for railroad construction

1. Type: e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309.... Raw material: 60Si2MnA
2. Surface: plain (oil). Black

Brand

Zhongyue

Name

Zinc plated E clips,Rail elastic clip,Elastic clip for railroad construction

Type

E clip (e1809, e2006,e2007,e2009,etc)

Skl clip (skl1,skl3,skl12,skl14)

Or the type by customers’ drawings

Material

60Si2MnA

60Si2CrA

55Si2Mn

38Si7

Chemical composition(%)

C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03

C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03

C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03

C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03

Hardness

For e clip: 44-48HRC

For skl clip: 42-47HRC

Fatigue life

for Dia.18 is 3 millions cycles without breaking

for Dia.20 is 5 millions cycles without breaking

Surface

plain (oiled), Oxide black, color painting

Standard refers

DIN17221, BS970, GB/T1222

Oxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad ConstructionOxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad Construction

We can provide products as following :

1. E clip

Type :e1609. e1809. e1817. e2055. e2056. e2009. e2001. e2006. PR401. PR309....

Raw material : 60Si2MnA
Surface : plain (oil ). black paint . colour paint .zinc .hdg etc.
2. Rail clip/Tension clamp

Type : skl1. skl3. skl12. skl14
Raw material : 38Si7. 60Si2CrA
Surface: plain (oil ). black paint . colour paint . zinc .hdg etc.
3. Screw spike/Sleeper screw

Type : Ss5. Ss8. Ss25 . Ss36 ... all kinds available according to customers drawings and samples .
Raw material : Q235. 35#.45# . 40Mn2. 20Mnsi
Grade : 4.6.5.6.8.8
Surface: plain (oil ). black . zinc .hdg etc.
4.Dog spike/Railroad spike

Type : All kinds available available according to customers drawings and samples .
Raw material : Q235 .
Surface : plain (oil)
5.Clip bolt/ T bolt /Rail bolt/Clamp bolt /Inserted bolt/Track bolt/Fish bolt/Square bolt

Type : All kinds available available according to customers drawings and samples .
Raw material: Q235. 35#.45# . 40Mn2. 20Mnsi .35CrMo. 40Cr. 42CrMo
Grade : 4.6.4.8.5.6.8.8.10.9.12.9
Surface : plain (oil ). black . zinc .hdg etc.
6. Tie plate /Base plate /Rail plate/Rail fixing base

Type : All kinds available according to customers drawings and samples .
Raw Material : QT400-15 .QT450-10 .QT500-7. ZG25 .ZG35. ZG45
Surface : plain (oil)
7 .Fish plate /Joint bar

Type : Many kinds available
Raw material : 45# .50#
Surface : Plain (oil)
8. Clamp plate/Rail clamp/Anchor plate

Type : KPO3. KOP06 All kinds available according to customers drawings and samples
Raw material : Q235.45#
Surface : plain (oil ). black paint . zinc .hdg etc.
9 .Rail pad

Type : All kinds available according to customers drawings and samples
Raw material : EVA
Surface : plain
10. Plastic dowel /Guide plate

Type : All kinds available according to customers drawings and samples
Raw material : PA66
Surface : plain
11. Rail Shoulder

Type : All kinds available according to customers drawings and samples
Raw material : QT400-15 .QT450-10 .QT500-7
Surface : Plain

Oxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad Construction

Oxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad Construction

Oxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad Construction

Our Other Main Products

Oxide Black / Zinc Plated E Clips Elastic Rail Clips For Railroad Construction

If you have any other models of rail/ rail fastener in need, welcome to contact me.


Contact: Jessie Mail: zy05@zyrail.com
