Specifications
Brand Name :
ZhongYue
Model Number :
E2091
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
200,000 pcs per week
Delivery Time :
10 - 20 work days after payment
Packaging Details :
25kg double-layer bag, 36bags/pallet, 24pallets/container or as your request
Product :
E Type Elastic Rail Clip
Material :
Spring Steel
Surface :
Plain Oiled, Oxide Black, Painted, Galvanized

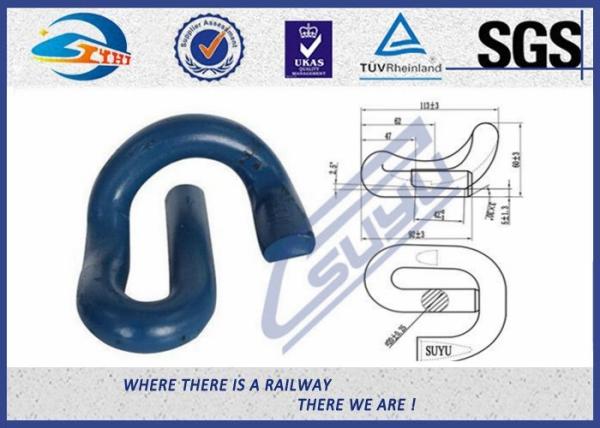

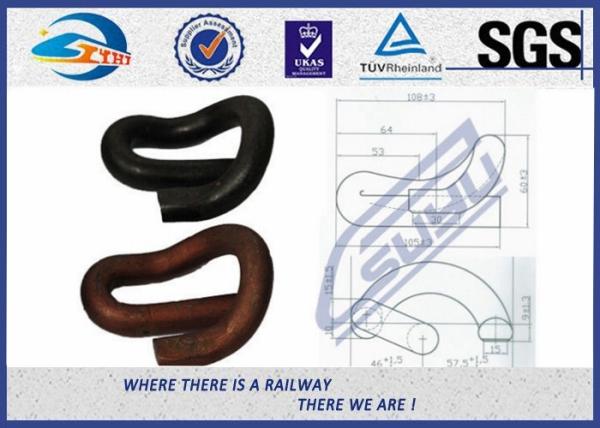

Drawing :
See The Photo
Application :
Fastening Rails
OEM :
Available
Description

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Commercial Name: E Type Elastic Rail Clip


Brand: Zhongyue

Supplier: Zhongyue Railway Material Co.,ltd.

Address: No#199 Huanlou Road Kunshan Jiangsu P.R China

HS Code: 73029 09000

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Produce Process

Clip Production Process
1 raw material
2 shearing
3 heating to forging temperature (950-1000 degrees celsius)
4 forming
5 hardening
6 tempering below 350 degrees celsius
7 inspection
8 packing

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Material Choice: spring steel

  1. 60Si2MnA
  2. 60Si2CrA
  3. 55Si2Mn
  4. 38Si7

Technical Parameter Table of Material

SKL Series SKL1 SKL3 SKL12 SKL14
Material 60Si2MnA 60Si2CrA 55Si2Mn 38Si7
Chemical composition(%) C:0.56-0.64, C:0.56-0.64, C:0.52-0.60, C:0.35-0.42,
Mn:0.60-0.90, Mn:0.40-0.70, Mn:0.60-0.90, Mn:0.50-0.80,
Si:1.60-2.00, Si:1.40-1.80, Si:1.50-2.00, Si:1.50-1.80,
Cr:≤0.35, Cr:0.70-1.00 Cr:≤0.35 　
P:≤0.03, P:≤0.03, P:≤0.03, P:≤0.03,
S:≤0.03 S:≤0.03 S:≤0.03 S:≤0.03
Hardness 42-47HRC
Fatigue life for Dia.18 is 3 millions cycles without breaking
for Dia.20 is 5 millions cycles without breaking

Surface Treatment

  1. plain (oiled)
  2. color paint
  3. oxide black
  4. galavazing
  5. DHG

Inspection machine

  1. Brinell Hardness Tester
  2. Carbon and Sulfur Analyzer
  3. Rockwell Hardness Machine
  4. Automatic Impact Testing Machine
  5. Metallographic Microscope
  6. Automatic High-speed Analyzer
  7. Fatigue Testing Machine
  8. Metallographic Specimen Polishing Machine
  9. Metallographic Specimen Pointing Machine

Package

  1. 25 kg double-layer woven bag with free fumigation wooden pallent
  2. 36bags/pallets
  3. 20pallets/20ft

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Application

  1. Speed <120km/h
  2. High-way speed >120km/h

Customized E Type Elastic Rail Clip For Railway System , SGS ISO9001 Approval

Other Types

Same series SKL1
SKL2
SKL3
SKL12
SKL14
General series E type
Nabla type
KP / KPO type
Special series PR type
Deenik type
Russian type
Fats clip
Gauge lock clip

Sale Range

  1. Rail fastening system
  2. Dog spike / Screw spike
  3. Bolt set
  4. Elastic clamp
  5. Rail anchor
  6. Rail shoulder
  7. Fish plate
  8. Tie plate
  9. Plastic / Rubber parts
  10. Brake shoe
  11. Steel rail
  12. New wood sleeper

Quotation necessity

  1. Drawing with full size
  2. Material
  3. Surface Treatment
  4. Order quantity

If you have any needs, welcome to contact me.
