Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
Specifications
Brand Name :
ZhongYue
Model Number :
16x16x165
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
600,000 pcs per month
Delivery Time :
15-30 work days after getting payment
Packaging Details :
25Kg plastic bags and wooden pallets or according to clients' requirement
Product Name :
Dog Spike
Application :
Railroad
Grade :
4.6, 4.8, 5.6
Material :
Q235 / 35#
Surface :
Plain (oiled), Oxide Black, Zinc, HDG, Wax, Bitumen, Dacromet
Standard :
ISO898-1, UIC864-1, and NF F500-50
Description

Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235 ​

Technical Parameters

Grade 4.6 5 .6 8.8
Material Q235 35# 45#
Mechanical Tensile strength: ≥ 400Mpa Tensile strength: ≥ 500Mpa

Tensile strength:

≥ 800Mpa
Yield strength: ≥ 240Mpa Yield strength: ≥ 300Mpa Yield strength: ≥ 640Mpa
Elongation: ≥ 22% Elongation: ≥ 20% Elongation: ≥ 12%
Cold bending: 90 degree
without crack
Surface plain (oiled) , Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers ISO898-1, UIC864-1, and NF F500-50

Brand

ZY

Name

railway track spike

Size

16x16xL

16x16xL

5/8”x5/

8”xL

3/8”x3/

8”xL

16x16

x170

16x16x150

9/16"xL

square

square

16mm

5/8"x5/8"

x5"

5/8"xL

10mm

19mm

16mm

Dia.

22mm

Grade

4.6

4.6

A370

ASTM A65

Gr1,Gr2

4.6

4.6

ASTM A65

Gr1,Gr2

4.6

4.6

Material

Q235

low

carbon

steel

Q235

Q235

low

carbon

steel

low

carbon

steel

low carbon

steel

SS41

low

carbon

steel

Surface

plain (oiled)

Standard

refers

GB/T

1346

GOS

T5812

AREMA

AREMA

Ss-EN10025

BS70R,

BS60R

AREA

JIS E1108

AS 1085.8

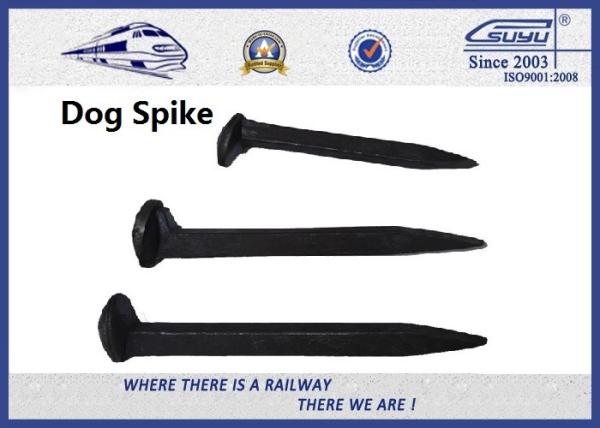

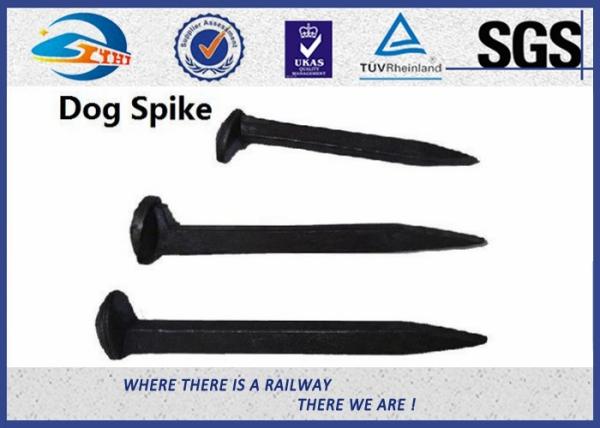

Samples Show:

Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235

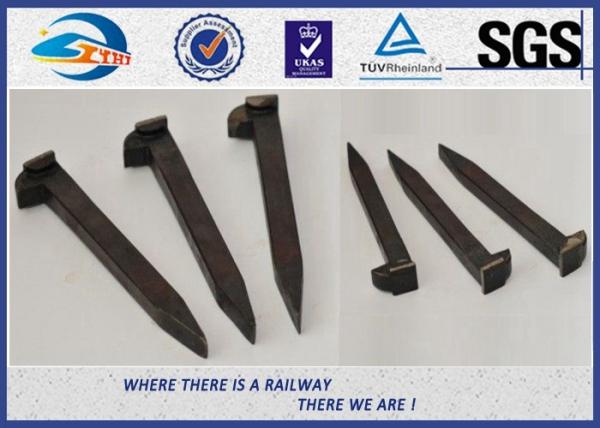

Main Types Of Spikes


Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235

Package

25kg per double layer woven bag+ free fumigation wooden pallet


Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235

Track Carbon Steel 4.8 Grade Railway Dog Spikes AREM Q235
