AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
AREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
Specifications
Brand Name :
ZhongYue
Model Number :
OEM
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
10000pcs
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
1500 Tons / Month
Delivery Time :
15-25 Days after placing formal order
Packaging Details :
25KG double-layer woven bag with fumigation-free wooden pallet
Product :
railway fasteners plain oil black screw spikes for railroad
Color :
Black, White or Yellow
Grade :
4.6, 5.6, 8.8, 10.9
Appliaction :
In Rail Sleeper to Fasten Rails
Certificate :
ISO9001, SGS
Warranty :
two years
Description

ZhongYue railway fasteners plain oil black screw spikes for railroad

1. Introduce:

A rail screw spike, also called sleeper screw, rail screw or lag bolt, is a medium or large metal screw used to fasten a rail base plate or rail. Such spikes are always fastened into holes bored into the tie sleeper, sometimes together with imbedded plastic dowels, popularly used for rails with wooden sleepers, especially in America and Canada.

2. Technical Details

Product Tensile Strength Yield Strength Elongation Reduction of Area Hardness
High Tensile Screw 120,000psi(min) 92,000psi(min) 14%(min) 35%(min) HRC22-HRC32

3. Standard:

AREMA, DIN571, Europe standard or other standard required by clients.

4. Specification:

Diameter from 12mm to 27mm, without lenth limited.

5. Grade:

ASTM A307, ASTM A325, Grade 4.6, 4.8, 5.6, 5.8, 8.8

6. Surface:

Black, zinc white, zinc yellow, hot dip galvanised, zinc infiltrated.

7. Advantage:

We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.

8. Our product range:

1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert

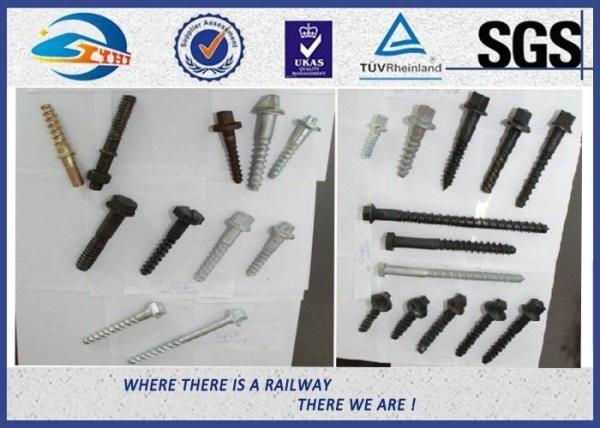

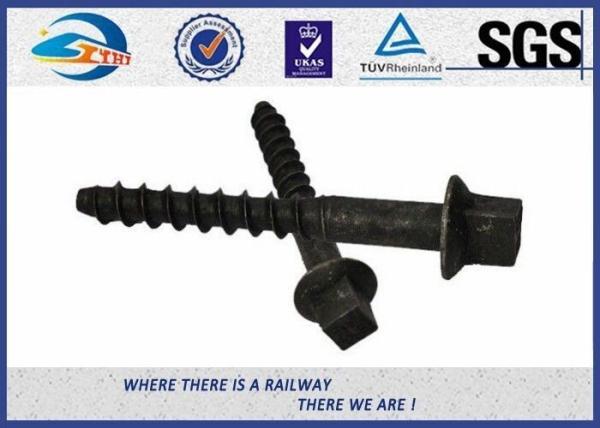

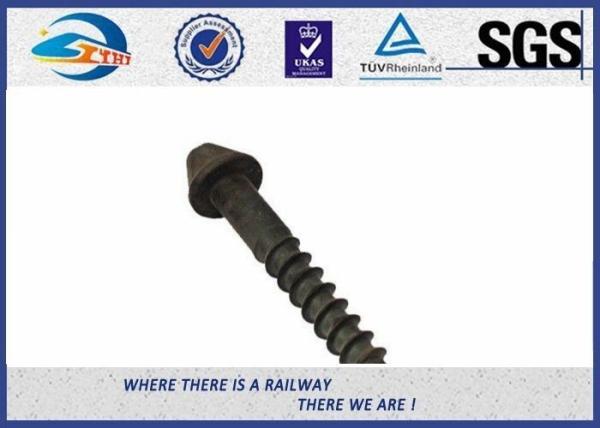

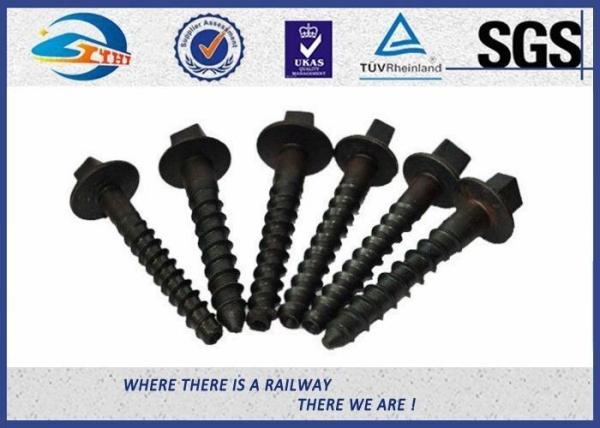

9. Photos for Reference

AREMA / DIN571 Railway Fasteners Plain Oil Black Screw SpikesAREMA / DIN571 Railway Fasteners Plain Oil Black Screw Spikes
