Specifications
Brand Name :
ZhongYue
Model Number :
GB6KG, GB9KG, GB12KG, GB15KG, GB22KG, GB30KG
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
20 tons
Price :
Negociable
Payment Terms :
T/T, 30% in advance
Supply Ability :
3000 tons/month
Delivery Time :
About 30 days after receiving advance payment.
Packaging Details :
in Bundle, in Bulk
Production Name: :
American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail
Material: :
700/900A/1100
Standard: :
ASTMA1,，AREMA,ASCE,BS11：1985;UIC860;UIC50/54/60
Length: :
6-25m,Customized length acceptable
Weight: :
Depands on sizes
Application: :
crane rail construction
Samples: :
Available upon request
Description
Detailed Product Description

American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail

ZHONGYUE Steel crane rail:

The steel rail is used to guide the train wheels far forwarding, by withstanding the enormous stress by the wheel when a train passes by, and transferring to the tie sleepers as well. The cranerail shall provide smooth and continuous rolling surface with least resistance. Generally speaking, the heavier the rails and the rest of the track work, the heavier and higher speed for the train these railroad tracks can carry. At electrified railway or automatic block sections, the railroad rail can also be used as the railroad track circuit.

Due to high quality and competitive prices, our steel crane rails have been exported to over 50 countries, including America, Brazil, Canada, Germany, Britain, Spain, Belgium, Poland, India, Thailand, Malaysia, and Sudan, etc.

In order to ensure better quality, the steel rails have to undergo various tests, such as chemical composition test, tensile strength test, hardness test and drop weight test.

American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail

Customized 6m - 25m 700 / 900A / 1100 Railroad Steel Rail , UIC860 Standard

Application:

1. Used under traveling wheel of various cranes such as overhead crane, gantry crane, portal crane, launching crane, flat car, girder carrier, etc.

2. Used in the field of train travel

3. railway construction, shipbuilding, bridge construction

1. American Standard Steel Rail

Standard ASTMA1, AREMA: ASCE25, ASCE30, ASCE40, ASCE60, ASCE75, ASCE85, 90RA, 115RE, 136RE, 175LBS

Specifications

Standard: ASTMA1, AREMA
Size Dimension(mm) Weight
(kg/m)		 Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
ASCE 25 38.1 69.85 69.85 7.54 12.4 700 6-12
ASCE 30 42.86 79.38 79.38 8.33 14.88 700 6-12
ASCE 40 47.62 88.9 88.9 9.92 19.84 700 6-12
ASCE 60 60.32 107.95 107.95 12.3 29.76 700 6-12
ASCE 75 62.71 122.24 122.24 13.49 37.2 900A/1100 12-25
ASCE 85 65.09 131.76 131.76 14.29 42.17 900A/1100 12-25
90RA 65.09 142.88 130.18 14.29 44.65 900A/1100 12-25
115RE 69.06 168.28 139.7 15.88 56.9 900A/1100 12-25
136RE 74.61 185.74 152.4 17.46 67.41 900A/1100 12-25
175LBs 109.86 152.4 152.4 38.1 86.8 900A/1100 12-25

2. BS Standard Steel Rail

Standard BS11: 1985: 50O, 60A, 75A, 75R, 80A, 80R, 90A, 100A, 113A

Specifications

Standard: BS11: 1985
Size Dimension(mm) Weight
(kg/m)		 Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
50 O 52.39 100.01 100.01 10.32 24.833 700 6-18
60 A 57.15 114.3 109.54 11.11 30.618 900A 6-18
75 A 61.91 128.59 114.3 12.7 37.455 900A 8-25
75 R 61.91 128.59 122.24 13.1 37.041 900A 8-25
80 A 63.5 133.35 117.47 13.1 39.761 900A 8-25
80 R 63.5 133.35 127 13.49 39.674 900A 8-25
90 A 66.67 142.88 127 13.89 45.099 900A 8-25
100 A 69.85 152.4 133.35 15.08 50.182 900A 8-25
113 A 69.85 158.75 139.7 20 56.398 900A 8-25

3. UIC860 Standard Steel Rail

Standard UIC860: UIC50, UIC54, UIC60

Specifications

Standard: UIC860
Size Dimension(mm) Weight
(kg/m)		 Material Length (m)
Head(mm) Height(mm) Bottom(mm) Web(mm)
UIC50 70 152 125 15 50.46 900A/1100 12-25
UIC54 70 159 140 16 54.43 900A/1100 12-25
UIC60 74.3 172 150 16.5 60.21 900A/1100 12-25

Note:Infomation listed above is for reference only, please contact us for safe.

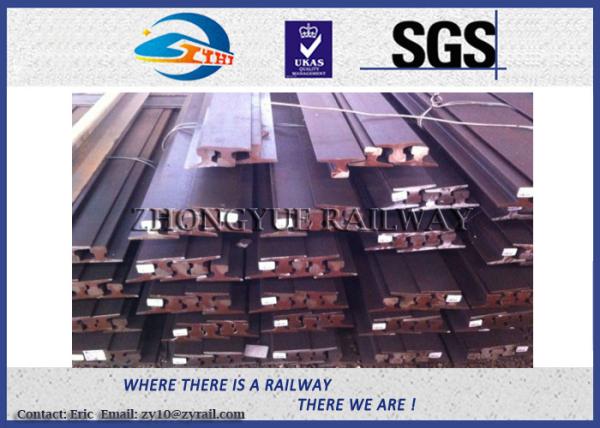

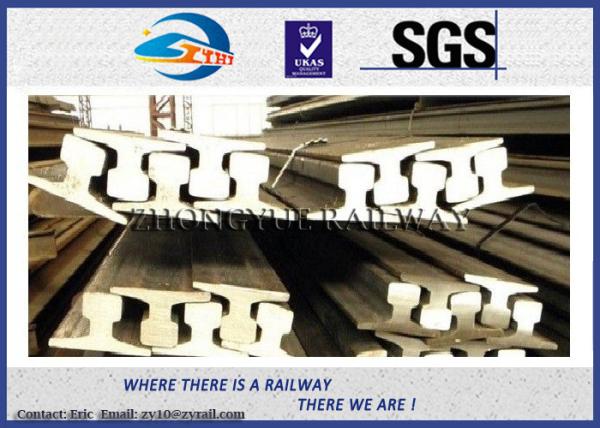

Photo of American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail

Customized 6m - 25m 700 / 900A / 1100 Railroad Steel Rail , UIC860 StandardCustomized 6m - 25m 700 / 900A / 1100 Railroad Steel Rail , UIC860 Standard

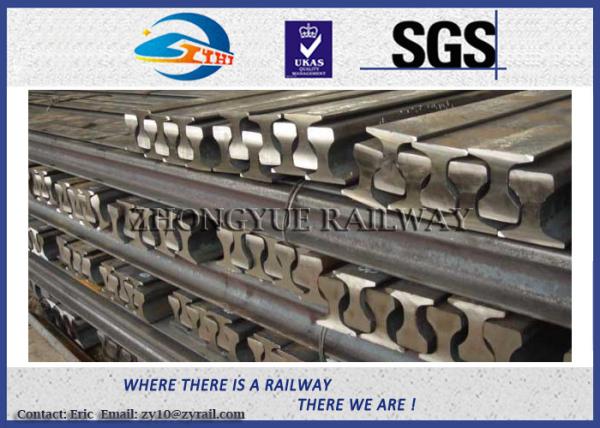

Pakaging of the light stell crane rail:

Light rail,Crane rail of GB11264-89 standard/YB222-63 standard steel rail

Customized 6m - 25m 700 / 900A / 1100 Railroad Steel Rail , UIC860 Standard

American Standard Steel Rail,BS Standard Crane rail,UIC860 Standard railroad rail

ZHONGYUE'S PRODUCTS RANGES:

Customized 6m - 25m 700 / 900A / 1100 Railroad Steel Rail , UIC860 Standard

For more details of the crane rail light rail OR any demands on the Light rail,

pls kindly contact us.

Eric Li
----------------------------------------------------

Other names different people usually say:

Steel rail, hearty steel rail, rail, ISO Chinese standard heavy rail, crane rail, light steel rail, iron rail, steel rail of railway system, high strength steel rail, new steel rail, hot rolled rail, DIN rail, GB rail,

hot rolled light rail, steel crane rail, hot rolled rail, standard rail, rails for mining, High quality carbon light steel rail(Q235 55Q.....manufacture), European standard rail.
