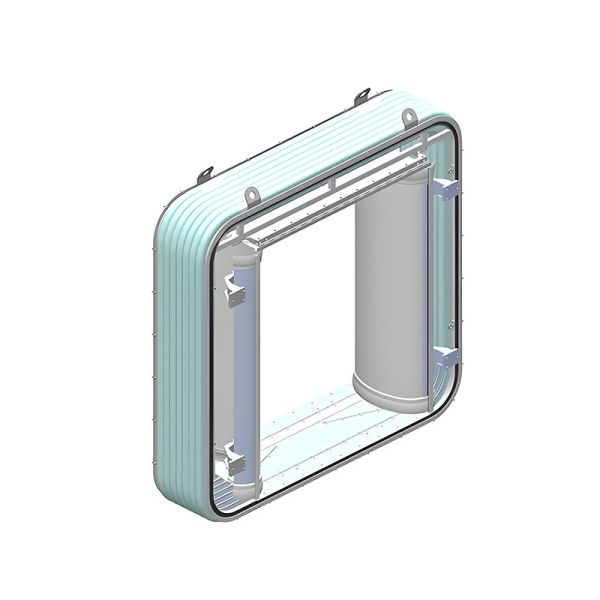

Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Double Olive-shaped Bellows Railway EMU Flexible Gangway with Interior Panels
Specifications
Brand Name :
HTR
Certification :
IRIS
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
10,000 pcs/month
Delivery Time :
15-50 days, depends on QTY
Packaging Details :
carton box, wooden case /as per requires
Product name :
EMU Gangway
Material :
Paulin; Aluminium Alloy
Support Method :
Self-supporting
Fire Protection :
EN45545/BS6853/DIN5510 (optional)
Application :
EMU High-speed Train
Gangway Structure :
Olive-shaped, Double Bellows with Interior Panels
Weight :
360kg
Load Capacity :
Complies with AW3 & TB/T 3094-2015 Requirements
Description

Product Description

Product Introduction
The double olive-shaped bellows (inner and outer layers) significantly improve sound and thermal insulation performance. Made of Hypalon rubber composite material, the bellows exhibit enhanced weather resistance and superior mechanical properties. The interior design enhances the aesthetic appeal of the gangway while providing passengers with a more comfortable travel experience.
Product Features
* Enhanced sound and thermal insulation performance
* Self-supporting, double-layer bellows with olive-shaped gangway system

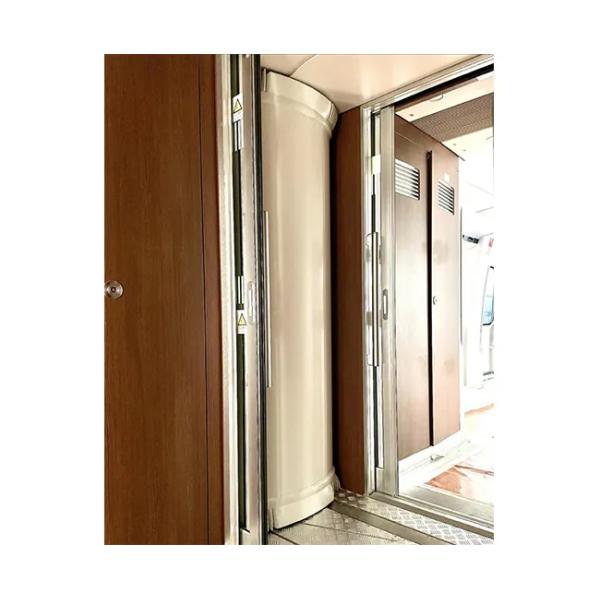

* Features interior panels that align with cabin decor for improved aesthetics

Specification
Product Performance
Reference Values
Gangway Structure
Olive-shaped, double bellows with interior panels
Distance Between Carriage Ends
500mm
Clear Height
≥1900mm
Clear Width
≥1200mm
Service Life
Bellows service life: 12 years; Interior panels: 8-10 years; Metal components: 30 years
Sound Insulation
≥36dB(A)
Thermal Insulation
≤4.0W/(m²·K)
Load Capacity
Complies with AW3 & TB/T 3094-2015 requirements
Fire Protection
DIN5510-3
Weight
360kg
