HT190 Railway Vehicle Saloon Light with Ceiling Panel for Singapore Metro
HT190 Railway Vehicle Saloon Light with Ceiling Panel for Singapore Metro
Specifications
Brand Name :
HTR
Model Number :
HT190
Place of Origin :
CHINA
MOQ :
200PCS
Price :
Ngotiable
Payment Terms :
L/C,T/T
Supply Ability :
50000 pcs per month
Delivery Time :
Ngotiable
Packaging Details :
Export packaging
Light Length :
1687.5mm~2397mm
Power :
DC72V~DC110V
Light Source :
2835
Color Temperature :
4000±250k~5000±275k
Dimming Range :
≤28W~≤34W
Dimming :
NO
Description

Product Description

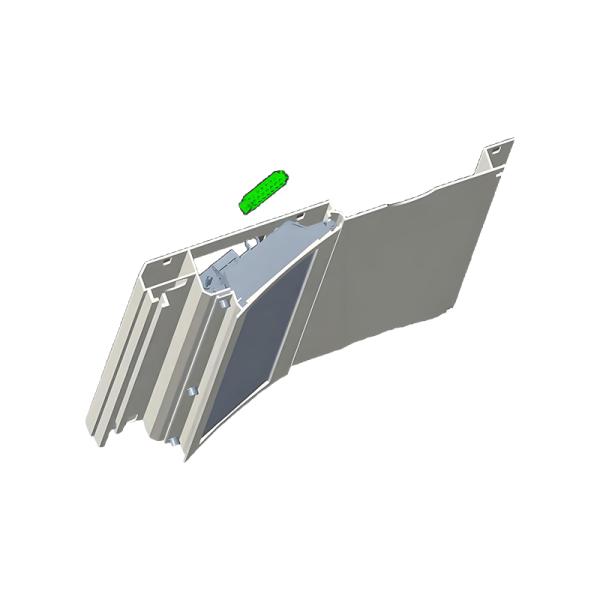

· Saloon light HT190 is designed for Singapore metro project, installed on the mid ceiling panel. It is a modular lighting system designed for direct illumination of the interior of public transport vehicles in Singapore.

· The Driver is integrated for power supply.

· Thanks to the variable length it is possible to create continuous lighting strip along the entire vehicle length.

· It provides soft and comfortable light.


Standard Accessories

· The lamp body is made of AL profile, which finished in powder painting surface treatment

· The light body profile and lamp cover are connected by hinge on one side, and on the other side are fixed together by screws;

· The light cover adopts laminated glass (complying with fire + smoke EN45545 HL2)

· The luminaire integrates the side roof and the valve access port

· With IP54 protection

· Salt spray test refer to ISO 11997-1:2017 Cycle B with 840h

· WAGO connector

· LED chipset: 2835


Options

· Alternative LED light source

· Alternative color surface treatment

· Alternative customized dimensions


Product Specification

Length

Power Supply

Light Source

Dimming

Color Temperature

Dimming Range

2397mm

DC72V

2835

NO

4000±250k

≤30W

1687.5mm

DC110V

2835

NO

5000±275k

≤28W

1895mm

DC110V

2835

NO

5000±275k

≤31W

2203.5mm

DC110V

2835

NO

5000±275k

≤34W
