Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Ribbed Steel Rail Sole Plate And Base Plate Semi-finished Inspection
Specifications
Brand Name :
Kingrail
Model Number :
Double Shoulder Tie Plates
Certification :
CE ISO CCC ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 ton/year
Delivery Time :
1-30 working days
Packaging Details :
standard export package, or as per customer request
Material: :
Q235 or Q345 steel
Production :
casting or forging, hot/cold rolled
Standard :
BS, DIN, GB, JIS, UIC, etc
Processing Service: :
Moulding, Cutting
Application :
Rail Construction Project maintenace
Quality Control :
Semi-finished Inspection and Finished Inspection
Description

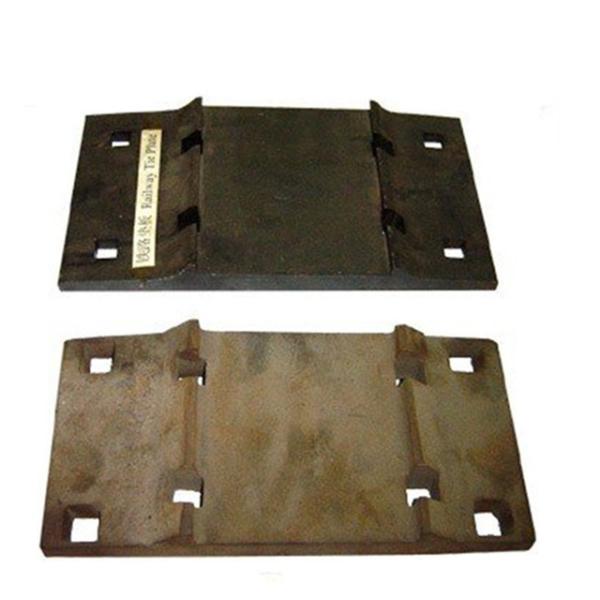

Sole plates are used to support the rails in the railway structure. Common practice is to reinforce the concrete with a steel sole plate.

Depending on the load and the type of rail, Kingrail Parts can provide either continuous support or discontinuous sole plates. Both types of sole plates can be bolted or welded with rail clips.

We can provide various types of sole plates for discontinuous support. In addition to standard sole plates, we also provide customized sole plates.

Continuous Sole plate

Length: Standard 5,980 mm

Width: Varies between 150 and 500 mm

Thickness: Varies between 12 and 50 mm; the base of the track plays a role

Material: S235JR, S275JR, S355J0

Discontinuous Sole plate

Length: Varies between 150 and 300 mm

Width: Varies between 150 and 500 mm

Thickness: Varies between 12 and 50 mm; the base of the track plays a role

Material: S235JR, S275JR, S355J0
