1575.42mhz Car GPS Antenna With 0.3M Sticker Magnetic Installation
1575.42mhz Car GPS Antenna With 0.3M Sticker Magnetic Installation
1575.42mhz Car GPS Antenna With 0.3M Sticker Magnetic Installation
1575.42mhz Car GPS Antenna With 0.3M Sticker Magnetic Installation
Specifications
Brand Name :
CAZAN
Model Number :
CAT-4005
Certification :
CE
Place of Origin :
CHINA
MOQ :
500pcs
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
20000pcs/ each month
Delivery Time :
10--15 WORK DAYS
Packaging Details :
polybag etc
function :
GPS AM FM
color :
black
cable length :
12"
Installation :
magnetic
connector type :
SMA male etc
shape :
round
Description

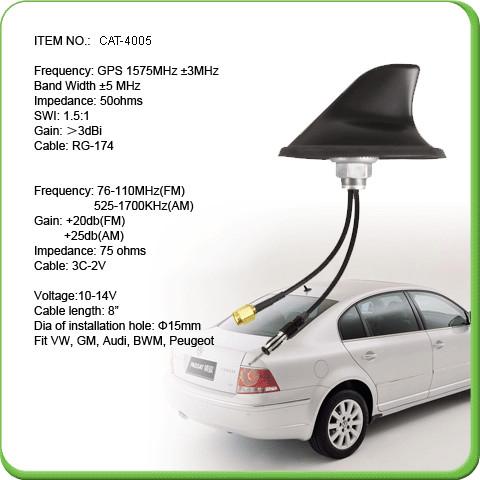

1575.42mhz car GPS antenna with 0.3M sticker and SMA male connector

Item no.: CAT-4005

Product Description

(i)Dielectric Antenna
Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain ＞3dBi Based on 7cm×7cm ground plane
Gain Coverage ＞-4dBi at -90°＜0 ＜+90°(over 75% Volume)
Polarization:RHCP
(ii)AM FM Antenna
Center Frequency(MHz): Am:520—1620khz Fm:88—108mhz
VSWR:2.0:1
Impedance(Ω):50
Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz
(iii)LNA/Filter
LNA Gain(Without Cable) :28 dBi Typical
Noise Figure(dB):1.5
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR ＜2.0
DC Voltage (V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max
(iv)Mechanical
Weight(gram)＜240
Size(mm):84×53.8×62
Cable GPS(m):RG174 2,5 etc.
GSM(m):RG174 2,5 etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
Mounting:Screw(Hole/Roof)
Housing:Black
(v)Environmental
Working Temp:-40℃~+85℃
Storage Temp:-45℃~+100℃
Vibration:Sine sweep1g(0-p)10~50~10Hz each axis
Humidity:Humidity95%~100%RH
Weatherproof:100%Waterproof

Our advantages:


1. Quality control:most of products have CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :3~20 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.


We can give you a promise:


•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
