Specifications
Brand Name :
WONDERY
Model Number :
DW-50NC
Certification :
CE
Place of Origin :
Jiangsu,China(Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
45 working days
Packaging Details :
wooden case suitable for sea transportataion
Name :

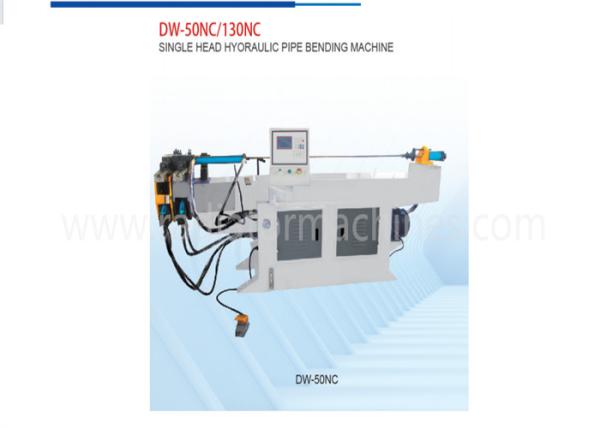

Single Head Hyoraulic Pipe Bending Machine
Model :
DW-50NC
Bending radius range :
φ50×3 mm
Max.bending radius :
R350 mm
Min.bendingradius :
R≥1.5D mm
Max.bending angle :
190 degree
Standard core length :
2200 mm
Oil-pressure motor power :
5.5 kw
Machine dimension :
3000×700×1000 mm
Machine weight :
1220 kg
Description

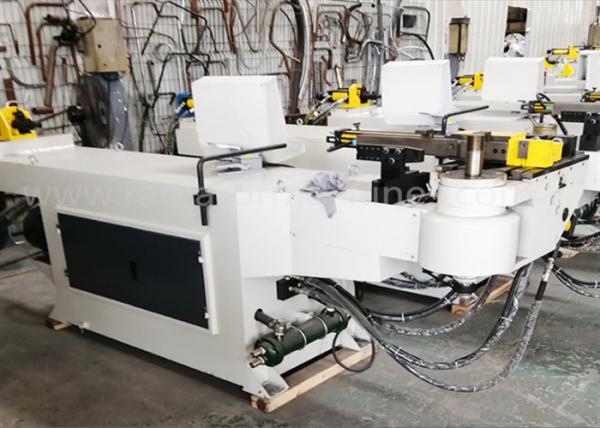

Automatic Bending Machine for Standard Products High Precision and Efficiency

1.Equipment Features

· It is widely used in larger standard products,E.G.exhaust pipe,seat,bumper,all steel

furniture and etc

· Machine is beautiful and delicate,and provides the space for the biggestbending pipe.

· Adopting single chip microcomputer control,easy to operate.

· The angle of bending uses encoder tracking and give a feedback with ahigh bending

precision

· Storaging of multiple sets of processing mode,flexible switchingbetween different

specifications.

· With automatic counting and power-off memory function.

· Equipped with hydraulic cooling system to ensure the stability of themachine.

· Large and medium-sized pipe bending machine with boosting design,can solve the

trouble of big radius,big angleand tin bending pipe.

· Adopting touched operation panel by single chip computer control,man-machine

conversation operating,very convenient.

· The angle of bending uses encoder tracking and give a feedback with ahigh bending

precision.

· With automatic counting and power-off memory function.

· Equipped with water cooling system to ensure the stability of themachine for a long time

2.Main Technical Parameters

NAME /MODEL 单位 DW-50NC
Max.bending diameter,wall thickness mm φ50×3
Max.bending radius mm R350
Min.bendingradius mm R≥1.5D
Max.bending angle 190
Standard core length mm 2200
Control system 微电脑控制
Number of pipe bending 件 16
Can store part number 组 16×16
Oil-pressure motor power kw 5.5
Max.system pressure Mpa 12
Hydraulic system control 电磁阀
Fuel tank volume L 150
Machine dimension mm 3000×700×1000
