Fully Automatic Recovery Type Vacuum Impregnation Equipment For Castings
Fully Automatic Recovery Type Vacuum Impregnation Equipment For Castings
Fully Automatic Recovery Type Vacuum Impregnation Equipment For Castings
Fully Automatic Recovery Type Vacuum Impregnation Equipment For Castings
Specifications
Brand Name :
WONDERY
Model Number :
VPI
Certification :
CE
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Year
Delivery Time :
90 Days
Packaging Details :
DULY PACKED AND SUITABLE FOR SEA TRANSPORTATION
Name :
vpi impregnation
Item :
600-1200
Working pressure :
0.5
Type :
vacuum impregnation vpi process
Effective tank size :
customized
Vacuum degree :
<100pa or <200pa
Warranty :
12 months
Effective Height (mm) :
1300-2000
Description

Fully Automatic Recovery Type Vacuum Impregnation Equipment for Castings

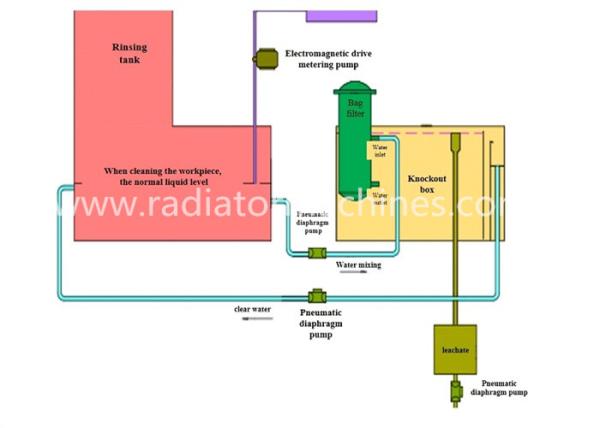

1.Recovery system diagram

Fully Automatic Recovery Type Vacuum Impregnation Equipment For Castings

2.Technical Parameters
Item 600 800 1000 1200
Effective Size (mm) 600 800 1000 1200
Effective Height (mm) 700 1000 1250 1500
Working Pressure(Mpa) 0.5 0.5 0.5 0.5
Vacuum Degree (Pa) ＜100 ＜100 ＜200 ＜200
Overall Height (mm) 1300 1500 1800 2000
Note: The vacuum impregnation equipment is non-standard, and we could provide the equipment according to buyer’s specific
requirement.
3.Suitable for
machining (multi-faced thread holes) oil stained castings and thread holes (M3 or more) machining oil stained castings, customers
do not have cleaning equipment.
4.Equipment features
4.1product is cleaned relatively clean.
4.2Vacuum drying saves drying time and provides high production efficiency and efficiency.
4.3The six-way centrifugal dewatering system can centrifuge and dry the impregnating agent in the threaded holes of the six faces
of the product, which reduces the consumption of impregnation sealant and saves costs compared with the traditional four-way
centrifugal dewatering system, and also provides favorable conditions for the next step of cleaning
4.4Using the rotation spray cleaning system, it can clean the threaded holes on six sides of the product without residue, no longer
need to manually blow the residual liquid of the threaded holes with an air gun.
4.5The vacuum impregnation equipment adopts PLC automatic control, reduce labor costs
4.6The use of waste water recovery system to achieve zero discharge of waste water or the use of recyclable impregnating agent
to achieve waste water recovery.
Conclusion: Vacuum impregnation is an essential process in the casting industry, providing significant benefits in terms of durability,
performance, and cost efficiency. These applications make it a valuable technique for manufacturers looking to improve the quality
of their cast parts.
