Specifications
Place of Origin :
Fujian, China
Brand Name :
WONDERY
MOQ :
1
Price :
$75
Weight :
1500 KG
Core components :
Motor
Teeth width :
10mm
Teeth weight :
5kg
Clinching tool size :
10mm, 20mm, 30mm, 40mm
Driving type :
Pneumatic or servo
Radiator height :
350-850mm
Radiator width :
100-800mm
Crimping way :
Stepping way
Production capacity :
24 cores/hour
Driving force :
Servo + pneumatic
Crimped teeth quantity :
Max 100 pieces
Total power :
1.5kw
Voltage grade :
AC-220V; 50Hz
Overall dimension :
2600×2200×1900mm
Description

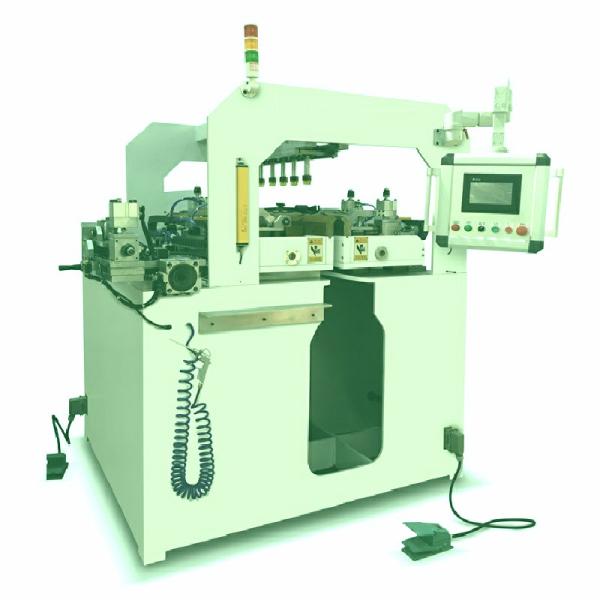

Radiator Tank Clinching Tool for Auto Radiator Plastic Tank Clinching Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine

Product Application

The clinching tool is the most important parts to carry out pushing over and clinching movement. The clinching tool can be of 10mm, 20mm, 30mm, 40mm based on customer's needs.


The radiator tank clinching machine is used for crimping the teeth of the header plates and locking the plastic tank tight to the core body. There is a sealed space between the crimped plastic tank, sealing gasket and header plate. This servo type plastic tank clinching machine is used to handle products of various specifications. The crimping set moves step by step.The plastic tank crimping machine is also called as clinching machine, tank clinching machine, radiator tank clinching machine, plastic tank crimping machine, etc.

Technical Parameters of Radiator Tank Clinching Machine
Clinching tool size:10mm, 20mm, 30mm, 40mm (could also be customized);

clinching tool driivng type:pneumatic type or servo type;

Radiator height: 350-850mm;

Radiator max width: 100-800mm

Crimping way: stepping way;

Production capacity: about 24 cores per hour;

Driving force: servo + pneumatic;

Crimped teeth quantity: max 100 pieces

Total power: 1.5kw

Voltage grade: AC-220V; 50Hz

Overall dimension: 2600×2200×1900mm (L*W*H)

Weight: 3.2 Ton

Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine

Main Features

The tank clinching machine is PLC controlled, and the crimping program is set up through the touch screen which is imported from Taiwan. The touch screen can indicate the working status, and the control system stores multiple groups of radiator crimping parameters. The tank clinching machine is devided into a long header and a short header crimping device which separately crimps the long header plate and the short header plate. The plastic tank crimping machine can have dodge moves and step-forward moves. The radiator tank clinching machine is also divided into one-position type and two-position type. The plastic tank crimping machine is also called as clinching machine, tank clinching machine, radiator tank clinching machine, plastic tank crimping machine, etc.

Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
1. What is the power supply of the heat exchanger making machines?
The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 30-60 days after receipt of down payment.
