Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Specifications
Place of Origin :
China
Brand Name :
WONDERY
MOQ :
1
Price :
$60,000
Weight :
2200kg
Core height :
350-780mm
Core width :
200-680mm
Flat Tube Layers :
1 layer
Tube Laying Mode :
Manual
Fin Laying Mode :
By fin tray /Manual
Production Capacity :
40sets/hour
Drive Mode :
Pneumatic
Overall Dimension :
2200*1800*1800mm
Pneumatic pressure :
0.6Mpa
Core size :
780*680mm
Assembling time :
2.5 minutes/core
Core components :
Motor
Electrical components :
Schneider, Omron, CHINT
Follow-up process :
Brazing process
Description
Semi-automatic Prallel Flow Core Condenser Making Machine
Semi-Automatic Condenser Making Machine 2200kg for Auto Production

Product Application

The condenser core builder condenser making machine is used for assembling auto parallel flow condensers. The core builder machine has the advantages of stable and reliable working performance, easy operation, low noise, accurate positioning of flat tube center, and even distribution of fins. The assembled core has a high assembling accuracy and a good appearance, which ensures a better brazing effect in the brazing furnace.

Parameters of Condenser Making Machine for assembling condenser
Core height direction
350-780mm
Core width direction
200-680mm
Flat Tube Layers
1 layer
Tube Laying Mode
Manual
Fin Laying Mode
By fin tray /Manual
Production Capacity
Around 40sets/hour
Drive Mode
Pneumatic
Overall Dimension
2200*1800*1800mm
Weight
2200kg
Semi-Automatic Condenser Making Machine 2200kg for Auto Production

Advantages of Radiator Core Builder

1) The flat tubes are distributed through a servo tube distribution device. And the overall comb teeth structure could ensure the flat tube positioning accuracy.
2) The radiator core builder is designed with 2-hand push buttons for safety operation.
3) The radiator core builder is easy for operation, adjustment, and tooling replacement.
4) The left and right push mechanism, and clamping mechanism are controlled by the hydraulic cylinders.
5) The flat tubes are distributed through a servo tube distribution device.
6) The radiator core builder machine can be equipped with the header flaring mechanism. The radiator core builder machine is also called as core builder, core builder machine, core assembly machine.

Detailed Images
Semi-Automatic Condenser Making Machine 2200kg for Auto Production

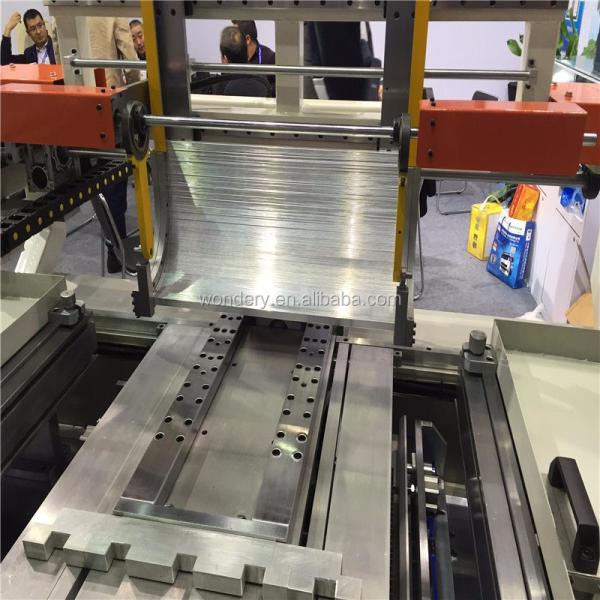

Tube distribution Silo

The radiator core builder could be equipped with the tube distribution silo to improve operation efficiency.

The radiator core builder machine is also called as core builder, core builder machine, core assembly machine.

Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
Semi-Automatic Condenser Making Machine 2200kg for Auto Production
1. What is the power supply of the heat exchanger making machines?
The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?
The delivery time of the machine is 30-60 days after receipt of down payment.
