Electric Resistance Aluminum Holding Furnace Low Pressure Casting
Electric Resistance Aluminum Holding Furnace Low Pressure Casting
Electric Resistance Aluminum Holding Furnace Low Pressure Casting
Electric Resistance Aluminum Holding Furnace Low Pressure Casting
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
Certification :
CE CERTIFICATE
Supply Ability :
15 Sets per Month
Packaging Details :
plywood case suitable for sea transportation
MOQ :
1 Sets
Price :
Negotiable
Model Number :
WR-BDD
Delivery Time :
30 Days
Payment Terms :
L/C, T/T
Name :
Metal melting furnaces
Type :
Resistance Furnace
capacity :
300-1000kg
casting material life :
5 years
temperature accuracy :
±5 ℃
Material :
Aluminum
Description

Electric Resistance Aluminum Holding Furnace Low Pressure Casting

Features

1) The furnace adopts the high strength steel plate with a great strength.

2) The resistance heating method has a big heat radiation range, and a low metal burning loss. The heating

element is equipped with the protection casing pipe of good conductivity.

3) Direct measurement of aluminum liquid temperature. The furnace has double temperature control and

measurement, which enables a control accuracy of ±5℃ of the aluminum liquid.

4) Lining is made of imported high-quality material, and casted as a whole. The lining has a life of 5 years

based on normal use.

5) The furnace is equipped with a safety valve to prevent over-pressure.

6) The furnace can move horizontally and up-down based on the customers requirement.

Technical Parameters

Model

Holding Capacity (kg)

Rated Power (kw)

Max Pressure (Mpa)

Overall Dimension (mm)

L* W*H

WR-BDD-300

300

21

0.09

1900*1600*1200

WR-BDD-500

500

27

0.09

2100*1800*1300

WR-BDD-800

800

32

0.09

2300*1900*1400

WR-BDD-1000

1000

36

0.09

2400*2000*1450

Company Product:
Our company supplies the various metal melting furnaces for zinc, lead, and copper. We have the following

products: Crucible melting furnace, gas fired metal melting furnaces, oil fired metal melting furnaces,

aluminum holding furnace, continuous aluminum melting furnace, rotary furnace, ladle preheater, ladles, etc.

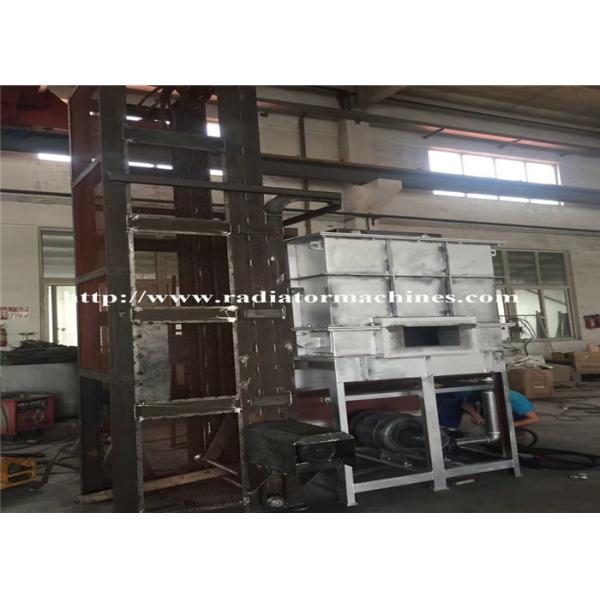

Big size aluminum continuous melting furnace in our workshop:

Electric Resistance Aluminum Holding Furnace Low Pressure Casting
