Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
Specifications
Place of Origin :
Jiangsu, China (Mainland)
Brand Name :
WONDERY
Model Number :
SC-YB-3000H
Supply Ability :
10 Sets per Month
Packaging Details :
Plywood Case Suitable for Sea Transportation
MOQ :
1 Set
Price :
Negotiable
Certification :
CE
Delivery Time :
30 Days
Payment Terms :
L/C, T/T
Application :
Aluminum Liquid Transfer Ladle
Material :
Aluminum
Dimensions :
3000kgs
type :
forklift or crane lifting type
ladle baker :
available
warranty :
1 year
Description

Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs

Product Application

The aluminum casting ladle 3000kg is is made according to the agreed design drawing and material specification.

The aluminum liquid transfer ladle is used for long distance transportation.

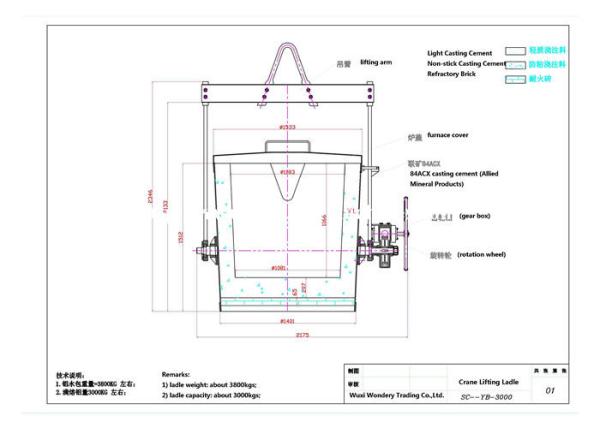

SPECIFICATIONS FOR Aluminum Casting Ladle 3000kgs

Ladle Body

1st layer

3mm ceramic fiber paper

2nd layer

20mm nano board

3rd layer

120-140mm (Allied Mineral Products Tianjing Co., Ltd)

casting cement as 3rd layer (working layer).

Ladle Cover

1st layer

3mm ceramic fiber paper

2nd layer

ceramic fiber module for heat preservation purpose

Ladle Body Inside

Wall Painting

the inside wall are painted with Z77 aluminum non-sticking paint Z77

(Allied Mineral Products Tianjin Co., Ltd.).

Main Features

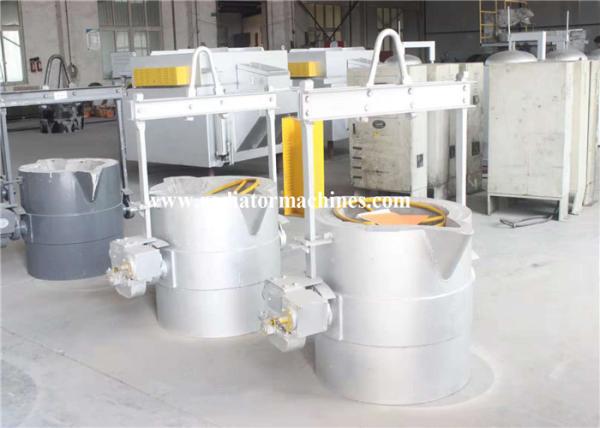

The ladle is used to transfer the molten metal liquid. It has both the crane lifting type and the forklift type.

Lining material is of either non metal-stiking casting material or crucible type.

The tilting mechanism can be driven by the worm gear or planetary gearbox.

LADLE BAKING CURVE

Aluminum Liquid Transfer Aluminum Casting Ladle 3000kgs
