Specifications
Brand Name :
DTS
Model Number :
GPPL3000
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000
Packaging Details :
Carton
Customized Support :
OEM, ODM
Application :
PE Gas Pipeline Location
Data Storage :
Yes
Detect Distance :
5000m
Detect Depth :
10m
Grade :
Industrial
Description

Best Selling Plastic Gas Pipeline Locator 10m Depth Touch Colour LCD Pipe&Cable Locator

Product Description:

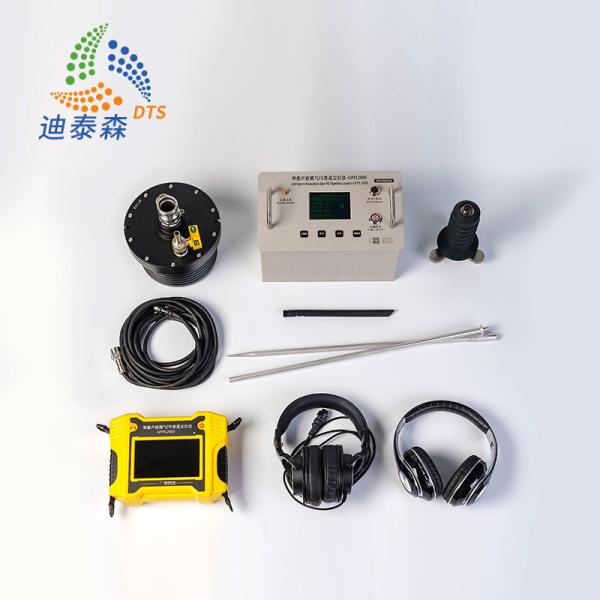

The intelligent sonic gas PE pipeline locator GPPL3000 is a technological product specially developed for the positioning of gas PE pipelines. Using military-grade high-sensitivity vibration sensors, combined with a specific frequency vibration signal demodulation algorithm, based on the propagation characteristics of sound waves in the gas pipeline, the sound wave signal sent by the instrument is received and tracked, so as to accurately locate the position, depth, direction and connection of the gas PE pipeline under test. It solves the worldwide problem that gas PE pipelines are difficult to detect, and is suitable for gas companies and other users to locate and detect buried gas PE pipelines.

Accurate positioning Gas Pipe Locator Underground Pipe Locator 10m Depth

Accurate positioning Gas Pipe Locator Underground Pipe Locator 10m Depth

Features:

  • 1. Optimize the software system and internal structure, the detection depth can reach 10 meters
    2. Accurate positioning, the error is less than 15 cm
    3. Color touch high-definition large screen, still clearly visible under strong light
    4. Two modes of listening mode + detection mode, multi-dimensional accurate positioning.
    5. Using Lora spread spectrum wireless technology, the receiver is remotely synchronized with the transmitter, and the operation is simple to use.
    6. Dual output of limited headset and blue tooth headset, suitable for use in various scenarios
    7. Military-grade high-quality, sturdy and durable. Collected in a project box, easy to carry

Technical Parameters:

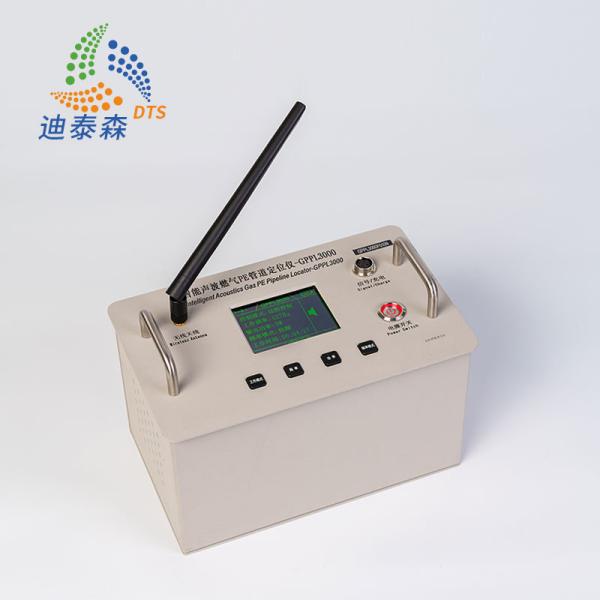

Transmitter Data
Model GPPL3000
Application PE Gas Pipeline Location
Grade Industrial
Display Touch colour LCD screen, clearly visible under strong light
Frequency (227/327/427/527/627/700Hz)frequency adjustable
Power output (5W/20W/50W/100W)
Audio output Constant frequency; Pulse; Variable frequency
Communication Lora spread spectrum wireless technology
Battery Rechargeable lithum battery
Working time More than 14 hours
Charging time 4.5 hours
Humidity 95%
Working temperature -30℃--60℃
Receiver Data
Receiving frequency 200 Hz -700Hz predict set 6 frequency(227/327/427/527/627/700Hz)
Signal amplification 1-20 times
Location mode listening mode + detection mode
Display Touch colour LCD screen, clearly visible under strong light
Detect Depth 10m
Detect Distance 5000m
Battery Rechargeable lithum battery
Working time More than 16 hours
Charging time 5 hours
Humidity 95%
Working temperature -30℃--60℃
Data Storge System memory:1GB; Flash memory:8GB; Max:128GB

Applications:

Accurate positioning Gas Pipe Locator Underground Pipe Locator 10m Depth

Packing and Shipping:

Accurate positioning Gas Pipe Locator Underground Pipe Locator 10m Depth
