80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-88-B
Certification :
CNEX
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized Support :
OEM, ODM
Model :
DTS-RD-88-B
Application :
Pressured Solid/Liquid/Dust Max 200℃
Process Temperature :
-40℃~+200℃
Process Pressure :
（-0.1~0.3）MPa
Accuracy :
±2mm
Frequency :
80GHz
Description

120m Max200℃ Radar Level Sensor of Pressured Solid 80GHz Swivelling Mounting Air/N2 Purge Radar Level Meter

Product Description:

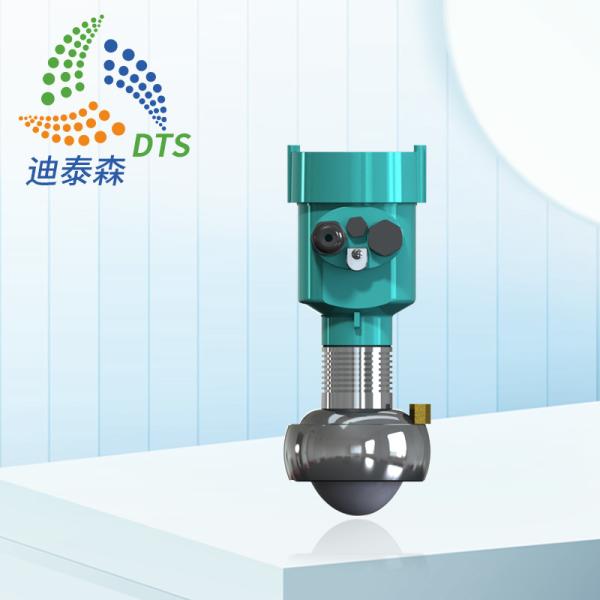

The DTS-RD-88-B Radar Level sensor is a high-performance level transmitter specifically designed for the measurement of liquids and solids in industrial processes. With its advanced microwave level sensor technology, the 80G Radar Level Meter is ideal for level measurement in applications such as storage tanks, sewage treatment, and chemical processes, where reliable and accurate level measurement is essential. The device is also well suited for monitoring the levels of corrosive, abrasive, or viscous liquids, and it can be used for slurry or powdery solids as well. The robust design is suitable for use in harsh environments such as petrochemical plants, power plants, oil & gas refineries, and other industrial applications.

80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance
    Swivelling mounting,Easily adjustable (up to ±10°)
    Air purge connection or Nitrogen purge connection,efficient cleaning.
  • 80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge

Technical Parameters:

Model DTS-RD-88-B
Application Pressured Solid/Liquid/Dust Max 200℃
Measuring Range 120m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+200℃
Process Pressure (-0.1~0.3)MPa
Housing Material Stainless Steel+PTFE
Protection Class IP68
Process Connection Flange from DN80
Signal output 4…20mA/HART;RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Power Supply Two wires DC24±6V; Four wires AC220V

Applications:

The Non-Contact Radar Level Transmitter is designed with advanced non-contact radar technology, which is highly reliable and stable. Its advanced design ensures accurate and repeatable level measurement in a wide range of applications including petrochemical, power, oil & gas, and other industrial processes..

80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge

Packing and Shipping:

Non Contact Radar Level Transmitter Packaging and Shipping

80GHz Non Contact Level Transmitter Radar Sensor Air / N2 Purge
