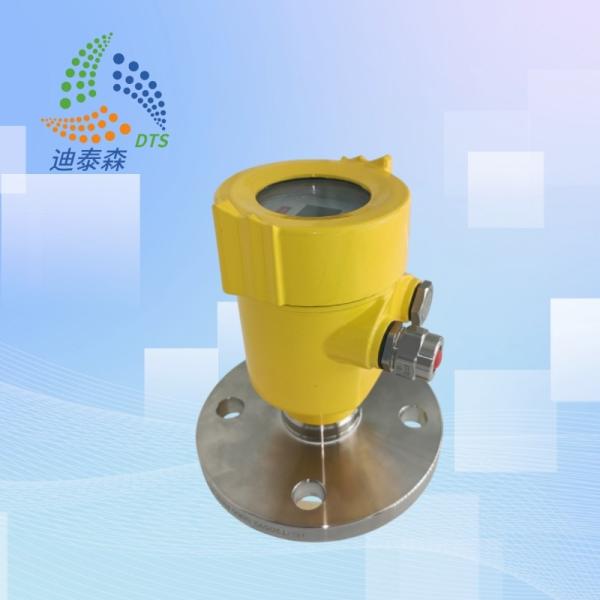

Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
Specifications
Brand Name :
DTS
Model Number :
DTS-RD-82
Certification :
CNEX
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000
Packaging Details :
Carton
Grade :
Industrial
Customized Support :
OEM, ODM
Model :
DTS-RD-82-C
Application :
Corrosive Liquid Solid
Measuring Range :
30m
Frequency :
80GHz
Accuracy :
±2mm
Resolution :
1mm
Process pressure :
（-0.1~0.1）MPa
Process Temperature :
-40℃~+120℃
Description

Flange Radar Level Sensor of Corrosive Liquid Solid High Precision Customized 80GHz Radar Level Meter Transmitter

Product Description:

The Non Contact Radar Level Transmitter can realize continuous level measurement of solids and liquids. It can ensure high precision and high stability of measurement under various working conditions. Easy to install, simple to operate and less maintenance, it is an ideal solution for level control in the production process.

Precision Water Level Sensor Non Contact For Corrosive Liquid Solid

Precision Water Level Sensor Non Contact For Corrosive Liquid Solid

Features:

  • 80GHz FMCW technology
    False echo suppression option
    Narrow beam, small blind zone and accurate measurement
    Unaffected by temperature fluctuations
    Resistant to dirt and buildup
    Measurement under vacuum and high pressure
    Small size, easy to use, less maintenance

Technical Parameters:

Model DTS-RD-82
Application Corrosive Liquid Solid
Measuring Range 30m
Frequency 80GHz
Accuracy ±2mm
Resolution 1mm
Process Temperature -40℃~+120℃
Process pressure (-0.1~0.1)MPa
Process Connection Thread G1½; Flange from DN50
Protection Class IP67
Signal output 4…20mA/HART; RS485/MODBUS
Connection Bluetooth/NB-iot/4G
Material Stainless Steel+PTFE
Power Supply Two Wires DC24±6V; Four Wires AC220V

Applications:

The 80G Radar Level Meter is an advanced microwave level sensor that has a measuring range of 0.15~120m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.

Packing and Shipping:

The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:

Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.

The package is shipped by air freight, usually with a carrier such as DHL or FedEx.

Precision Water Level Sensor Non Contact For Corrosive Liquid Solid
