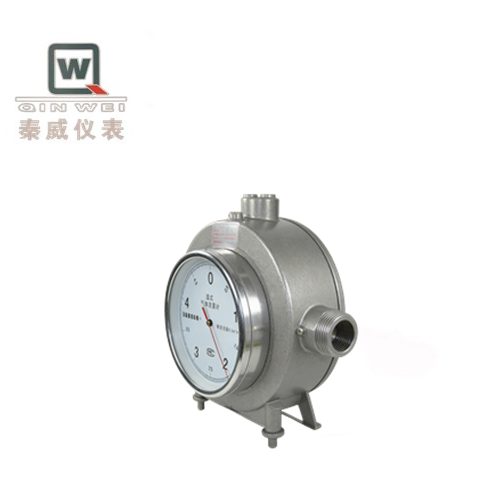

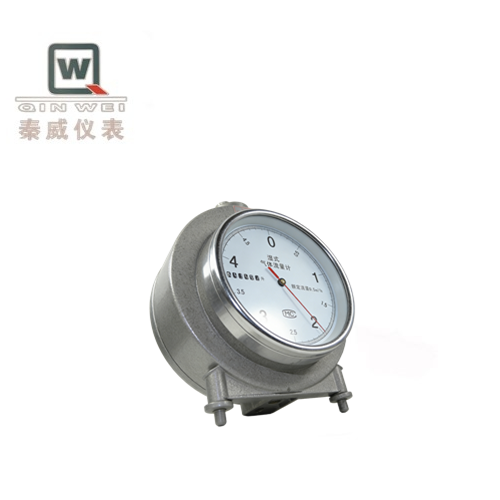

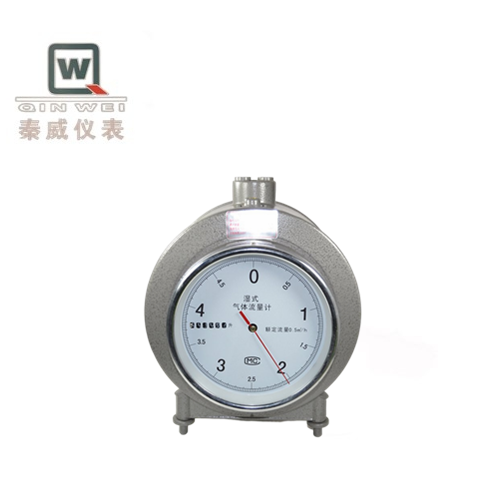

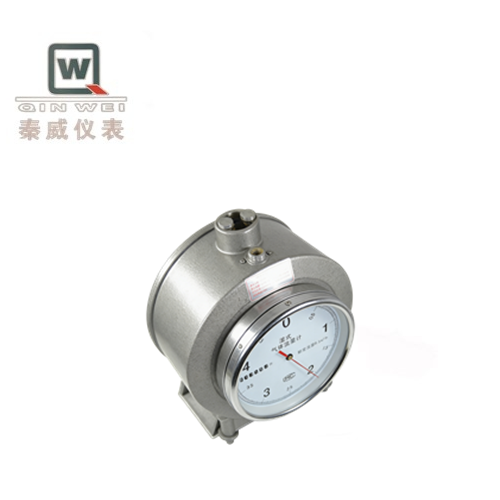

Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Precise Positive Displacement Flowmeter No Friction Wet Gas Measurement
Specifications
Operating Pressure :
Up to 40 bar
Fluid Compatibility :
Water, oil, chemicals, viscous fluids
Connection Type :
Flanged, Threaded, Tri-clamp
Accuracy :
±0.1% to ±0.5%
Installation Orientation :
Horizontal or vertical
Material :
Stainless steel / Aluminum / Cast iron
Output Signal :
Pulse, Analog (4-20mA), Digital
Display :
Optional LCD or LED display
Brand Name :
QINWEIYB
Model Number :
QWLZB-52
Place of Origin :
China
MOQ :
1Set
Price :
Negotiable
Payment Terms :
T/T,D/P,D/A,L/C
Supply Ability :
100PCS/Month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Operating Temperature :
-40°C to 150°C
Power Supply :
24V DC or battery powered
Name :
Wet Gas Flowmeter
Description

It Has Extremely High Precision And Is Known As The "Laboratory Standard" Wet Gas Meter.

A wet gas meter is a volumetric flowmeter that precisely measures the volume of gas based on the principle of liquid (water or oil) sealing by rotating a drum (rotating cylinder).

Advantages:

  1. Extremely high precision: Based on mechanical geometric volume, the precision can reach ±0.2% to ±0.5%, which is the ceiling of accuracy for gas flow meters and is often used as a standard meter.

  2. Direct measurement of working condition volume: The results are intuitive and no complex conversion is required.

  3. Insensitive to flow changes: Within the range from extremely low to rated flow, the accuracy remains consistent, making it suitable for pulsating flow.

  4. No friction from moving parts: The impeller is driven by buoyancy and floats in the liquid, resulting in minimal wear and a long service life.

  5. No external power supply required: Pure mechanical structure, reliable and safe.

Typical application scenarios

  1. Verification and calibration of gas flowmeters (the core of the core): National/Local Metrology Institutes, third-party calibration laboratories, large-scale instrument manufacturers.

  2. High-precision scientific experiments: Measurement of gas consumption in chemical reactions, respiratory metabolism experiments, environmental monitoring sampling volume measurement.

  3. Historical and educational purposes: As a classic instrument, it demonstrates the principle of volumetric flowmeters; it holds an important position in the history of metrology.

The wet gas meter is a "living legend" in the field of gas measurement. It achieves nearly absolute gas volume measurement through the simplest physical principle (liquid seal displacement) and the most precise mechanical manufacturing.
