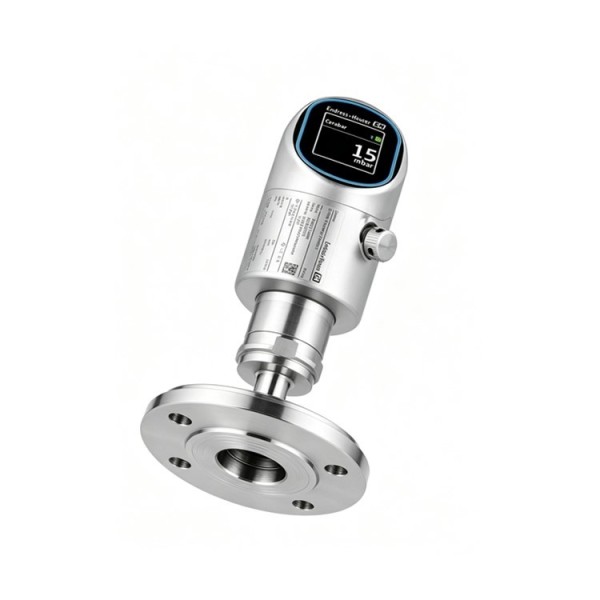

Product Advantages

• Ultra-compact and hassle-free installation: Approximately 30% smaller in size than the PMP50/PMP51, ideal for tight equipment skids or modules, saving valuable installation space.
• Hygienic "all-rounder": Dual certified by 3-A and EHEDG, fully welded design with no gaskets, IP69 protection, resistant to high-pressure cleaning and steam sterilization at 200°C.
• Simplified operation with wireless capabilities: Touchscreen interface combined with guided wizard enables quick setup in just 5 minutes; Bluetooth connectivity to the SmartBlue app allows remote monitoring and diagnostics without disassembly.
• TempC patented diaphragm: Minimal temperature effect, rapid accuracy recovery after CIP/SIP, ensuring excellent long-term stability.
• Heartbeat technology: Built-in self-diagnosis enables calibration without production downtime, continuously monitors diaphragm blockage and corrosion, reducing maintenance costs.

Technical Specifications

Measurement Principle

Piezoresistive measurement principle with metal measuring diaphragm

Application Areas

Gauge pressure, absolute pressure, level measurement, sanitary applications

Measuring Range

400 mbar... 100 bar

Reference measurement accuracy

Standard +0.1%, Platinum grade +0.075%

Explosion protection certification

Non-explosion-proof, intrinsically safe

OPL overvoltage limit

160 bar

Process temperature

-40...+130°C; not exceeding +200°C within 1 hour

Ambient temperature

-40... +85°C

Supply voltage

12... 30VDC

Output

4... 20 mA. 4... 20 mA HART. 4... 20 mAIO-Link

Process Connection

Threaded, Flanged, Sanitary Fittings

Calibration

5-point

Other Certifications

Material Certificate 3.1; Drinking Water Certification; Sanitary Certification, ≤0.38 μm, Electro-polished

Typical Applications

• Food and Beverage: Fermentation tanks, blending tanks, pipeline pressure/level monitoring, supporting CIP/SIP cleaning (up to 200°C).
• Pharmaceutical/Biotech: Sterile tanks, reactors, pressure and static pressure level measurement in purified water systems.
• Detergents/Fine Chemicals: Pressure monitoring for high-cleanliness, compact skid-mounted equipment.
• Others: Pressure measurement applications requiring 3-A/EHEDG sanitary certification and IP69 high-pressure wash protection.
