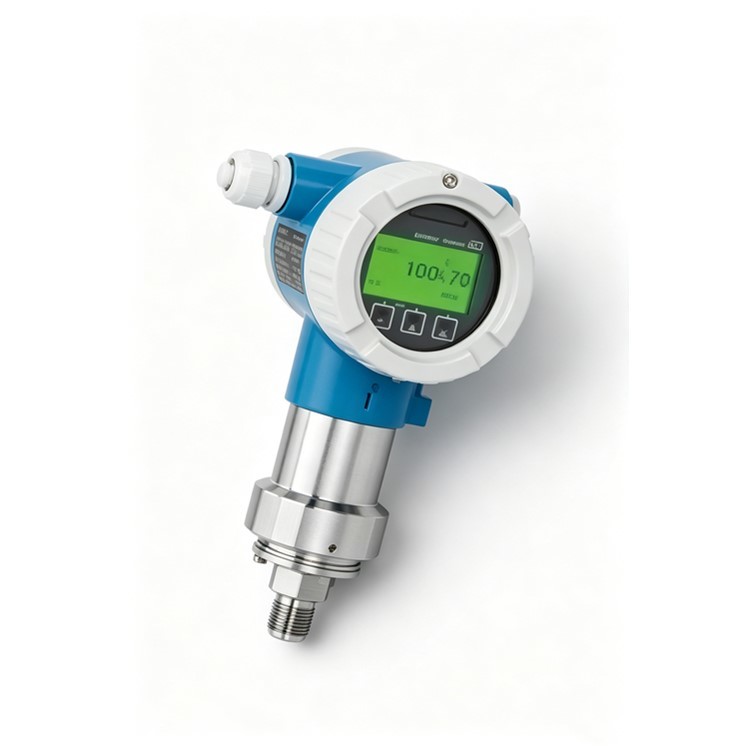

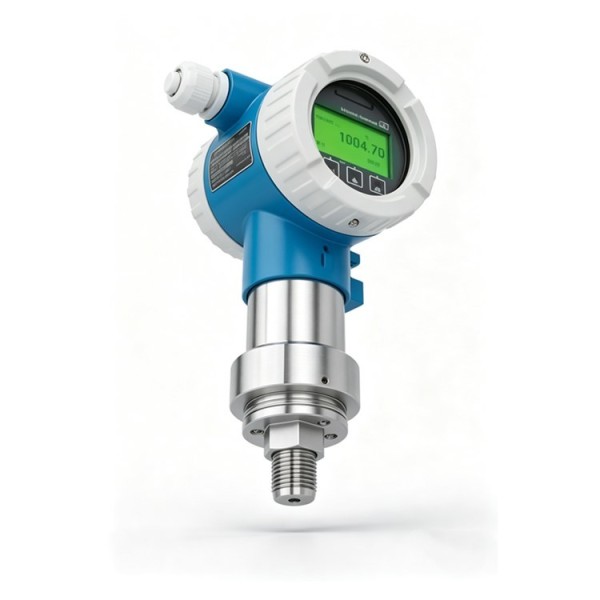

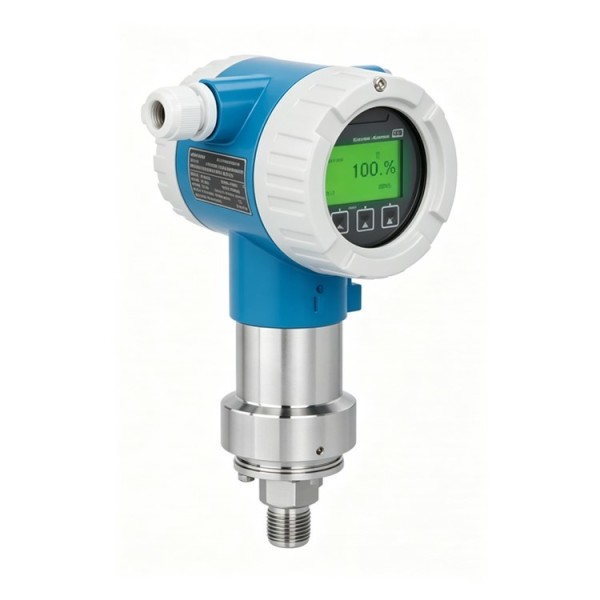

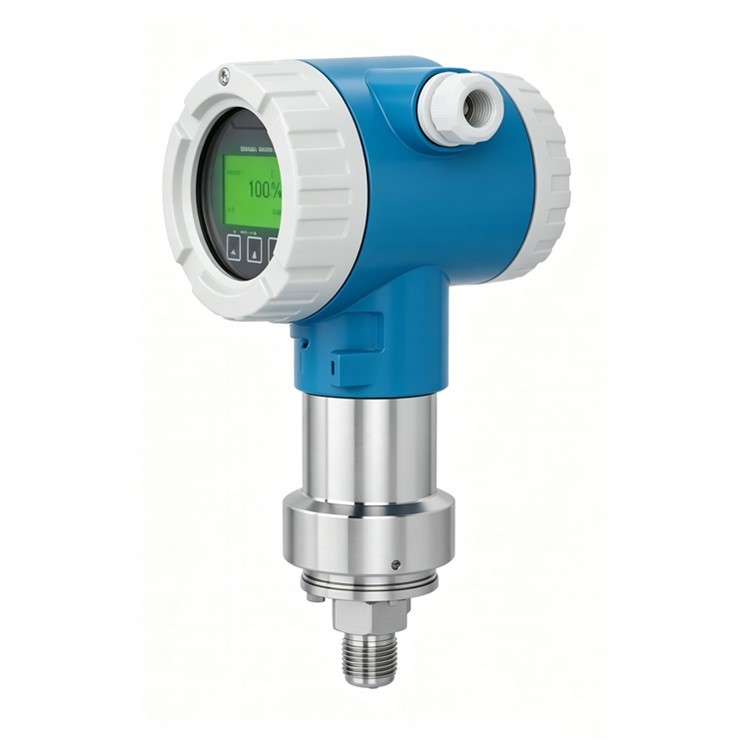

High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
High Precision Industrial Pressure Transmitter E+H PMC71B 4-20mA
Specifications
Price :
Negotiable
Delivery Time :
5-8 work days
Process temperature :
-40... +150°C
MOQ :
1Set
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Communication Method :
4-20mA HART
Brand Name :
Endress+Hauser
Model Number :
PMC71B
Supply Ability :
100PCS/Month
Maximum Range :
≤40 MPa
Process Temperature :
-40 to 125°C
Ingress Protection :
IP65
SIL Certification :
SIL 2 / SIL 3
Warranty :
1 year
Material :
316L
Customization Services :
OBM, ODM, OEM
Packaging Details :
Carton or wooden box
Description
Product Specifications
Ingress ProtectionIP65
Customization ServicesOBM, ODM, OEM
Brand NameEndress+Hauser
Maximum Range≤40 MPa
Process Temperature-40 to 125°C
Warranty1 year
TypePressure Transmitter
ModelPMP50
Material316L
Communication Method4-20mA HART
SIL CertificationSIL 2 / SIL 3
Measurement PrincipleCapacitive measurement principle with ceramic sensing diaphragm
ApplicationGauge pressure, absolute pressure, liquid level
Measuring Range100 mbar.... 40 bar
Reference measurement accuracyStandard +0.05%, Platinum grade +0.025%
Explosion protection certificationNon-explosion-proof, intrinsically safe, explosion-proof
OPL overpressure limit60 bar
Process temperature-40... +150°C
Ambient temperatureIntegrated unit: -40...+85°C, Separated housing: -20... +60°C
Supply voltage10.5...35 VDC, intrinsically safe: 10.5... 30VDC
Output4... 20 mA HART
PROFINET with
Ethernet-APL
PROFIBUS PA
Process ConnectionThreaded, Flanged
Calibration5-point / 10-point
Additional Certifications3.1/NACE Material Certificate; SIL: Drinking Water Certification; Marine Classification Certification
HousingOptional Split Housing
Bluetooth OperationYes
Features
  • Easy debugging guidance through a proven intuitive user interface
  • Use of proven software and battery measurement components
  • Flexible write protection via hardware and/or software wizards
  • Pre-assembled valve cores (pressure and leakage tested) for faster installation
Advantages
  • Pressure measurement range: up to 400 bar (6,000 psi)
  • Process temperature: up to 400°C (752°F) with diaphragm seal
  • Accuracy: up to ±0.055%
